Moeller LS4/S11-1/I/ZB Safety Position Switch
Used
In stock1 unitReady to ship
Safety Position Switch
A robust industrial safety switch designed for precise monitoring, forced-opening safety contacts, and reliable operation in harsh environments with IP65 protection.AutomationComponentDeviceEatonforcedIndustrialInterlockIP65LS4LS4/S11-1/I/ZBMachineMoelleropeningPositionSafetySeriesSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

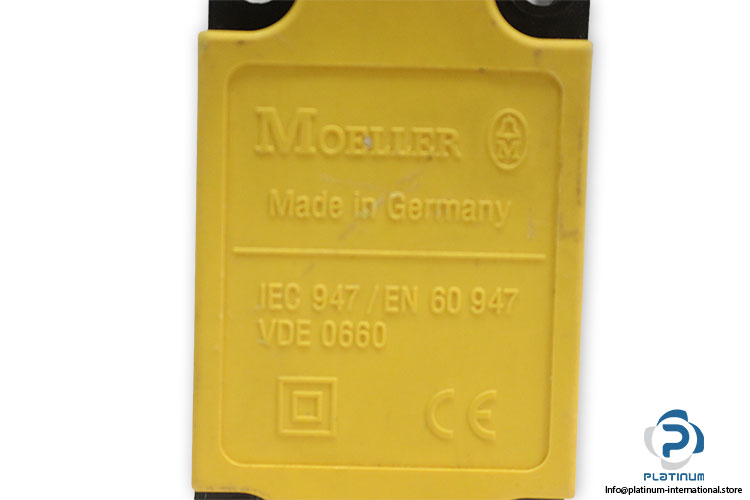

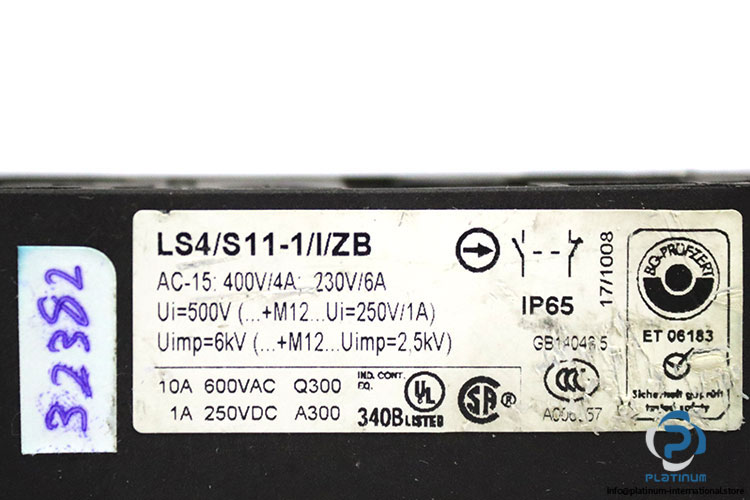

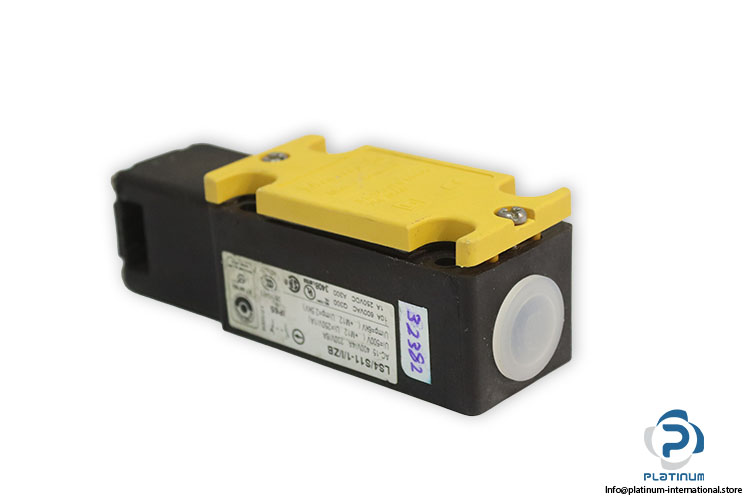

Eaton Moeller LS4/S11-1/I/ZB Safety Position Switch
A high-reliability safety position switch designed for industrial machinery and safety interlocking systems. Built with durable insulated materials, precise switching accuracy, and IP65 protection, this switch is suitable for demanding safety applications across automated environments. Manufacturer: Eaton Moeller
Type: Safety Position Switch
Model: LS4/S11-1/I/ZB
Catalog No.: 106857
Series: LS4
| Rated Conditional Short-Circuit Current (Iq) | 1 kA |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Operational Current (Ie) at AC-15, 220“240 V | 6 A |
| Rated Operational Current (Ie) at AC-15, 24 V | 10 A |
| Electric Connection Type | Cable entry metrical |
| Enclosure Material | Insulated material, Plastic |
| Features | Forced opening |
| Switch Function Type | Slow-action switch |
| Connection Type | Screw terminal |
| Degree of Protection | IP65 |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V AC |
| Repetition Accuracy | 0.02 mm (Contacts/switching capacity) |
| Suitable For | Safety functions |
| Ambient Operating Temperature Min | -25 °C |
| Ambient Operating Temperature Max | 70 °C |
| Length/Depth | 42 mm |
| Height | 130 mm |
| Width | 40 mm |
| Standard | IEC 947 / EN 60 947, VDE 0660 |
