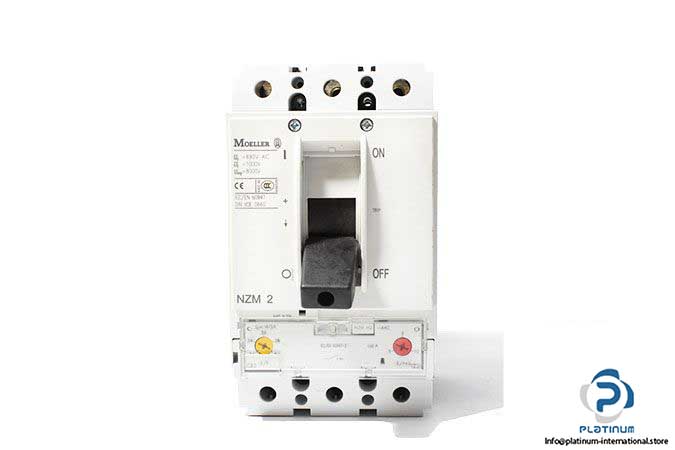

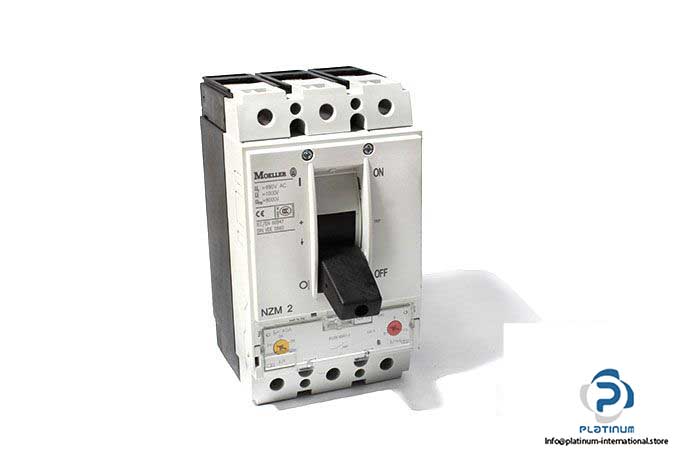

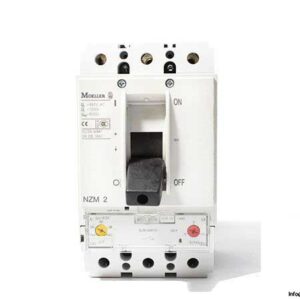

Moeller NZMH2-A40 Circuit Breaker

Manufacturer: EATON Moeller

Type: Circuit Breaker

Construction Size: NZM2

Part No.: NZMH2-A40

Article No.: 259095

Number of Poles: 3

Rated Current (I_n): 40 A

Setting Range (I_r): 32 … 40 A

Max Short-Circuit Releases (I_rm): 320 … 400 A

Short-Circuit Releases Non-Delayed (I_i): 8-10

Breaking Capacity (I_cu):

150 kA 240 V AC

150 kA 400/415 V AC

20 kA 690 V AC

Rated Operational Voltage (U_e): 690 V AC / 750 V DC

Rated Insulation Voltage (U_i): 1000 V

Rated Surge Voltage (U_imp):

Main Contacts: 8 kV

Auxiliary Contacts: 6 kV

Operating Frequency: 50/60 Hz

Dimensions (W x D x H): 105 X 149 X 184 mm

Protective Function: System And Cable Protection

Installation Type: Fixed

Release System: Thermomagnetic Release

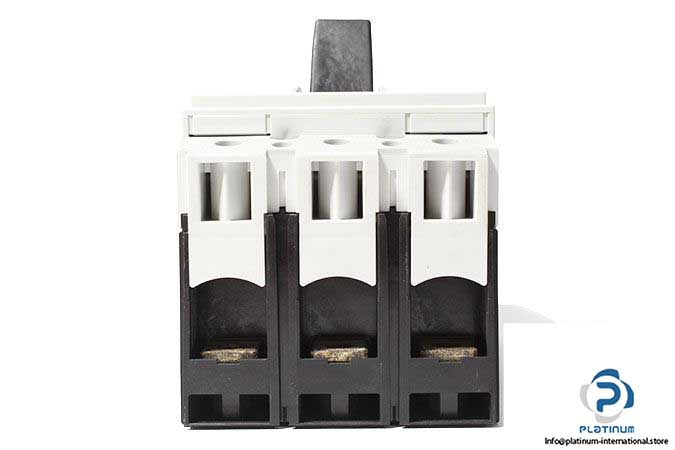

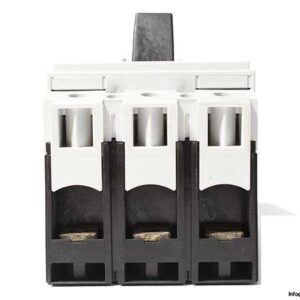

Standard Equipment: Screw Connection

Standard: IEC/EN 60947 / DIN VDE 0660

Protection Class: IP20

Operation Temperature: -25 … 70 °C
