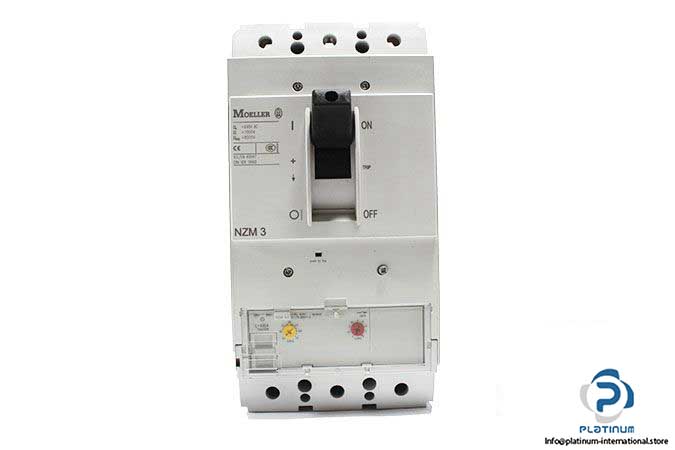

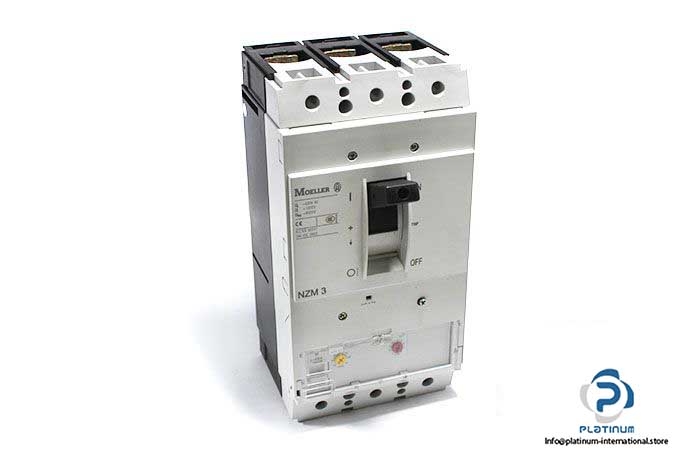

Moeller NZMN3-AE630 Circuit Breaker

Manufacturer: Eaton Moeller

Type: Circuit Breaker

Construction Size: NZM3

Model: NZMN3-AE630

Part No.: 0004358788

Number of Poles: 3

Rated Current (I_n): 630 A

Setting Range (I_r): 315 … 630 A

Max Short-Circuit Releases (I_rm): 5040 A

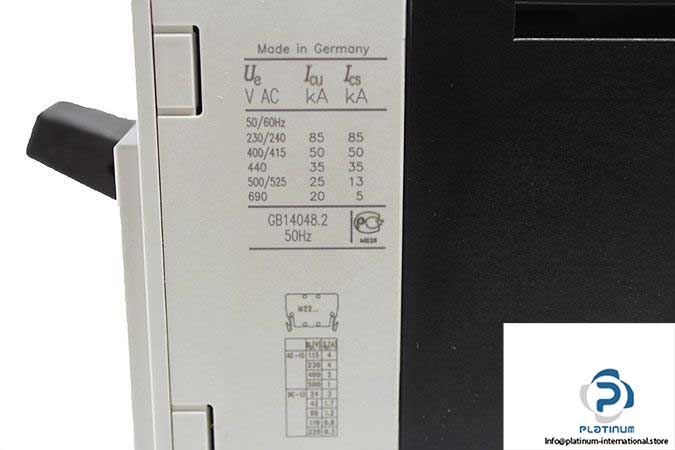

Breaking Capacity (I_cu):

85 kA 240 V AC

50 kA 400/415 V AC

20 kA 690 V AC

Rated Operational Voltage (U_e): 690 V AC

Rated Insulation Voltage (U_i): 1000 V

Rated Surge Voltage (U_imp):

Main Contacts: 8 kV

Auxiliary Contacts: 6 kV

Operating Frequency: 50/60 Hz

Dimensions (H x W x D): 275 X 140 X 166 mm

Installation Type: Fixed

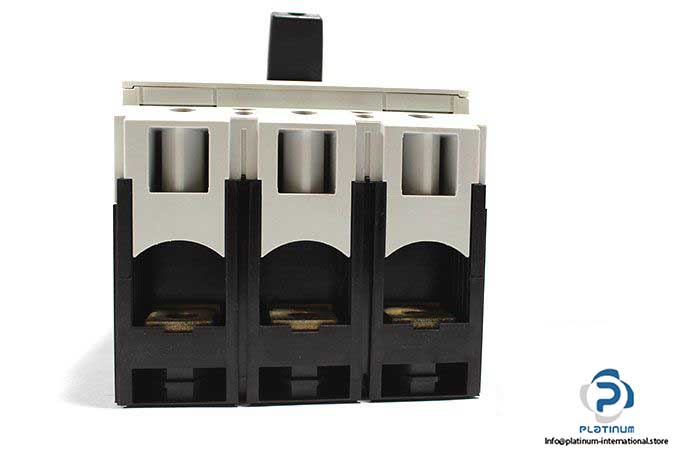

Standard Equipment: Screw Connection

Protection Class: IP20

Operation Temperature: -25 … 70 °C

Weight: 7.27 kg
