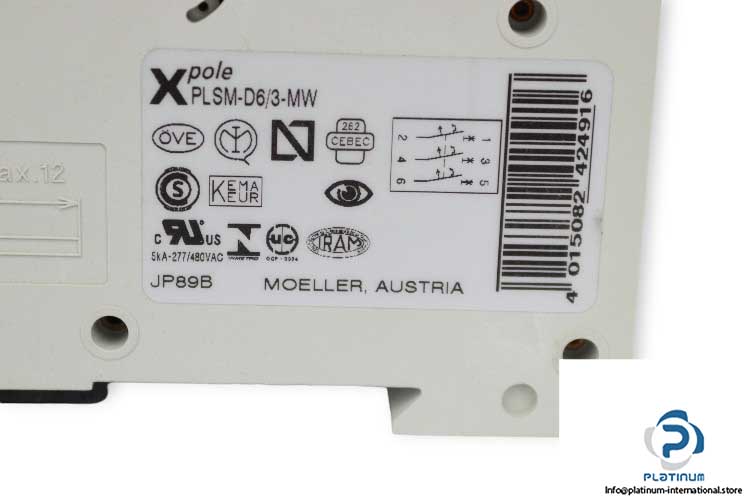

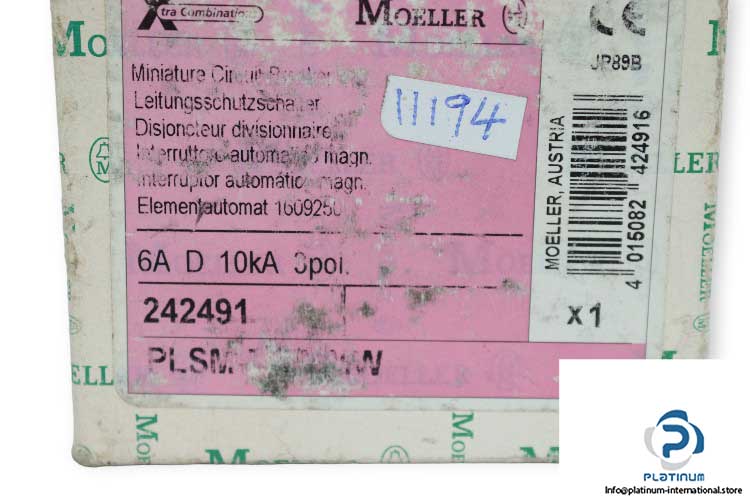

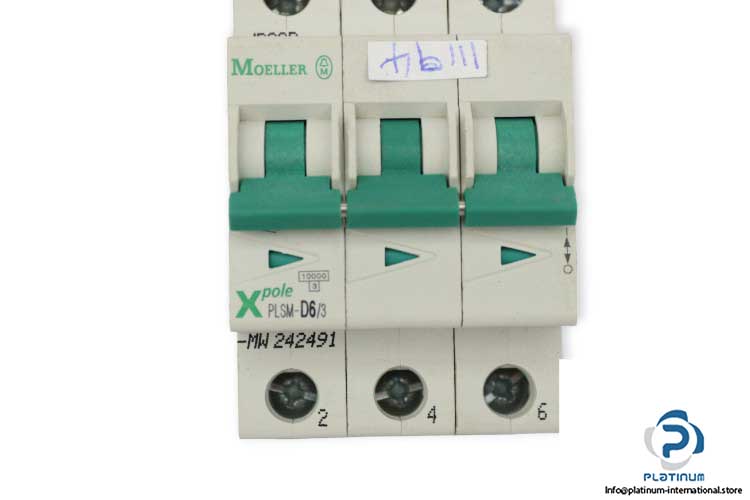

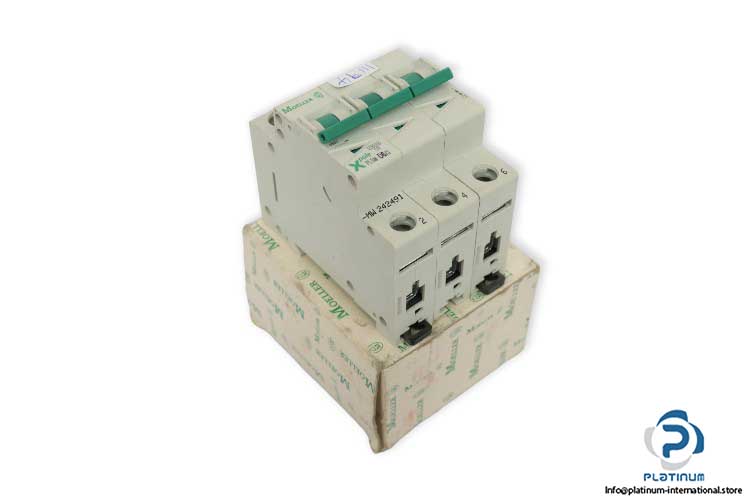

Moeller PLSM-D6/3-MW Miniature Circuit Breaker

Manufacturer: Moeller / Eaton
Type: Miniature circuit breaker
Model: PLSM-D6/3-MW
Part No.: 242491

Application: Switchgear for residential and commercial applications xPole – Switchgear for residential and commercial applications
Rated operational voltage (Ue):  max 400 V AC
Rated insulation voltage (Ui): 440 V AC
Rated impulse withstand voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Rated Current (In): 6 A
Release characteristic: D
Rated switching capacity (IEC/EN 60898-1): 10 kA
Pollution degree: 2
Power loss: 3.6 W
Degree of protection: IP20
Ambient operating temperature: -25 … 75°C
Number of poles: Three-pole
Dimensions: 80 x 75 x 52.5 mm
