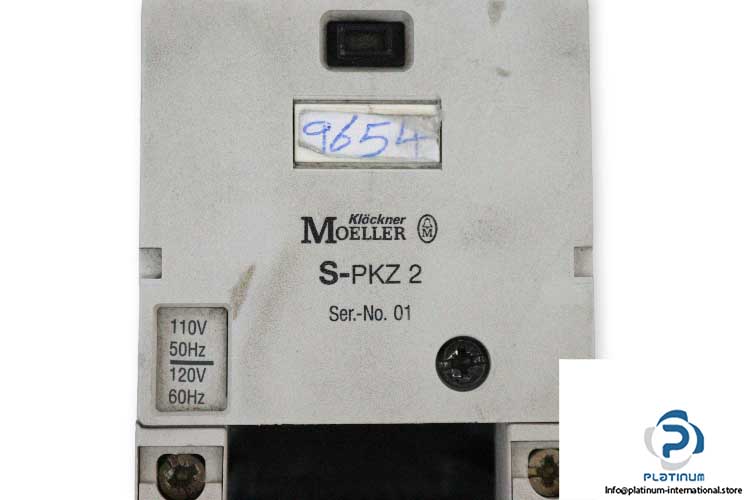

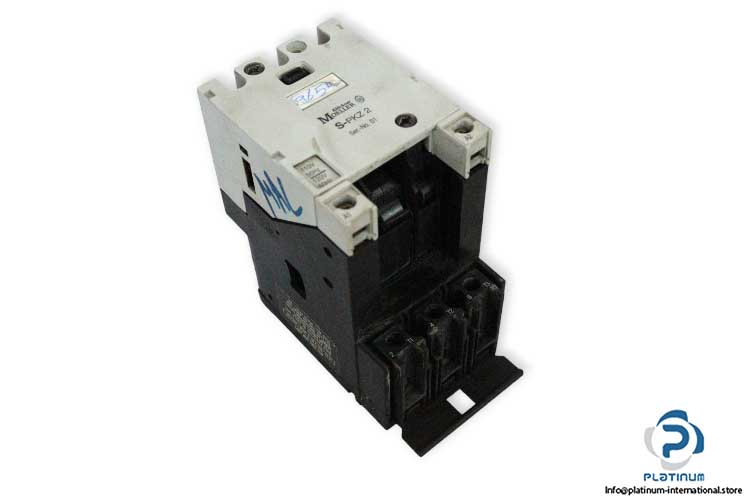

Moeller S-PKZ 2 High-Capacity Contact Module

Manufacturer: Moeller
Type: High-Capacity Contact Module
Model: SPKZ2

Coil Voltage: 110/120 V
Frequency: 50/60 Hz
Rated impulse with stand voltage Uimp: 600 V
Thermal, Rated current Ith, Ie: 40 A

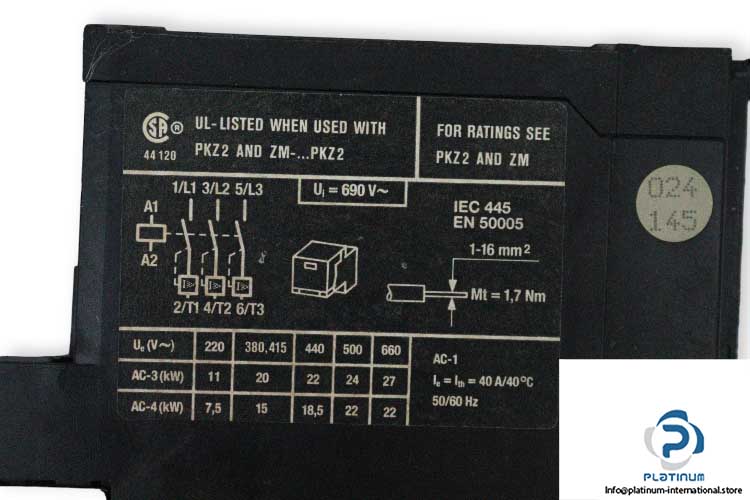

Switching capacity:
AC-3: 220/230/240 V AC,11 kW-380/400/415 V AC,20 kW-440 V AC,22 Kw-500 V AC,24 Kw-660/690 V AC,27 Kw
AC-4: 220/230/240 V AC,7.5 kW-380/400/415 V AC,15 kW-440 V AC,18.5 Kw-500 V AC,22 Kw-660/690 V AC,22 kW
Contact: 1 Normally open,1 Normally closed
