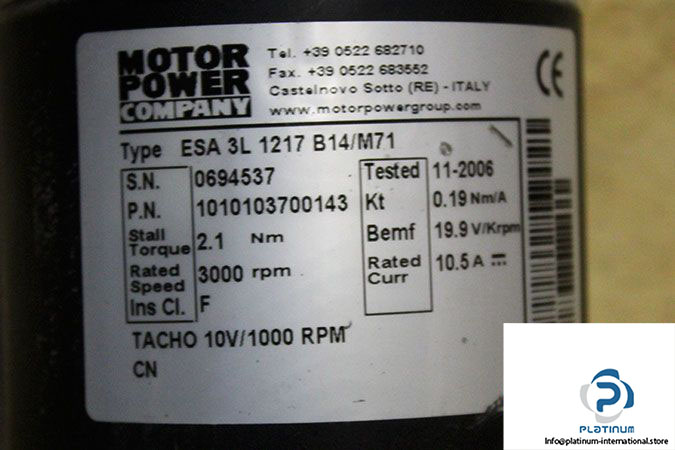

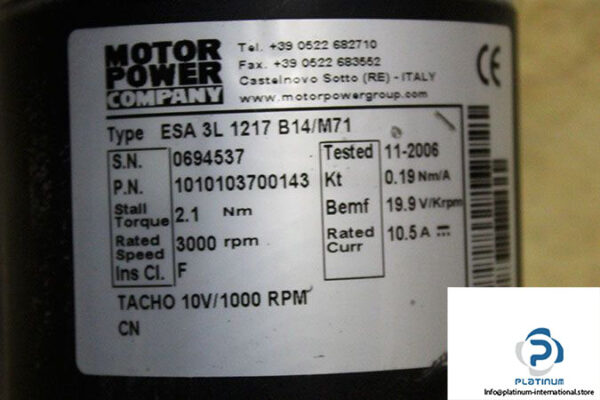

Motor Power ESA 3L 1217 B14/M71 Servo Motor

Manufacturer: Motor Power

Type: Servo Motor

Model: ESA 3L 1217 B14/M71

Part No: 1010103700143



Voltage Constant: 19.9 V/Krpm

Rated Current: 10.5 A

Max. Speed: 4000 min^-1

Rated Speed: 3000 min^-1

Rated Power: 500 W

Resistance: 0.32 Ohm

Stall Torque: 2 Nm

Torque Constant: 0.19 Nm/A

Insulation Class: F

Weight: 7.62 kg
