MT TFP71B/4 PCA Brake Motor
Used
In stock2 unitsReady to ship
Motor Brake
MT TFP71B/4 PCA motor brake with 0.37 kW output, IP55 protection, and ATEX II 3 GD certification for safe operation in hazardous industrial environments. Ideal for conveyors, lifting systems, and continuous duty applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

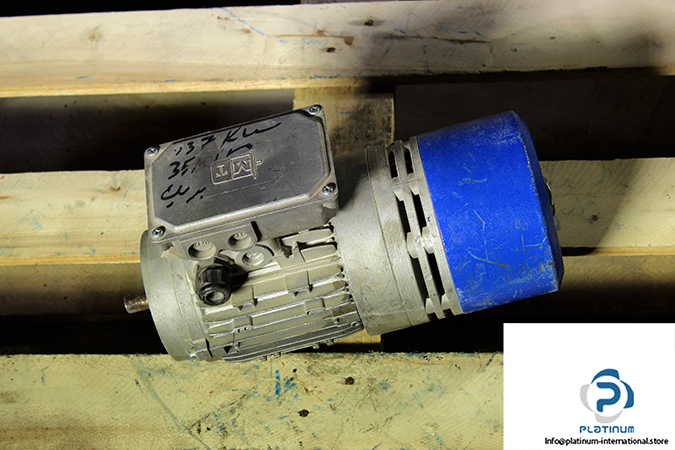

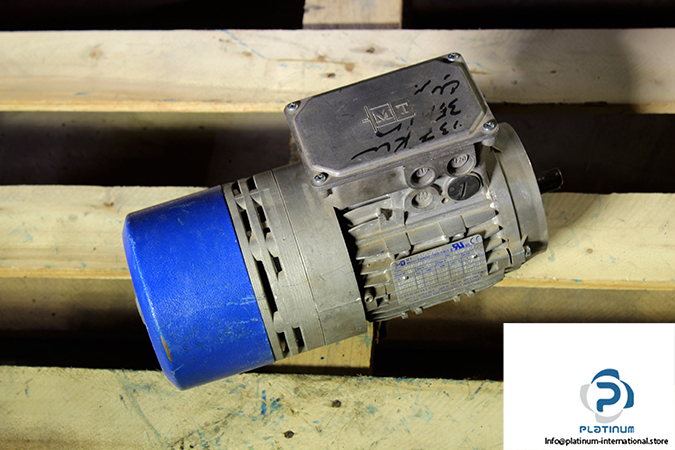

MT TFP71B/4 PCA Motor Brake
The MT TFP71B/4 PCA motor brake is engineered for reliable controlled stopping and continuous industrial operation. Designed for both 50 Hz and 60 Hz applications, it delivers stable performance with explosion protection certification and IP55 enclosure protection.
Manufacturer: MT
Type: Motor Brake
Model: TFP71B/4 PCA
Ref No.: A48628287

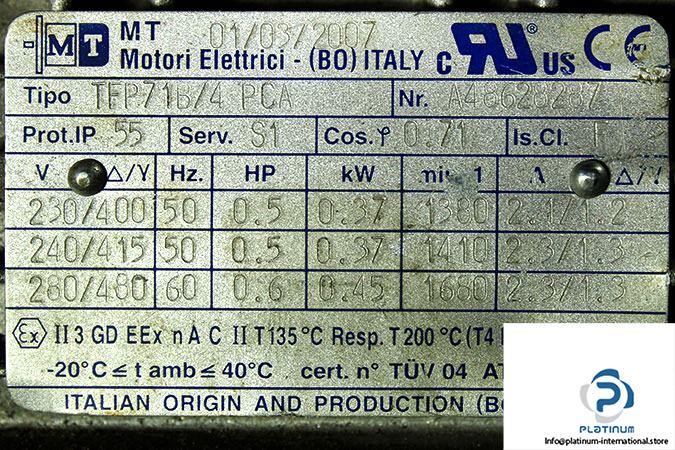

Electrical Data “ 50 Hz Operation
Electrical Data “ 60 Hz Operation
Performance Characteristics
ATEX / Explosion Protection Data
Recommended for conveyors, lifting systems, and hazardous industrial environments requiring reliable braking performance.
Please contact us via Ask for assistance with any inquiries.
| Voltage (Δ/Y) | 230 / 400 V |
| Frequency | 50 Hz |
| Power | 0.5 HP |
| Output Power | 0.37 kW |
| Speed | 1380 rpm |
| Current (Δ/Y) | 2.1 / 1.2 A |
| Voltage (Δ/Y) | 240 / 415 V |
| Frequency | 50 Hz |
| Power | 0.5 HP |
| Output Power | 0.37 kW |
| Speed | 1410 rpm |
| Current (Δ/Y) | 2.3 / 1.3 A |
| Voltage (Δ/Y) | 280 / 480 V |
| Frequency | 60 Hz |
| Power | 0.6 HP |
| Output Power | 0.45 kW |
| Speed | 1680 rpm |
| Current (Δ/Y) | 2.3 / 1.3 A |
| Power Factor (Cos φ) | 0.71 |
| Duty Type | S1 (Continuous Duty) |
| Insulation Class | F |
| Protection Degree | IP55 |
| ATEX Classification | II 3 GD |
| Explosion Protection Marking | EEx nA II |
| Temperature Class | 135°C |
| Ambient Temperature Range | -20 to +40 °C |
| Connection | Terminal box (top mounted) |
