MT TFP71B/4 PCA Motor Brake With Output Flange

In stock1 unitReady to ship

Motor Brake

MT TFP71B/4 PCA motor brake with ATEX II 3 GD certification, IP55 protection, 0.37 kW output, and continuous S1 duty operation for industrial applications. Recommended for hazardous-area conveyors, lifting systems, and industrial machinery requiring certified explosion protection.

Manufacturer
MT
SKU
1090424
Category
Others
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

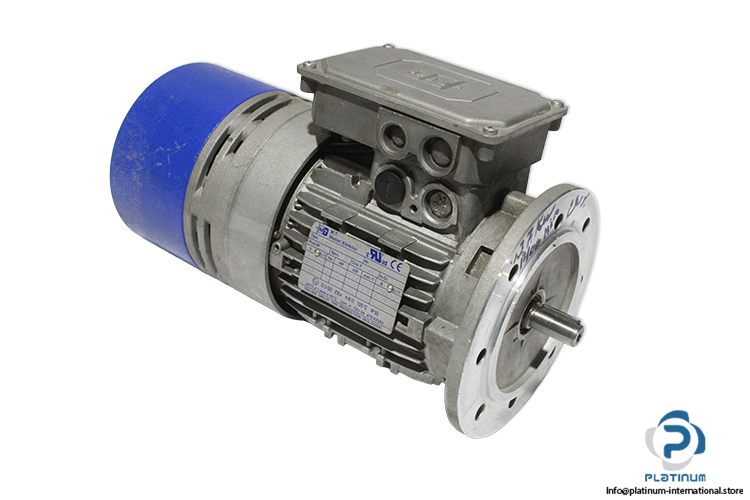

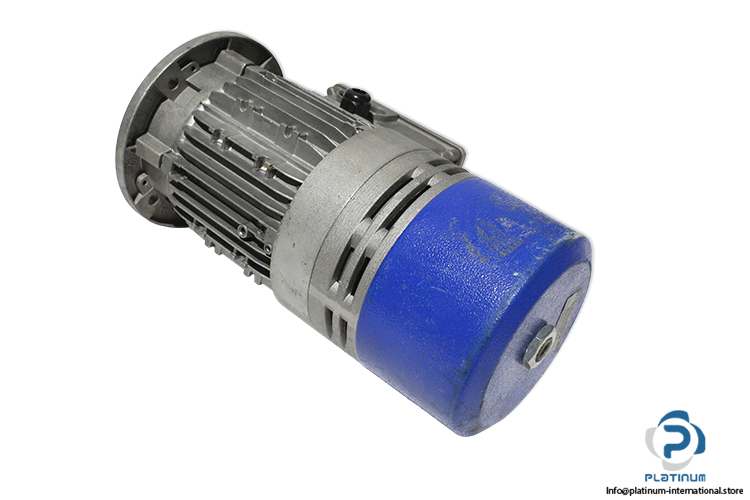

MT TFP71B/4 PCA Motor Brake

The MT TFP71B/4 PCA motor brake is a high-performance industrial braking motor designed for continuous-duty operation in demanding environments, including ATEX-certified hazardous areas.

Manufacturer: MT

Type: Motor Brake

Model: TFP71B/4 PCA

Ref No.: A48558333

Electrical Data “ 50 Hz Operation

Electrical Data “ 60 Hz Operation

Performance Characteristics

ATEX / Explosion Protection Data

Suitable for industrial lifting systems, conveyors, and equipment operating in explosive atmospheres requiring certified protection and reliable braking performance.

Please contact us via Ask for assistance with any inquiries.

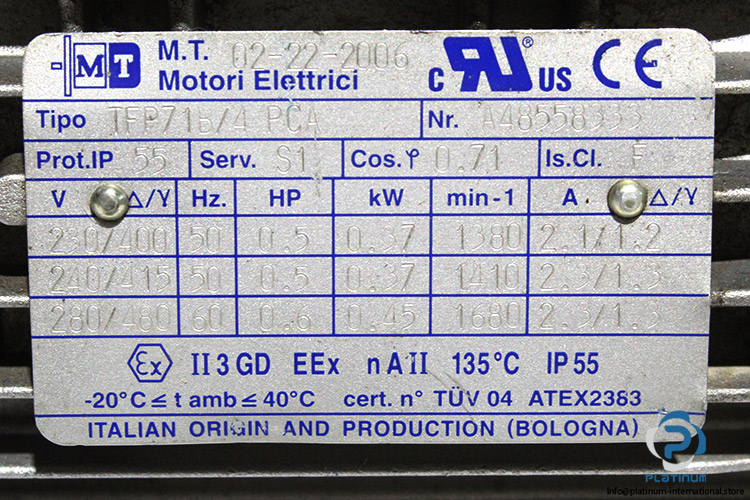

Voltage (Δ/Y)230 / 400 V
Frequency50 Hz
Power0.5 HP
Output Power0.37 kW
Speed1380 rpm
Current (Δ/Y)2.1 / 1.2 A
Voltage (Δ/Y)240 / 415 V
Frequency50 Hz
Power0.5 HP
Output Power0.37 kW
Speed1410 rpm
Current (Δ/Y)2.3 / 1.3 A
Voltage (Δ/Y)280 / 480 V
Frequency60 Hz
Power0.6 HP
Output Power0.45 kW
Speed1680 rpm
Current (Δ/Y)2.3 / 1.3 A
Power Factor (Cos φ)0.71
Duty TypeS1 (Continuous Duty)
Insulation ClassF
Protection DegreeIP55
ATEX ClassificationII 3 GD
Explosion Protection MarkingEEx nA II
Temperature Class135°C
Ambient Temperature Range-20 to +40 °C
ConnectionTerminal Box (Top Mounted)
Certification NumberTUV 04 ATEX 2383

You May Also Need

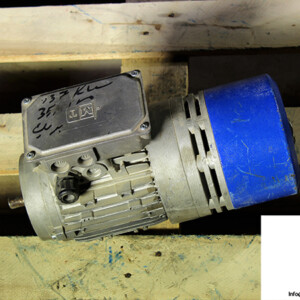

MT TFP71B/4 PCA Brake Motor
Used

MT

MT TFP71B/4 PCA Brake Motor

SKU: 1015157

Qty: 2

Available through quotation

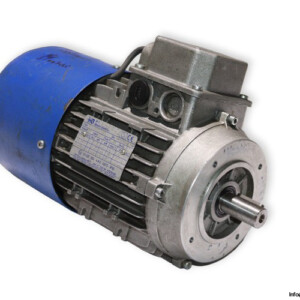

MT TF80A/4CC10NM Brake Motor
Used

MT

MT TF80A/4CC10NM Brake Motor

SKU: 1015727

Qty: 1

Available through quotation
MT TFP90S/4 PCA Brake Motor
Used

MT

MT TFP90S/4 PCA Brake Motor

SKU: 1015692

Qty: 1

Available through quotation
MT TFP71B/4 PCA Brake Motor
Used

MT

MT TFP71B/4 PCA Brake Motor

SKU: 1015157

Qty: 2

Available through quotation
MT TF100A/2 CA Brake Motor
Used

MT

MT TF100A/2 CA Brake Motor

SKU: 1015758

Qty: 2

Available through quotation

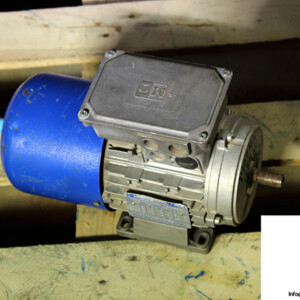

MT TF71B/4 CA Brake Motor
