Murr 50085 Opto-Coupler Module
Used
In stock1 unitReady to ship
Opto-Coupler Module
The Murr 50085 opto-coupler module offers reliable signal isolation with 10-53V DC input, 4-53V DC output, LED red status indication, and a compact plastic housing.10-53V50085CompactCouplerHousingIndustrialInputisolationLEDModuleMurrOpto-CouplerPlasticSignalStatus
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

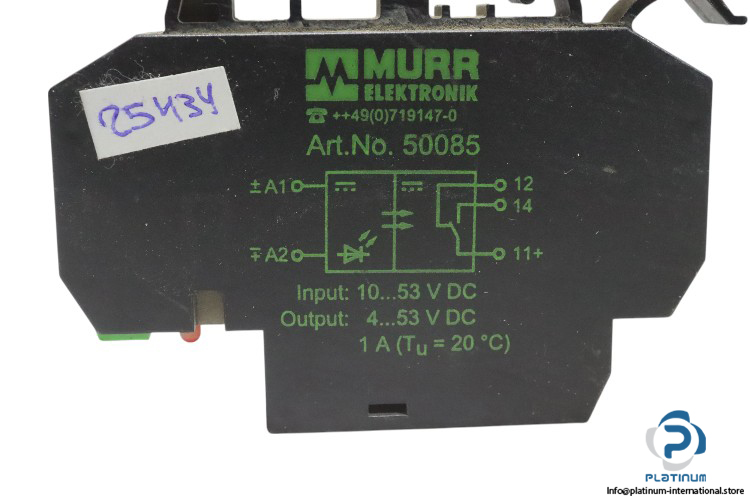

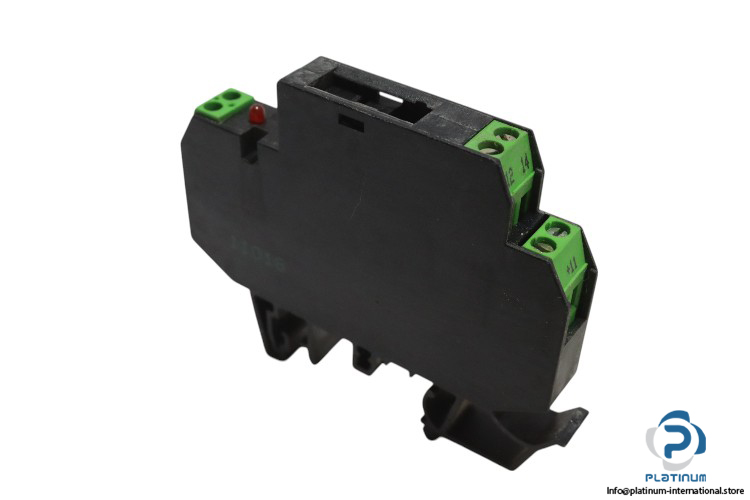

Murr 50085 Opto-Coupler Module
The Murr 50085 Opto-Coupler Module provides reliable galvanic isolation between input and output signals in industrial automation systems. Its compact design, wide input/output voltage range, and LED status indication make it ideal for secure and efficient signal transmission.
Manufacturer: Murr
Type: Opto-Coupler Module
Model: 50085
| Input Voltage | 10-53V DC |
| Output Voltage | 4-53V DC |
| Input Current | 10 mA |
| Status Indication | LED red |
| Rated Surge Voltage | 2.5 kV |
| Material Housing | Plastic |
| Color Housing | Black |
| Operating Temperature | -20 to 60 °C |
| Dimensions (H x W x D) | 12 x 82 x 68 mm |
