Murr 7000-08351-0000000 Connector
New
In stock42 unitsReady to ship

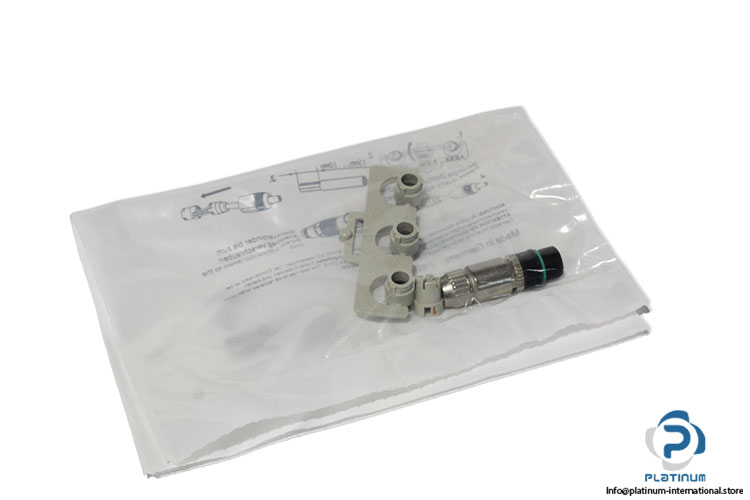

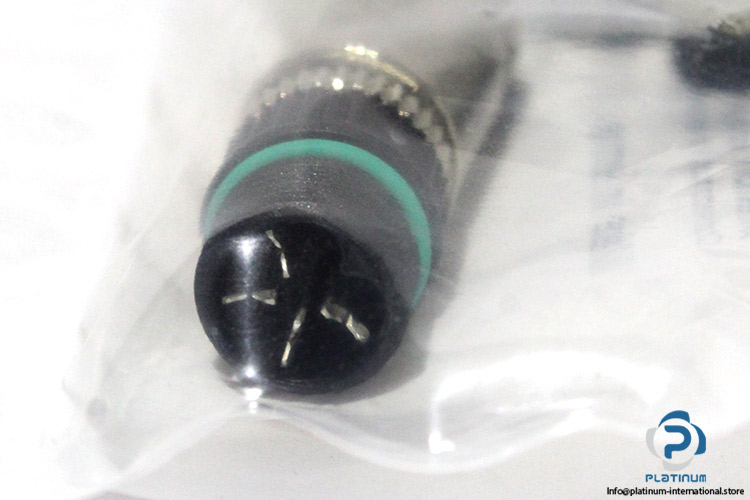

M8 Male Connector Murr Elektronik M8 male connector with 4-pole A-coded configuration, IDC connection and straight cable outlet, rated up to 32 V AC/DC and 4 A per contact.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

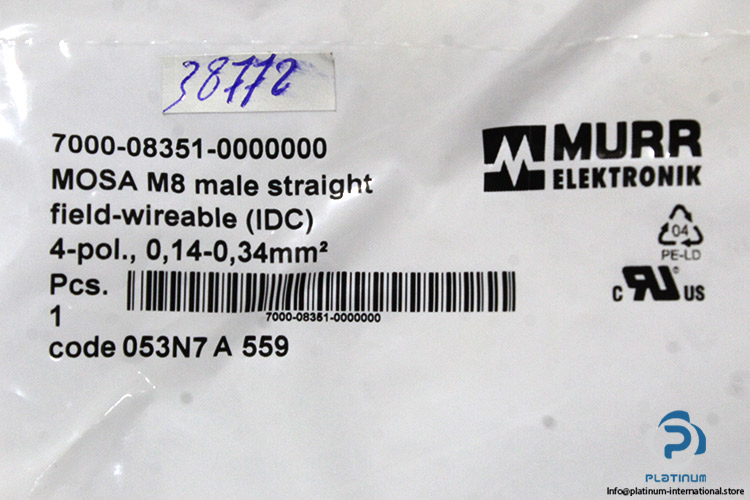

| Art. No. | 7000-08351-0000000 |
| Code | 053N7 A 559 |
| Designation | MSHL0-AC-T MOSA 0,14-0,34qmm |
| Electrical Ratings | Maximum 32V AC/DC, up to 4A per contact |
| Connection Type | Cut clamps IDC |
| No. of Pins | 4-pole, A-coded |
| Mounting set | M8 x 1 |
| Wire Size | 0.14 to 0.34 mm² (Approx. 22 to 26 AWG) |
| Cable outlet | straight |
| Operating Temperature | -25 to 85°C |
| Height | 40,8 mm |
| Width | 11,5 mm |
| Depth | 11,5 mm |
| Certificate | cURus |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098344 |
| Weight | 0,01 |
