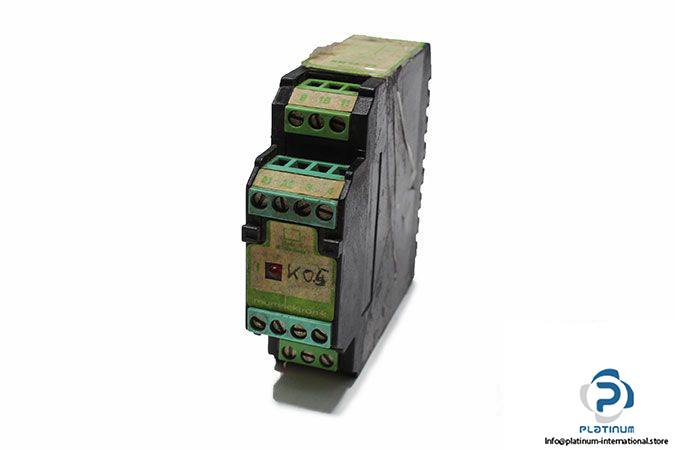

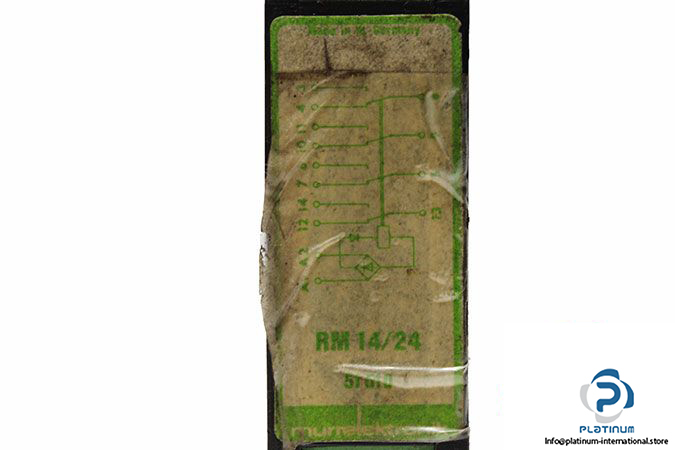

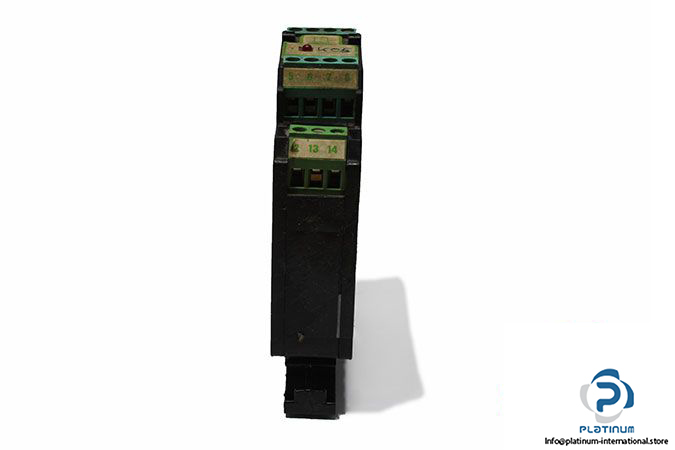

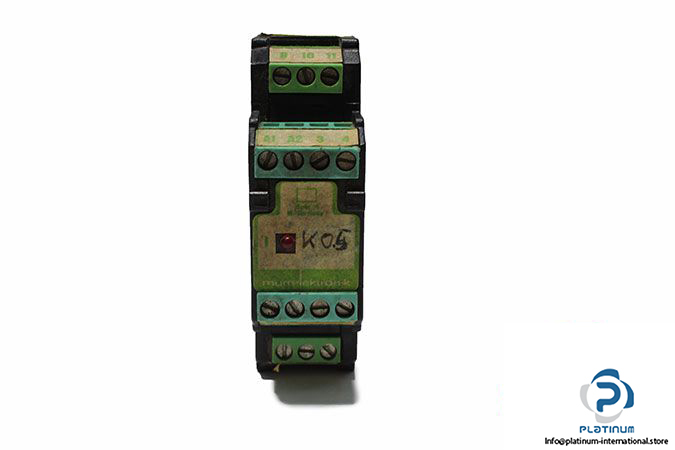

Murrelektronik RM 14/24 Output Relay

Manufacturer: MURRELEKTRONIK

Type: Output Relay

Model: RM 14/24

Part No.: 51510

Input Voltage: 24 V AC/DC

Current: 20 mA

LED Display: LED (red)

Output:

Switching Voltage: max. 250 V AC/DC

Switching Current: max. 1,76A

Min. Load Current: 0.1 mA

Breaking Capacity (Voltage Dependent): max. 125 VA/60 W

Switching Frequency: max. 0.1 Hz (with load)

Temperature Range: -20 … +50 °C

Dimensions: 22.5 X 102 X 75 mm

Weight: 0.13 Kg
