Myung Sung Electric MS180P1 Speed Control BOX

Manufacturer: MYUNG SUNG ELECTRIC

Type: SPEED CONTROL BOX

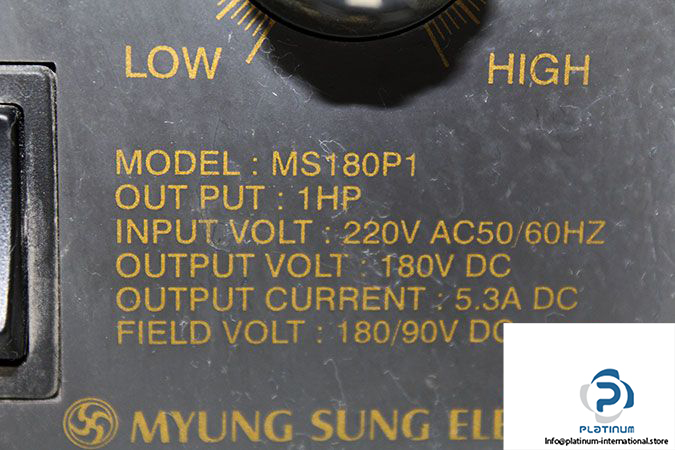

Model: MS180P1

Application: Used to control the speed of DC motors in the conveyor

Input voltage: 220 V AC

Output voltage: 180 V DC

Output current: 5.3 A DC

Output power: 746 watt ( 1 HP )

Speed range: 0 … 2000 RPM

Dimensions ( Length x width x Height ): 180 mm x 97 mm x 84 mm

Field Voltage: 90 V

Frequency: 50 / 60 Hz

Weight: 0.94 kg
