Nachi 6006ZZE C3 Deep Groove Ball Bearing
New
In stock82 unitsReady to ship
Deep Groove Ball Bearing
Nachi 6006 ZZE C3 deep groove ball bearing with C3 internal clearance, double steel shields, and high load capacity for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

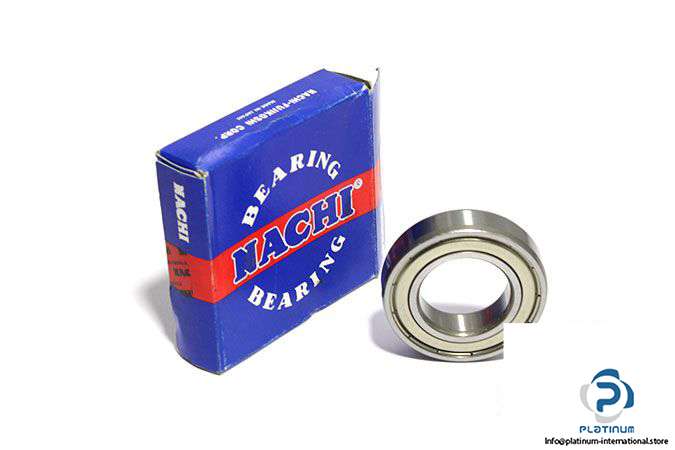

Nachi 6006 ZZE C3 Deep Groove Ball Bearing
The Nachi 6006 ZZE C3 is a deep groove ball bearing designed for smooth rotation, high durability, and stable performance in industrial and mechanical applications.
Manufacturer: Nachi
Type: Deep Groove Ball Bearing

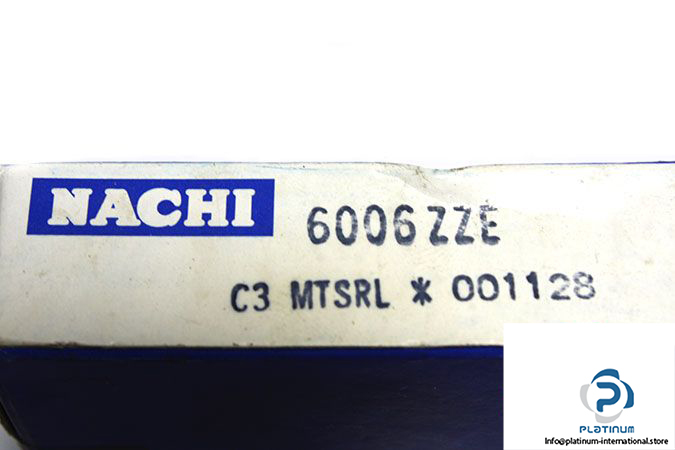

Model: 6006 ZZE C3
For optimal system performance, this bearing can be used alongside precision Servo Motors and industrial Sensors, all available from Platinum International Company for Industrial Technologies.
Please contact us via Ask for assistance with any inquiries.

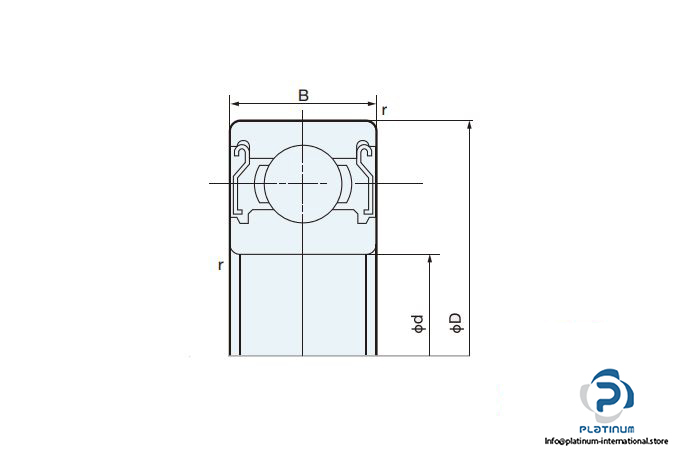

| Bore Diameter (d) | 30 mm |
| Outer Diameter (D) | 55 mm |
| Width (B) | 13 mm |
| Minimum Chamfer Dimension (r min) | 1 mm |
| Dynamic Load Rating (Cr) | 13,200 N |
| Static Load Rating (C0r) | 8,300 N |
| Limiting Speed | 13,000 rpm |
| Internal Clearance | C3 |
| Seal Type | ZZE “ Shielded on both sides with pressed steel shields |
