Nachi UCF 204 Square Flange Ball Bearing Unit
New
In stock1 unitReady to ship
Square Flanged Bearing Unit
Nachi UCF204 square flanged ball bearing unit with UC204 insert, 20 mm bore, cast iron housing, and set screw locking for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

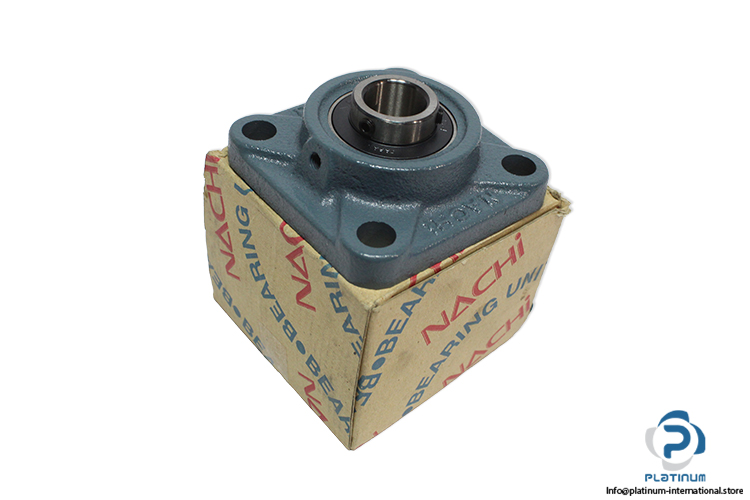

Nachi UCF204 Square Flanged Ball Bearing Unit
The Nachi UCF204 is a square flanged ball bearing unit designed to provide stable shaft support and reliable performance in industrial applications. It features a robust cast iron housing combined with a UC204 insert bearing secured by a set screw locking mechanism.
Manufacturer: Nachi
Type: Square Flanged Ball Bearing Unit
Model: UCF204
Bearing Number: UC204

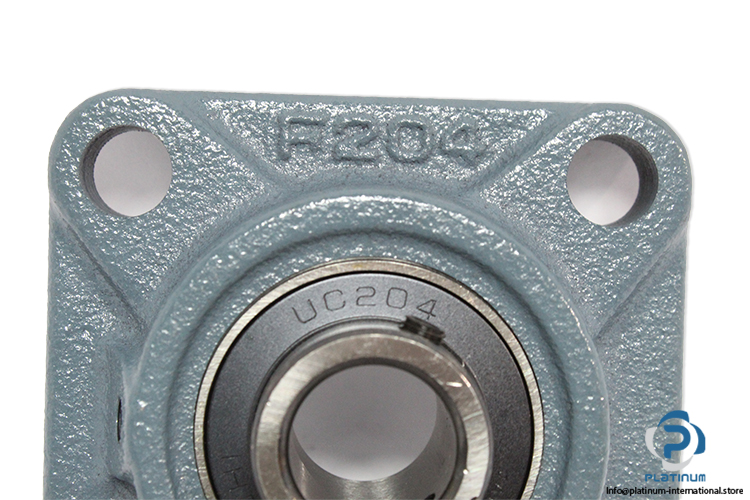

Housing Number: F204

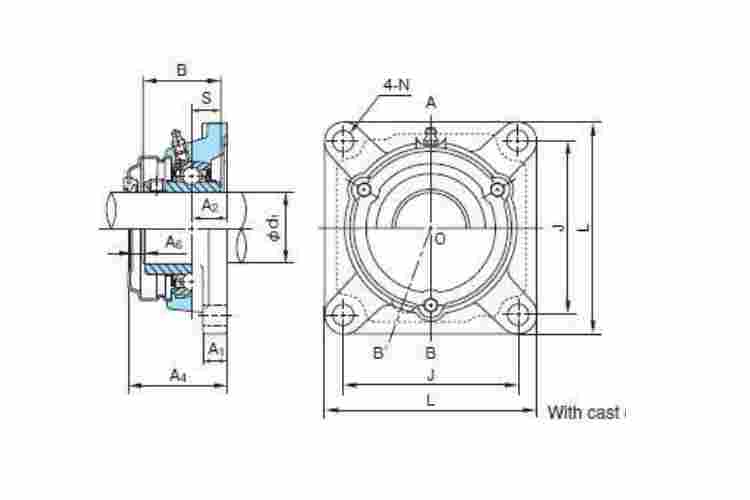

| Shaft Diameter (d) | 20 mm |
| Outside Diameter (L) | 86 mm |
| Pitch Diameter of Attachment Bolts (J) | 64 mm |
| Length of Attachment Bolt Hole (N) | 12 mm |
| Width of Inner Ring (B) | 31 mm |
| Overall Width (A0) | 33.3 mm |
| Dynamic Load Rating | 12,800 N |
| Static Load Rating | 6,600 N |
| Bolt Size | M10 |
| Locking Device | Set Screw |
| Housing Type | Square Flange, Cylindrical Bore |
| Housing Material | Cast Iron |
| No. Of Items / Set | 2 |
