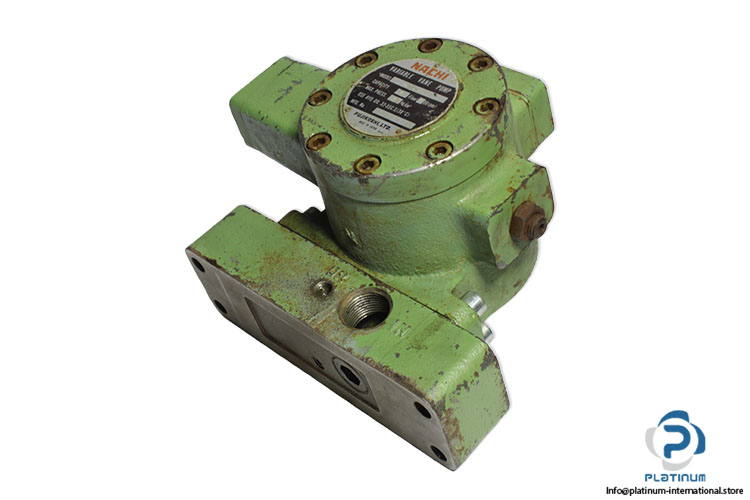

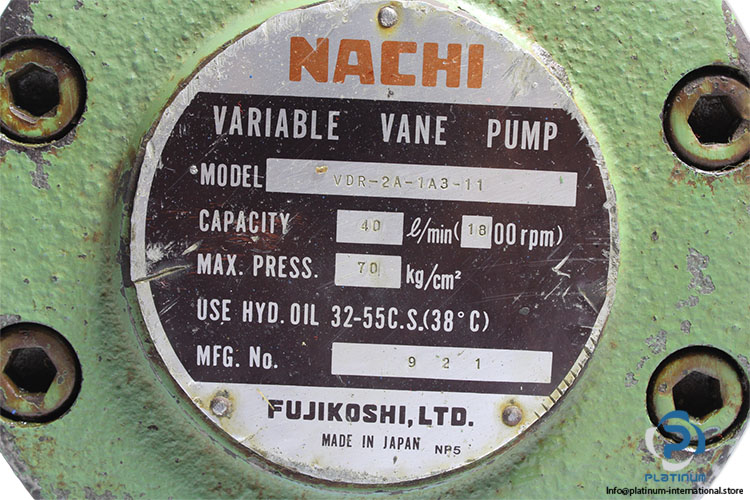

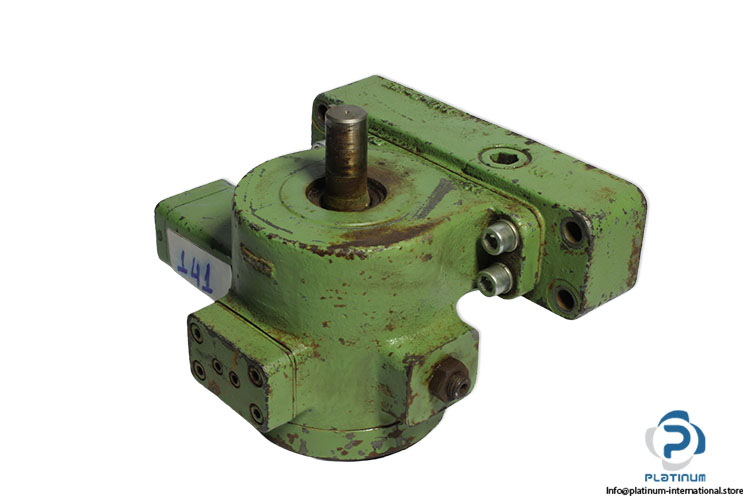

Nachi VDR-2A-1A3-11 Vane Pump
Used
In stock1 unitReady to ship
Variable Vane Pump The NACHI VDR-2A-1A3-11 is a VDR Series variable vane pump designed for stable oil flow, reliable pressure control, and efficient operation in industrial hydraulic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | VDR |
| MFG. No. | 9 2 1 |
| Design number | 11 |
| Pump size | 2 |
| Fluid | oil |
| Mounting method | Foot type mounting |
| Flow rate at 1800 rpm | 40 l/min |
| Ring size at 1800min–1 | 30 /min |
| Pressure adjustment range | 3 to 7 MPa |
| Flow rate characteristics | Constant discharge rate type |
| Direction of rotation | Clockwise |
| Shaft Diameter | 25 mm |
| Max pressure | 70 kg/cm2, 68.64 bar |
| USE HYD. OIL | 32-55C.S.(38C) |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100294 |
| Weight | 28,10 |
