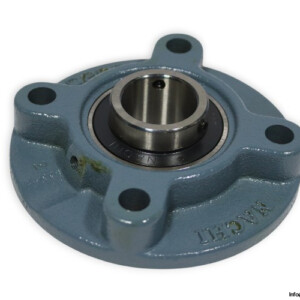

Nachi Ucfc 206 Round Flange Ball Bearing Unit
In stock3 unitsReady to ship
Ball Bearing Unit
Nachi UCFC206 round flanged ball bearing unit with 30 mm bore, cast iron housing, and set screw locking, suitable for industrial shaft mounting applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

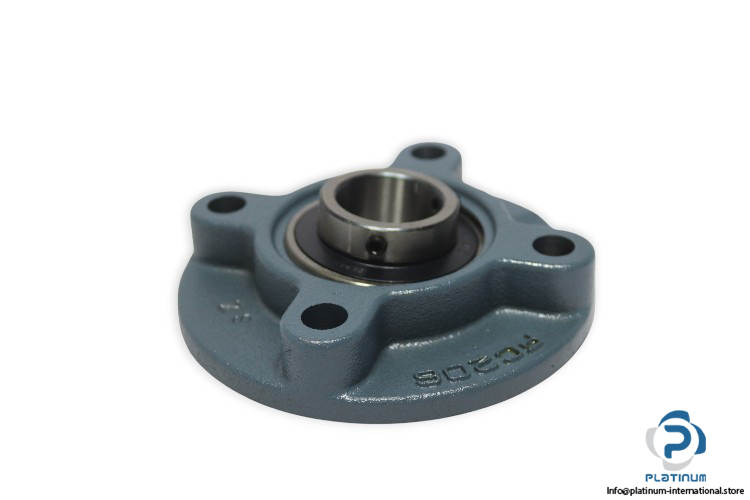

Nachi UCFC206 Round Flanged Ball Bearing Unit
The Nachi UCFC206 is a round flanged ball bearing unit designed to provide reliable shaft support and stable performance in industrial mounting applications. The unit combines a UC206 bearing with an FC206 cast iron housing, ensuring durability, secure fixation, and ease of installation.
Manufacturer: Nachi
Type: Round Flanged Ball Bearing Unit
Model: UCFC206
Bearing Number: UC206
Housing Number: FC206

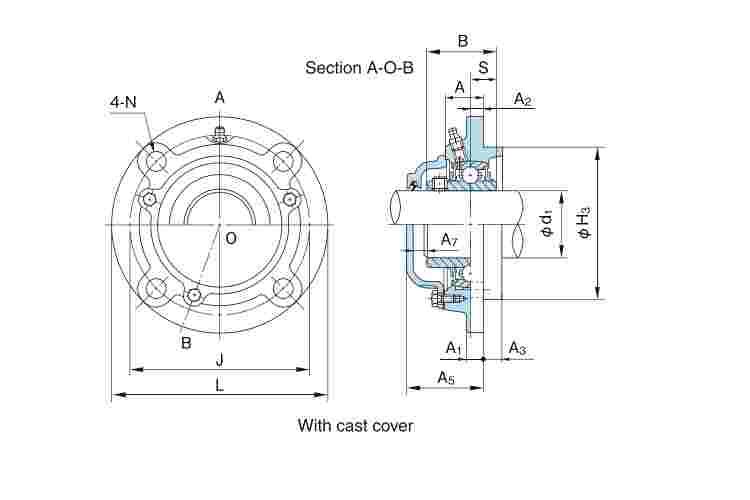

| Bore Diameter (d) | 30 mm |
| Outside Diameter (L) | 125 mm |
| Pitch Diameter of Attachment Bolts (J) | 100 mm |
| Length of Attachment Bolt Hole (N) | 12 mm |
| Width of Inner Ring (B) | 38.1 mm |
| Overall Width (A0) | 32.2 mm |
| Dynamic Load Rating | 19,600 N |
| Static Load Rating | 11,300 N |
| Bolt Size | M10 |
| Locking Device | Set Screw |
| Housing Type | Round flange, cylindrical bore |
| Housing Material | Cast iron |
