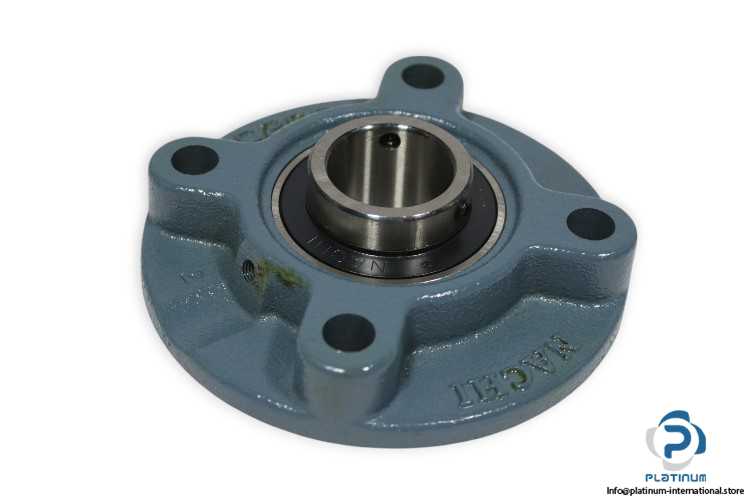

Nachi Ucfc 206 Round Flange Ball Bearing Unit
Round Flange Ball Bearing Unit
The Nachi UCFC 206 features a robust FC 206 housing and UC 206 bearing, offering 30 mm bore diameter and reliable load ratings for industrial applications.Nachi UCFC 206 Round Flange Ball Bearing Unit
The Nachi UCFC 206 Round Flange Ball Bearing Unit is a reliable and efficient solution for industrial applications requiring durability and precision. This unit features the UC 206 bearing and FC 206 housing, offering excellent performance and stability in demanding environments.
Manufacturer: Nachi
Type: ROUND FLANGE BALL BEARING UNIT
Model: UCFC 206
With its robust design and reliable performance, the Nachi UCFC 206 is an ideal choice for industrial systems requiring a round flange ball bearing unit.

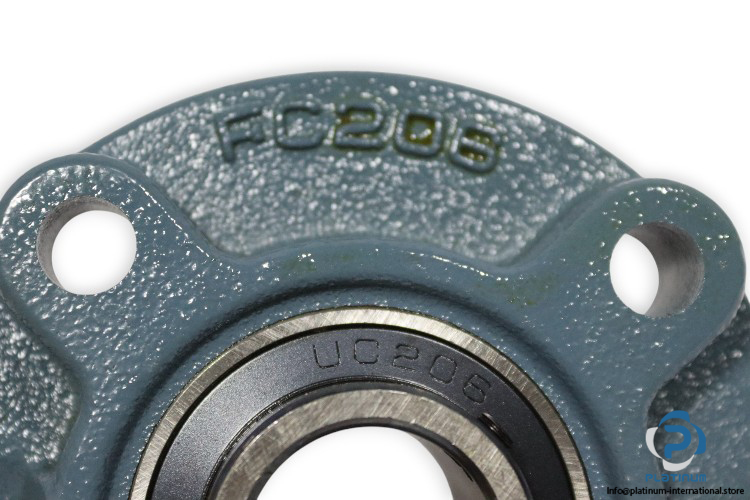

| Bearing Number | UC 206 |
| Housing Number | FC 206 |
| Bore Diameter (d) | 30 mm |
| Outside Diameter (L) | 125 mm |
| Pitch Diameter of Attachment Bolts (J) | 100 mm |
| Length of Attachment Bolt Hole (N) | 12 mm |
| Width of Inner Ring (B) | 38.1 mm |
| Overall Width (A0) | 32.2 mm |
| Dynamic Load Rating | 19600 N |
| Static Load Rating | 11300 N |
| Bolt Size | M10 |
| Locking Device | Set Screw |
| Housing Type | Round flange, cylindrical bore |
