Nachi UCF 205 Square Flange Ball Bearing Unit

Available on request

Square Flange Bearing Unit

Nachi UCF205 square flange ball bearing unit with 25 mm bore, cast iron housing, and set screw locking for industrial shaft support.

Manufacturer
NACHI
SKU
1089968
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Nachi UCF205 Square Flange Ball Bearing Unit

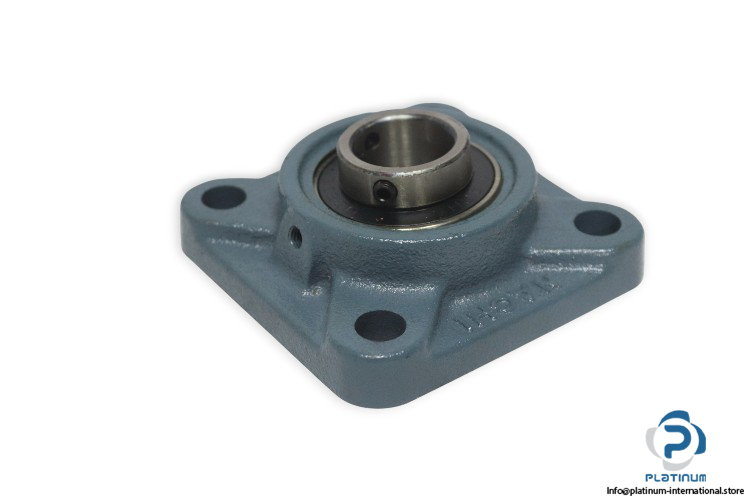

The Nachi UCF205 is a square flange ball bearing unit designed to provide stable shaft support and reliable performance in industrial applications. It features a cast iron housing and a cylindrical bore with set screw locking for secure shaft mounting.

Manufacturer: Nachi

Type: Square Flange Ball Bearing Unit

Model: UCF205

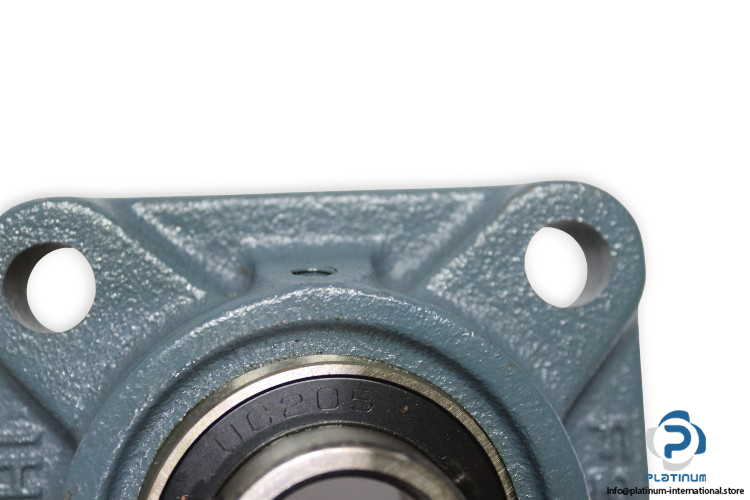

Bearing Number: UC205

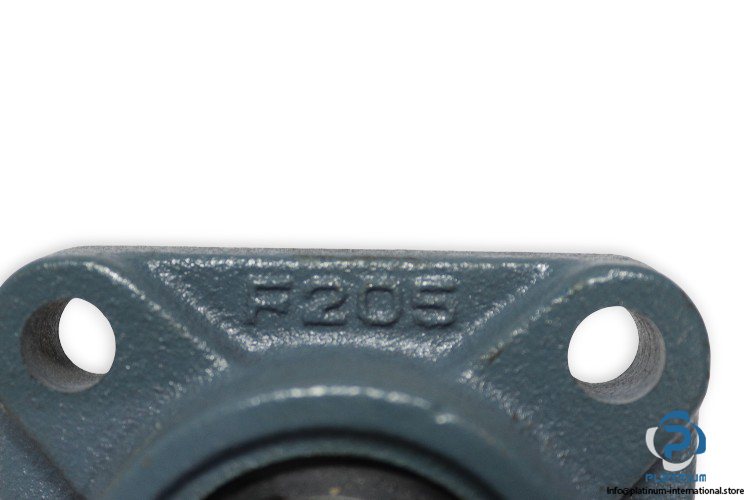

Housing Number: F205

Shaft Diameter (d)25 mm
Outside Diameter (L)95 mm
Pitch Diameter of Attachment Bolts (J)70 mm
Length of Attachment Bolt Hole (N)12 mm
Width of Inner Ring (B)34 mm
Overall Width (A0)35.7 mm
Dynamic Load Rating14,000 N
Static Load Rating7,900 N
Bolt SizeM10
Locking DeviceSet Screw
Housing TypeSquare Flange, Cylindrical Bore
Housing MaterialCast Iron
