Nachi UCF 205 Square Flange Ball Bearing Unit

In stock2 unitsReady to ship

Square Flanged Bearing Unit

Nachi UCF205 square flanged ball bearing unit with 25 mm bore, cast iron housing, and set screw locking for industrial shaft support.

Manufacturer
NACHI
SKU
1089924
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

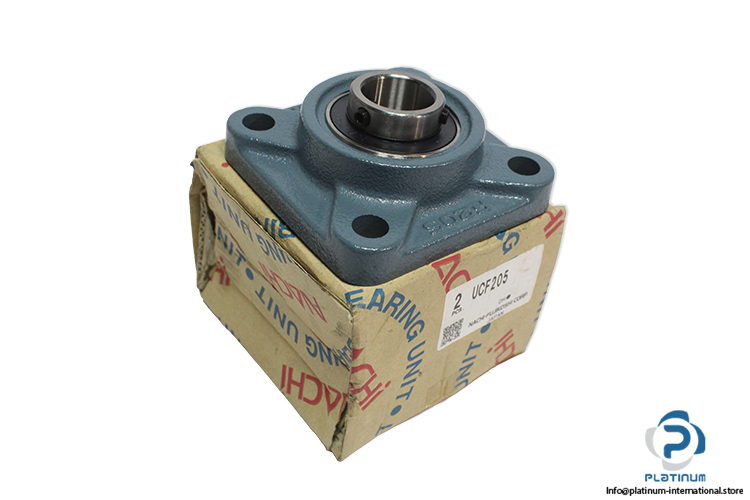

Nachi UCF205 Square Flanged Ball Bearing Unit

The Nachi UCF205 is a square flanged ball bearing unit designed for secure shaft support and stable operation in industrial applications. The cast iron housing and set screw locking device ensure durability and reliable performance.

Manufacturer: Nachi

Type: Square Flanged Ball Bearing Unit

Model: UCF205

Bearing Number: UC205

Housing Number: F205

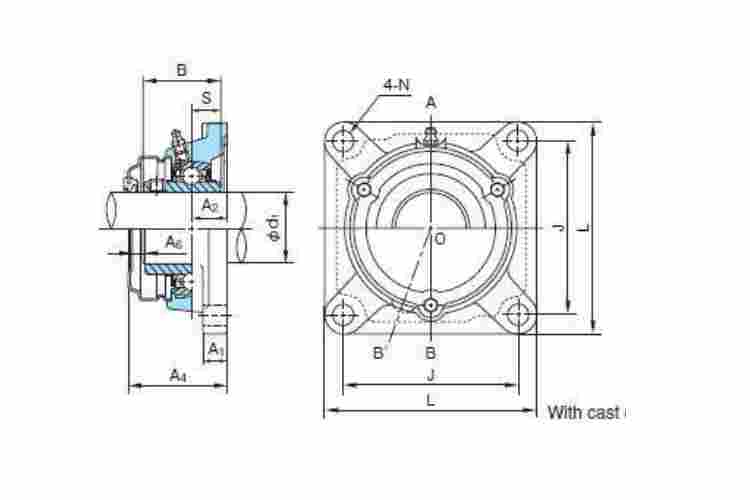

Shaft Diameter (d)25 mm
Outside Diameter (L)95 mm
Pitch Diameter of Attachment Bolts (J)70 mm
Length of Attachment Bolt Hole (N)12 mm
Width of Inner Ring (B)34 mm
Overall Width (A0)35.7 mm
Dynamic Load Rating14000 N
Static Load Rating7900 N
Bolt SizeM10
Locking DeviceSet Screw
Housing TypeSquare Flange, Cylindrical Bore
Housing MaterialCast Iron
No. Of Items / Set2
