Nachi Ucfc 209 Round Flange Ball Bearing Unit
New
In stock12 unitsReady to ship
Round Flange Ball Bearing Unit
The Nachi UCFC 209 features a robust FC 209 housing and UC 209 bearing, delivering reliable performance and precision for industrial systems. Its round flange design ensures stability and durability in demanding applications.20945BallbearingBoltboreCapacityComponentCylindricaldiameterFCFlangeHighHousingIndustrialLoadM14MachinerymmNachireliableRoundSizeUCUcfcUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

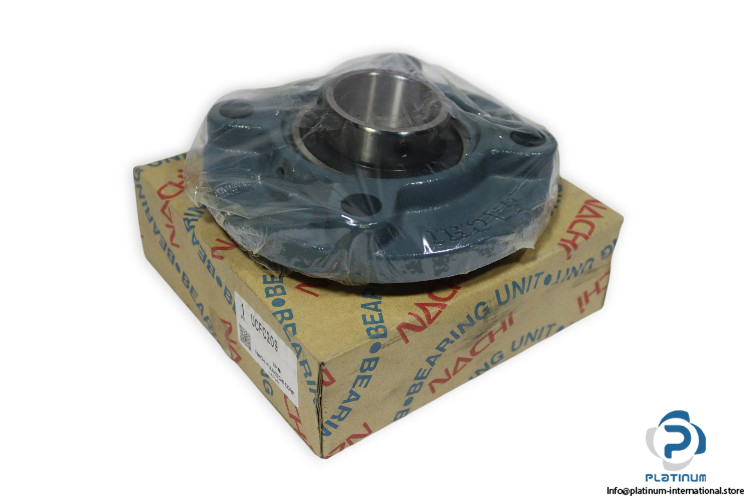

Nachi UCFC 209 Round Flange Ball Bearing Unit
The Nachi UCFC 209 Round Flange Ball Bearing Unit is a precision-engineered solution designed for industrial applications requiring stability and durability. Featuring the FC 209 housing and UC 209 bearing, this unit ensures reliable performance under demanding conditions.
Manufacturer: Nachi
Type: ROUND FLANGE BALL BEARING UNIT
Model: UCFC 209
With its robust construction and precise design, the Nachi UCFC 209 Round Flange Ball Bearing Unit provides exceptional alignment, load handling, and durability, making it ideal for a wide range of industrial applications.
| Bearing Number | UC 209 |
| Housing Number | FC 209 |
| Bore Diameter (d) | 45 mm |
| Outside Diameter (L) | 160 mm |
| Pitch Diameter of Attachment Bolts (J) | 132 mm |
| Length of Attachment Bolt Hole (N) | 16 mm |
| Width of Inner Ring (B) | 49.2 mm |
| Overall Width (A0) | 40.2 mm |
| Dynamic Load Rating | 33000 N |
| Static Load Rating | 20500 N |
| Bolt Size | M14 |
| Locking Device | Set Screw |
| Housing Type | Round Flange, Cylindrical Bore |
