Nachi Ucfl 209 Oval Flange Ball Bearing Unit

Name: NACHI UCFL 209 OVAL FLANGE BALL BEARING UNIT
SKU: 1005281
Availability: LimitedAvailability

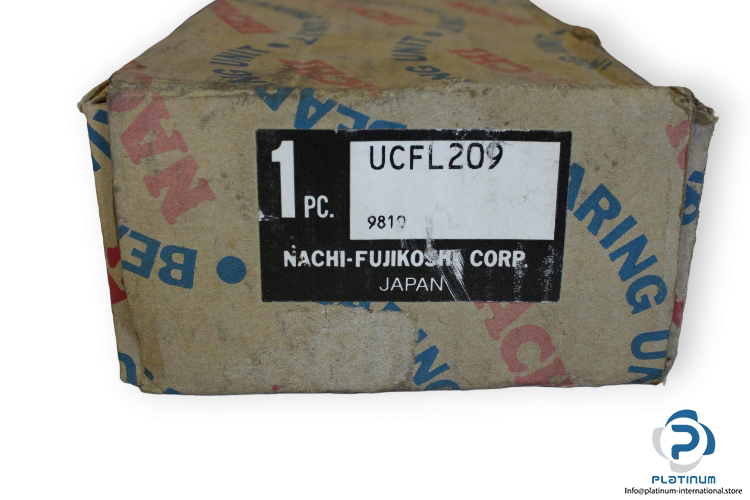

nachi-UCFL-209-oval-flange-ball-bearing-unit-(new)-(carton)-1

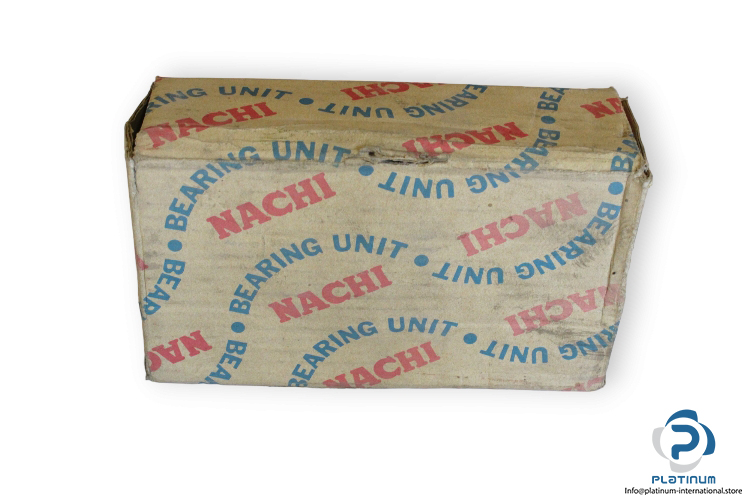

nachi-UCFL-209-oval-flange-ball-bearing-unit-(new)-(carton)-2

New

In stock2 unitsReady to ship

Manufacturer:

NACHI

Type:

Oval flange ball bearing unit

Model:

UCFL 209

Manufacturer

NACHI

SKU

1005281

Category

Plummer Block Housing Units

Condition

New

45 bearing bearings flanged Housing mm Nachi Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: NACHI
Type: Oval flange ball bearing unit
Model: UCFL 209

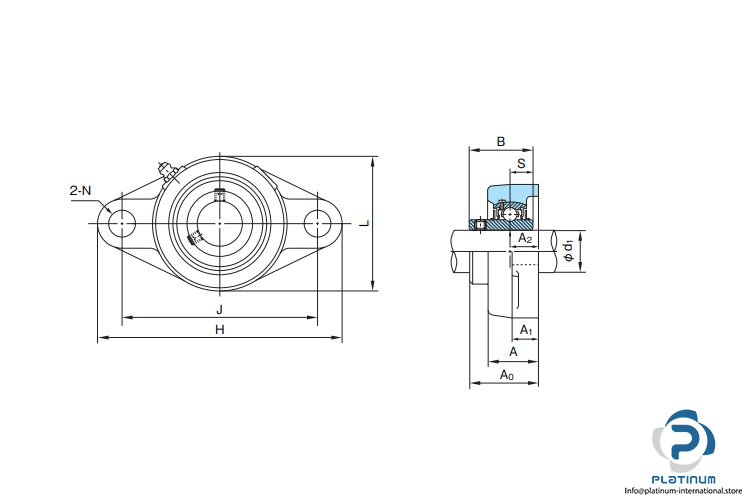

Dimensions
Bore Diameter d: 45 mm
Overall Length L: 108 mm
Overall Height H: 188 mm
Width of inner ring B: 49.2 mm
Distance Between Attachment Bolts: 148 mm
Overall unit width A₀: 52.2 mm
Basic load rating:
Dynamic Cr: 33000 N
Static C0r: 20500 N
Mounting: Oval Flange
Locking device: Set Screw
Bore type: Cylindrical
