Nachi UCP 204 Pillow Block Ball Bearing Unit
New
In stock1 unitReady to ship
Pillow Block Bearing Unit
Nachi UCP204 pillow block ball bearing unit with 20 mm bore, UC204 insert bearing, P204 housing, and set screw locking for industrial mounting applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

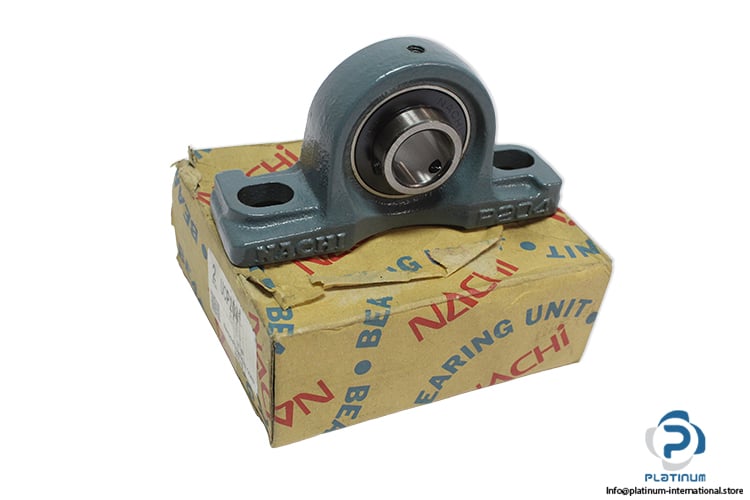

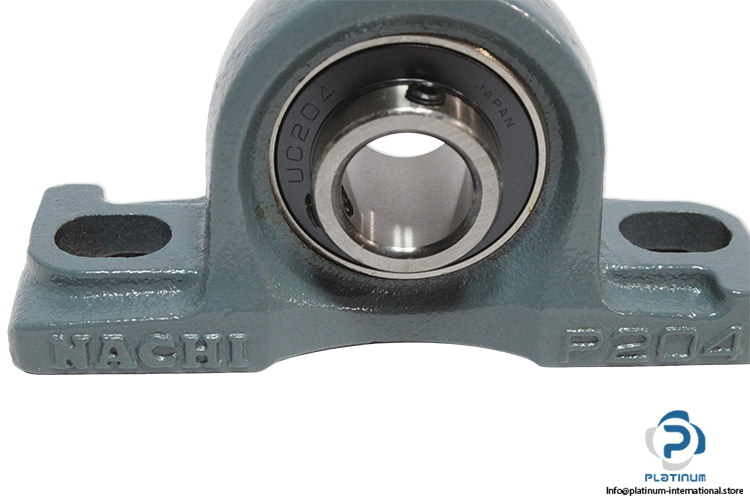

Nachi UCP204 Pillow Block Ball Bearing Unit
The Nachi UCP204 pillow block ball bearing unit is designed to provide stable shaft support and reliable bearing performance in industrial applications. The unit combines a UC204 insert bearing with a P204 housing, allowing easy mounting and secure operation.
Manufacturer: Nachi
Type: Pillow Block Ball Bearing Unit
Model: UCP204
Bearing Number: UC204
Housing Number: P204

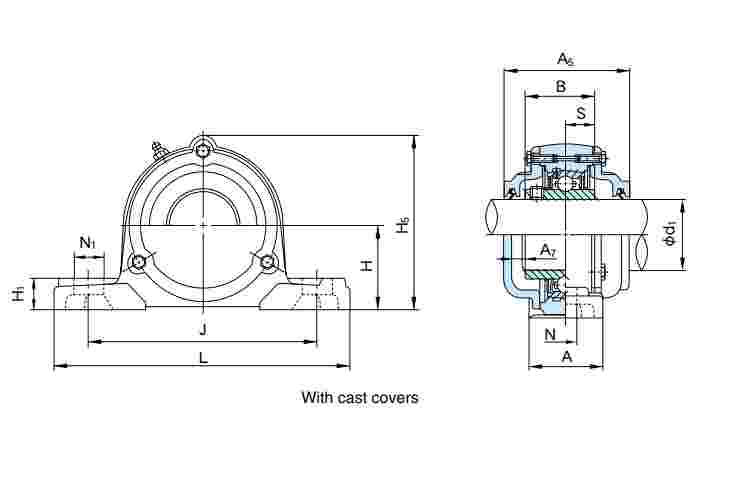

| Bore Diameter (d) | 20 mm |
| Overall Length (L) | 127 mm |
| Overall Height (H2) | 65 mm |
| Width of Inner Ring (B) | 31 mm |
| Distance Between Attachment Bolts (J) | 95 mm |
| Diameter of Attachment Bolt Hole (N) | 13 mm |
| Overall Width (A) | 38 mm |
| Bolt Size | M10 |
| Basic Load Rating (Dynamic) | 12,800 N |
| Basic Load Rating (Static) | 6,600 N |
| Locking Device | Set Screws |
| Bore Type | Cylindrical Bore |

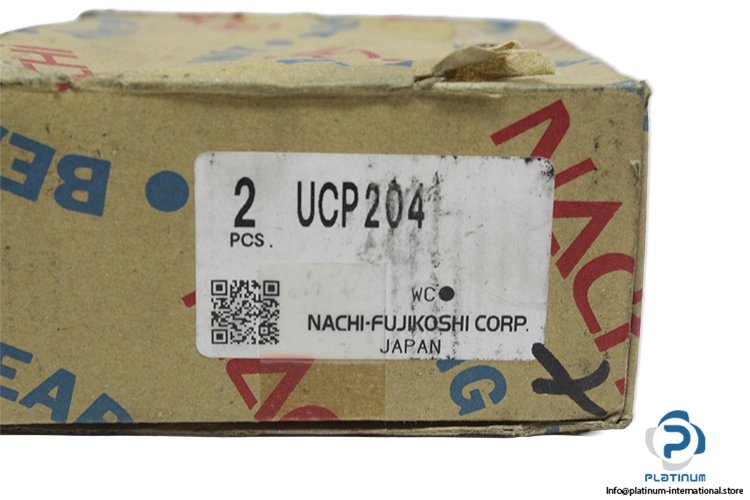

| Number of Items per Set | 2 |
