Nachi UCP 211 Pillow Block Ball Bearing Unit
New
In stock1 unitReady to ship
Pillow Block Bearing Unit
Nachi UCP211 pillow block ball bearing unit with 55 mm bore, cast iron housing, and set screw locking, designed for industrial shaft support applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

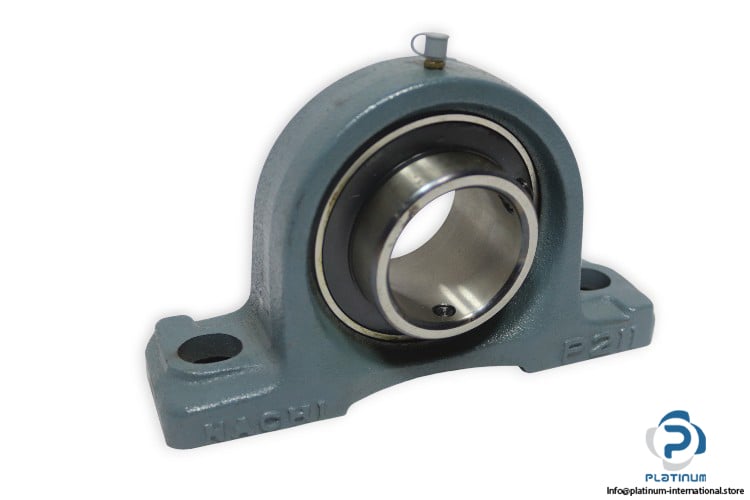

Nachi UCP211 Pillow Block Ball Bearing Unit
The Nachi UCP211 pillow block bearing unit is a robust and reliable mounted bearing solution designed for stable shaft support in industrial applications. It combines a UC211 insert bearing with a P211 cast iron housing to ensure durability, easy installation, and dependable operation.
Manufacturer: Nachi
Type: Pillow Block Ball Bearing Unit
Model: UCP211

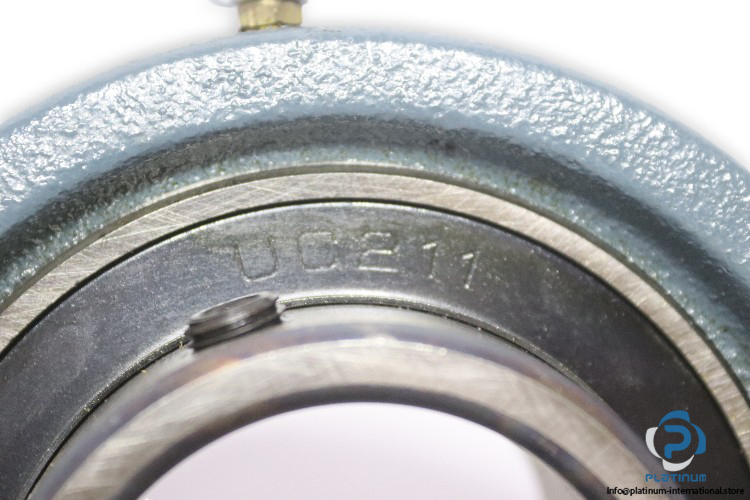

Bearing Number: UC211

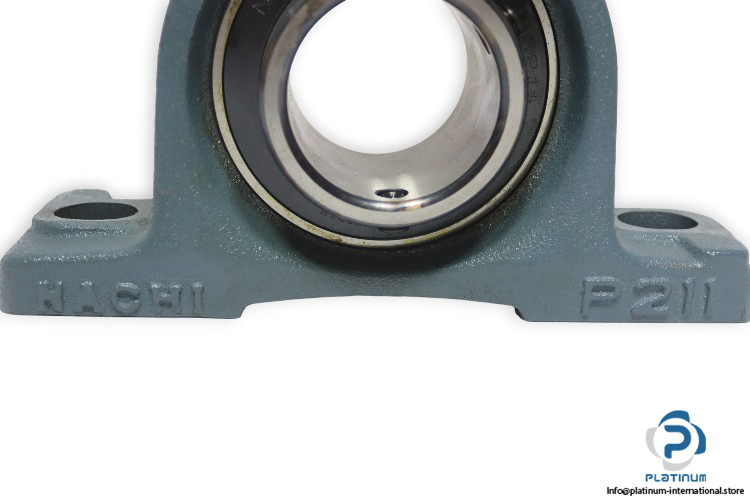

Housing Number: P211

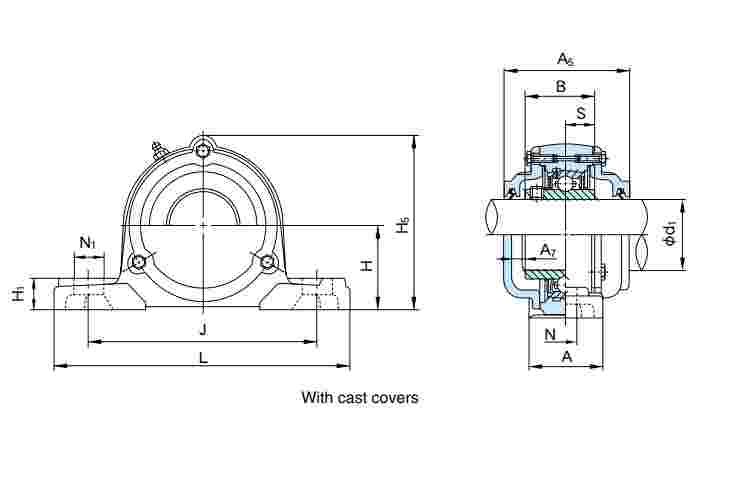

| Bore Diameter (d) | 55 mm |
| Overall Length (L) | 219 mm |
| Overall Height (H2) | 126 mm |
| Width of Inner Ring (B) | 55.6 mm |
| Distance Between Attachment Bolts (J) | 171 mm |
| Diameter of Attachment Bolt Hole (N) | 20 mm |
| Overall Width (A) | 60 mm |
| Bolt Size | M16 |
| Basic Load Rating (Dynamic) | 43,000 N |
| Basic Load Rating (Static) | 29,400 N |
| Locking Device | Set Screws |
| Bore Type | Cylindrical Bore |
| Material | Cast Iron |
