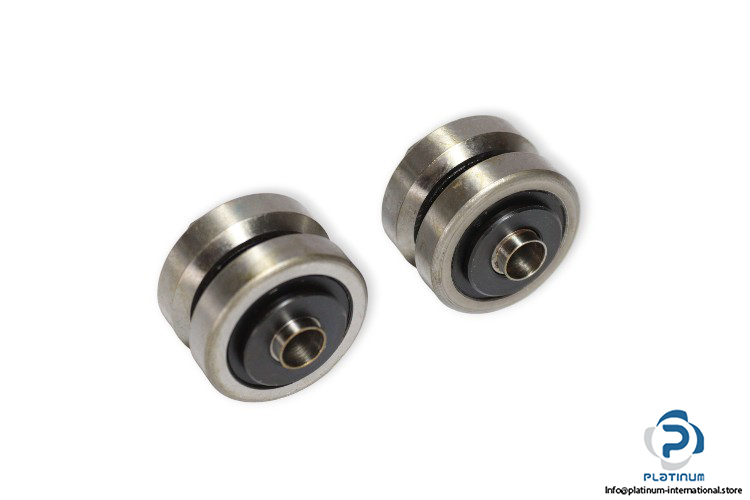

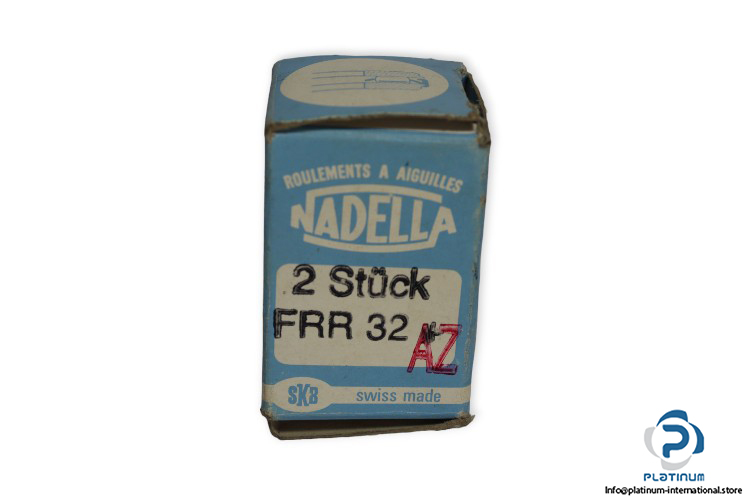

Nadella FRR32+AZ Guide Roller
Manufacturer: NADELLA
Type: Guide Rollers FRR
Model: FRR32AZ

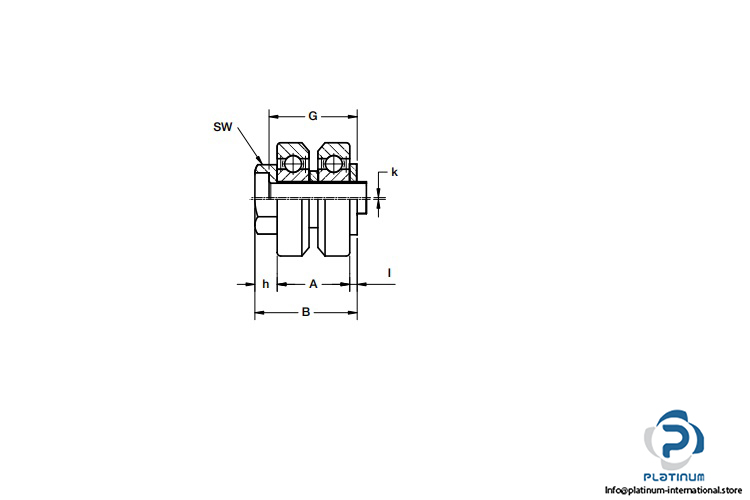

Dimensions
Outside diameter D: 32 mm
Attachment diameter d1: 9 mm
Total length L: 31.5 mm
A: 20.5 mm
B: 28.9 mm
G: 24.9 mm
m: 12.4 mm
Bearing rating:
Dynamic: 1480 N
Static:
radial Cor: 830 N
axial Coa: 210 N
Limit loads shaft:
radial Fr: 1590 N
axial Fa: 710 N
Pressure angle: 40°
