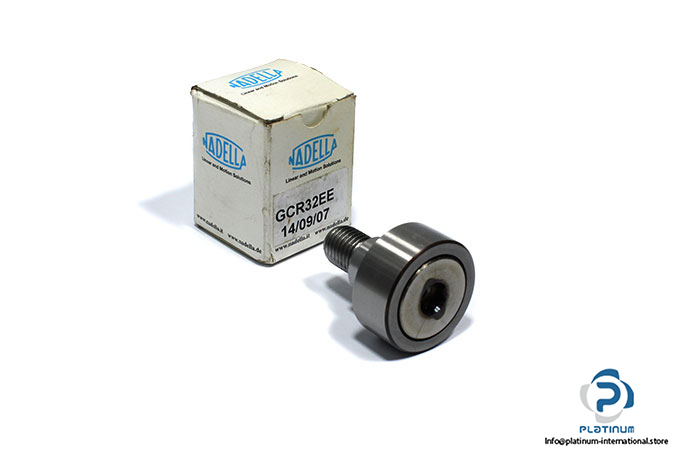

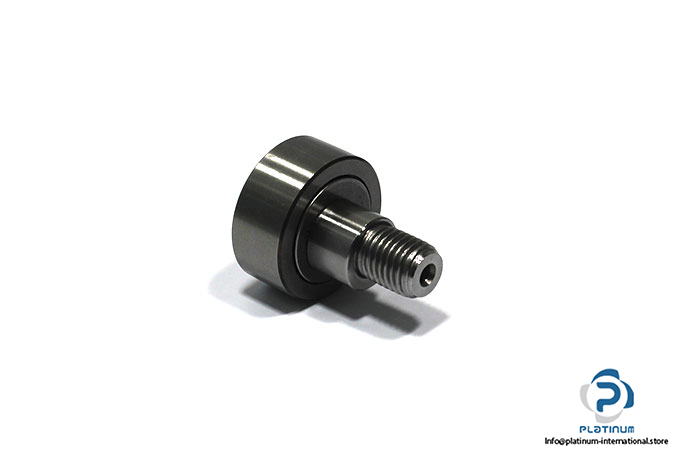

Nadella GCR32EE Stud Type CAM Follower

Manufacturer: NADELLA

Type: Cam follower with stud with eccentric collar

Model: GCR 32 EE

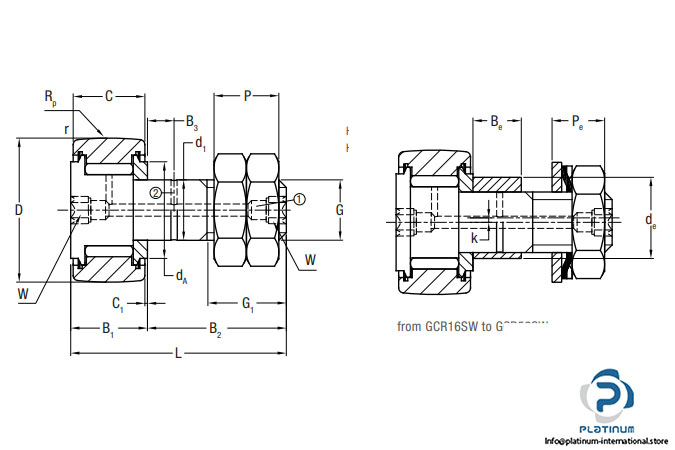

Dimensions

Outside diameter D: 32 mm

Attachment diameter d₁: 12 mm

Total length L: 40 mm

Width outer ring C: 14 mm

Stud alignment: Centric stud with eccentric collar

Thread stud G: M12x1.5

Basic load ratings:

Dynamic F_r: 7900 kN

Static F_0r: 15000 kN

Limiting speed: 2600 rpm
