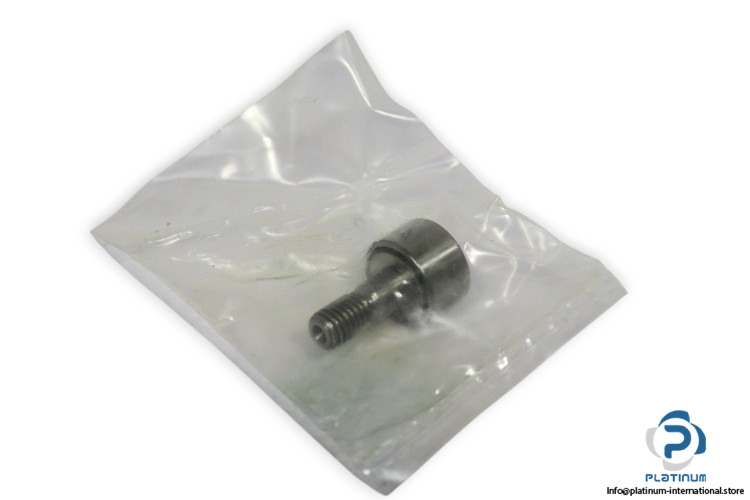

Nadella KR19EE Stud Type Track Roller
New
In stock35 unitsReady to ship
24,44$
Stud Type Track Roller
The Nadella KR19EE Stud Type Track Roller features a 19 mm outer diameter, 3500 N dynamic load capacity, and sealed design, providing reliable performance for industrial systems with a speed limit of 11000 rpm.193500540CapacitydiameterDynamicfatigueHigh-SpeedIndustrialKR19EELimitLoadM8x1.25mmNNadellaOuterRollerSealedStudThreadtrackType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Nadella KR19EE Stud Type Track Roller
The Nadella KR19EE Stud Type Track Roller is designed for high-performance industrial applications requiring reliable load-bearing and smooth operation. With sealed design and high dynamic load capacity, this roller is ideal for demanding environments.
Manufacturer: Nadella
Type: STUD TYPE TRACK ROLLER
Model: KR19EE
Load Ratings:
Speed and Sealing:
This Nadella stud type track roller is built for durability, providing smooth and reliable performance with a high speed limit and sealed protection for industrial systems.
| Outside Diameter (D) | 19 mm |
| Attachment Diameter (d1) | 8 mm |
| Length (B) | 32 mm |
| B1 | 12.2 mm |
| G | M8x1.25 |
| C | 11 mm |
| Nut Tightening Torque (M) | 8 Nm |
| Dynamic Load | 3500 N |
| Static Load | 4000 N |
| Fatigue Limit Load | 540 N |
| Speed Limit | 11000 rpm |
| Sealing | EE, Sealed both sides |
