Nadella PFD28.10 Stud Type Track Roller
New
In stock6 unitsReady to ship
Stud Type Track Roller
The Nadella PFD28.10-04.0.01 is a cam follower track roller with a 28mm outer diameter, 12mm stud diameter, and high load capacity for industrial linear motion applications.1.5bearingCamConvexFollowerhigh-loadIndustrialLinearM12MotionNadellaOuterPFD28.10-04.0.01RingRollerStudtrackTypex
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

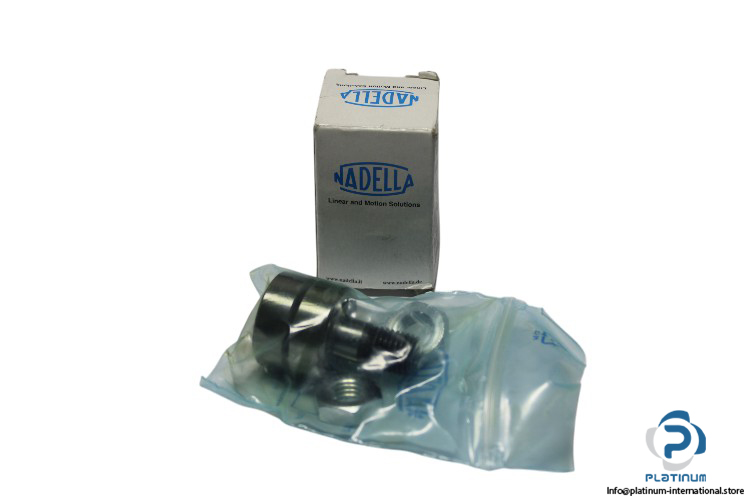

Nadella PFD28.10-04.0.01 Stud Type Track Roller
The Nadella PFD28.10-04.0.01 is a high-performance stud-type track roller designed for precision linear motion applications. Featuring a cam follower design with a stud and outer convex rings, this track roller ensures smooth operation and high load capacity for demanding industrial applications.
Manufacturer: Nadella
Type: Stud Type Track Roller
Model: PFD28.10-04.0.01

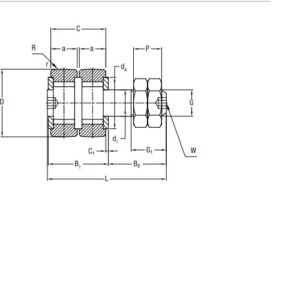

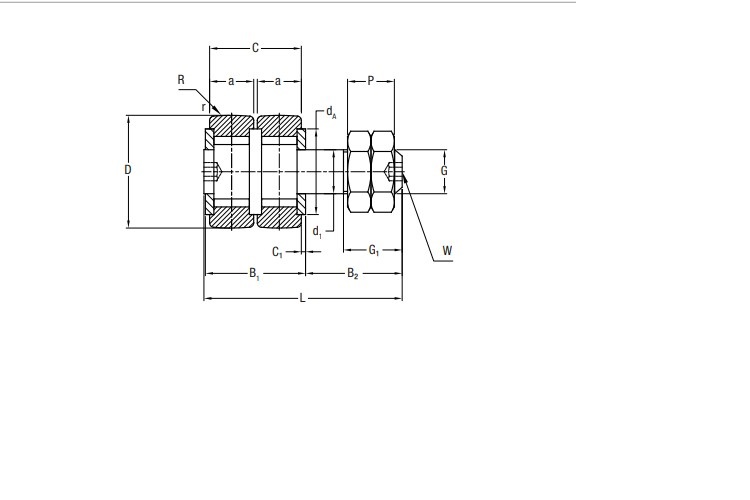

Dimensions:
Basic Load Ratings, Radial:
| Design | PFD, cam follower with stud and outer convex rings |
| Outside Diameter (De) | 28 mm |
| Diameter of Stud (d1) | 12 mm |
| Length (L) | 45 mm |
| C | 21 mm |
| G | M12 x 1.5 |
| a | 10 mm |
| Convex Radius | 200 mm |
| Dynamic (Cw) | 5000 N |
| Dynamic (Fr) | 2800 N |
| Static (For) | 4500 N |
| Speed Limit with Grease | 5300 RPM |
