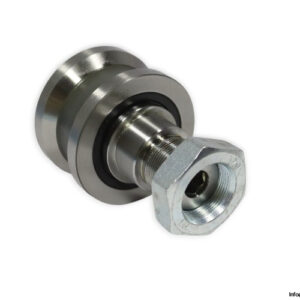

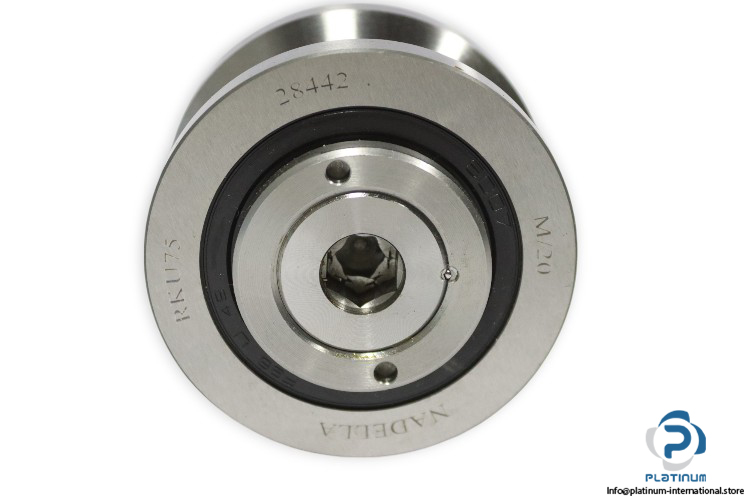

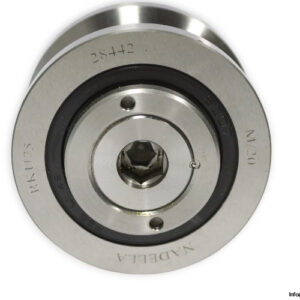

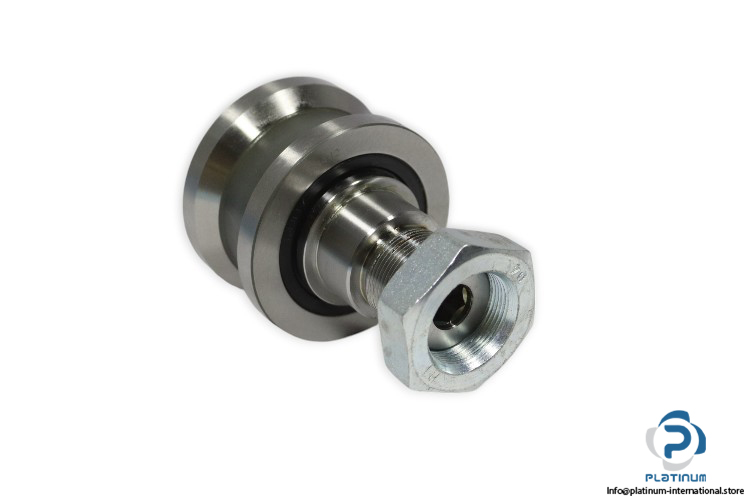

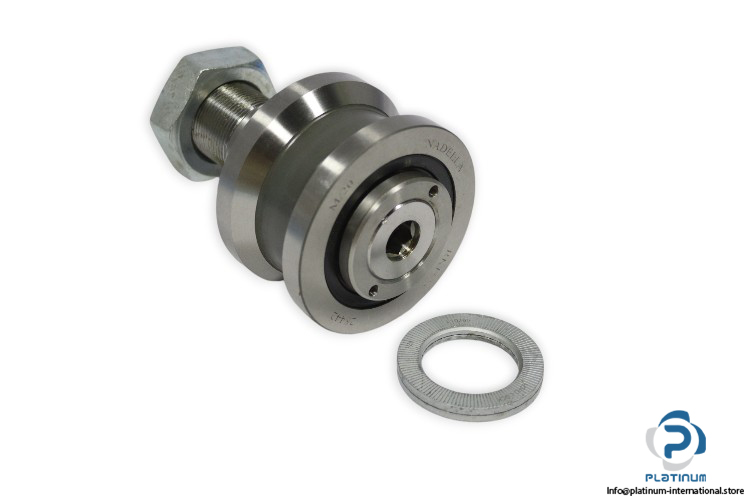

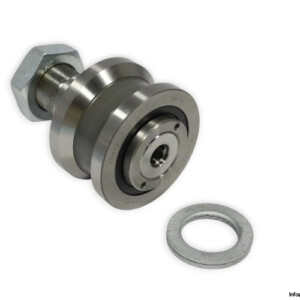

Nadella RKU75 Guide Roller
Manufacturer: NADELLA
Type: GUIDE ROLLER
Model: RKU 75
Design: concentric

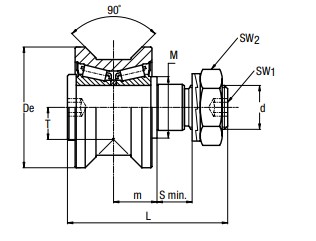

Dimensions
Outside diameter De: 75 mm
Stud diameter d1: 36 mm
Total length L: 100 mm
Width outer ring A: 45 mm
Thread stud d: M30 x 1.5
Basic load ratings Dynamic: 69000 N
Limit loads of the stud:
Radial Fr: 28500 N
axial Fa: 10200 N
Torque wrench settings: 300 Nm
Pressure angle α: 45°
Housing bore tolerance: H7
