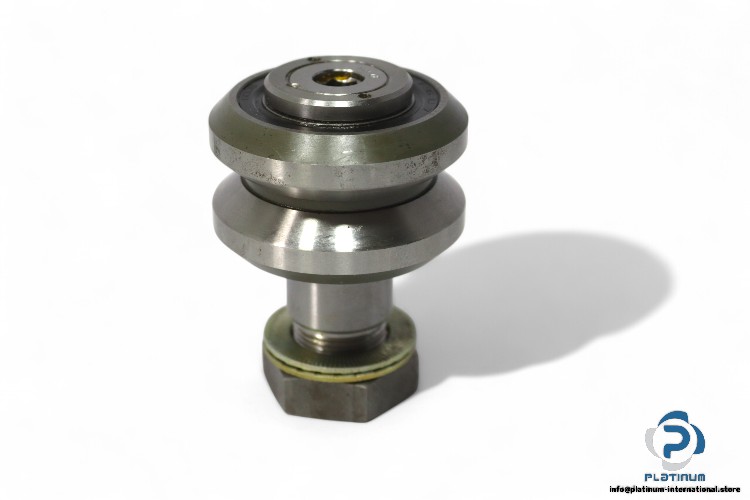

Nadella RKY62 C03 Concentric Guide Roller

Manufacturer: Nadella
Type: CONCENTRIC GUIDE ROLLER
Model: RKY 62 C03

Design: C03, Close outer ring running accuracy according to P6
Type: RKY(Guide rollers with tapered roller bearings), Concentric

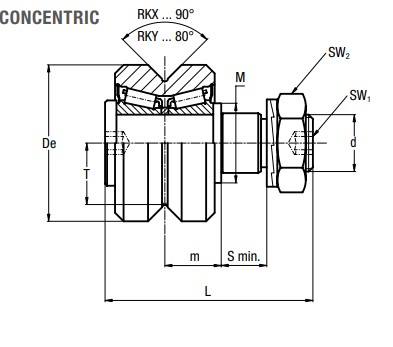

Dimensions
Outside diameter De: 62 mm
Stud diameter d₁: 27 mm
Total length L: 83 mm
Width outer ring A: 37 mm
Thread stud d: M24 x 1.5
Basic load ratings Dynamic:  46000 N
Limit loads:
Radial F_r: 19000 N
axial F_a: 8300 N
Torque wrench settings: 160 Nm
Pressure angle α: 45°
