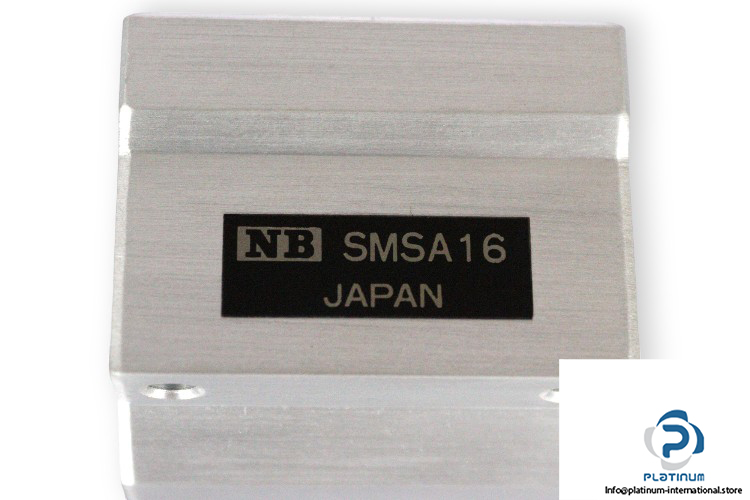

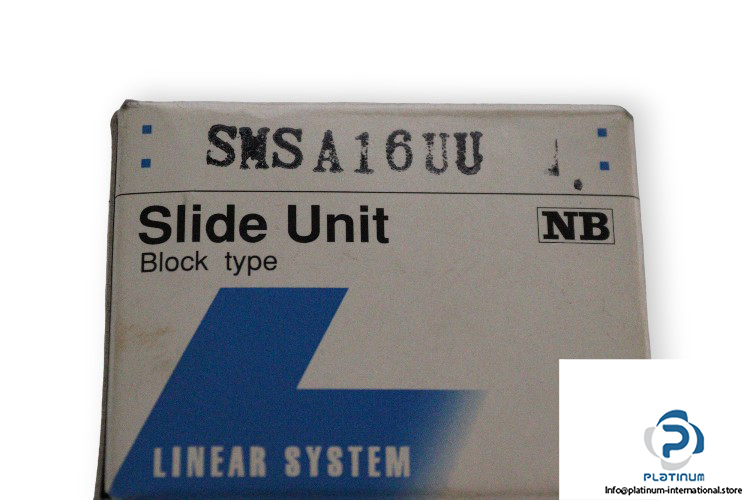

NB SMSA16UU Linear Ball Bushing

Manufacturer: NB
Type: Block Type
Model: SMSA 16 UU

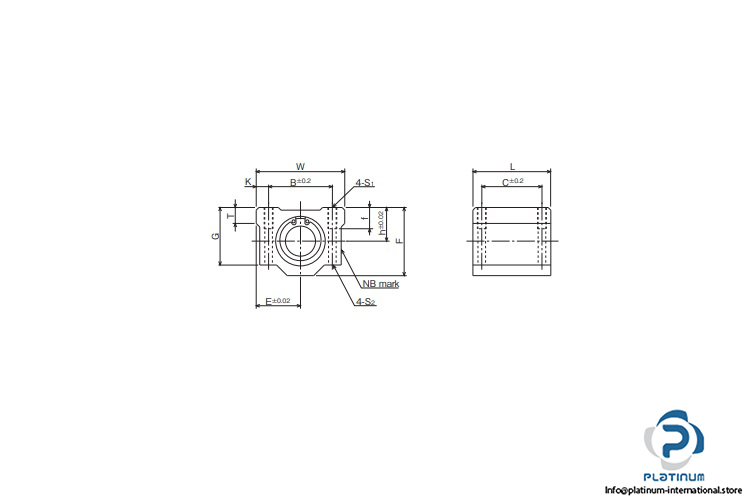

Dimensions
shaft diameter: 16 mm
B: 36 mm
C: 34 mm
h: 19 mm
E: 25 mm
W: 50 mm
L: 44 mm
F: 38.5 mm
basic load rating:
Dynamic Load Rating: 774 N
Static Load Rating: 1180 N
Sealing: seals on both sides
