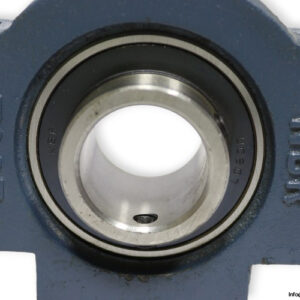

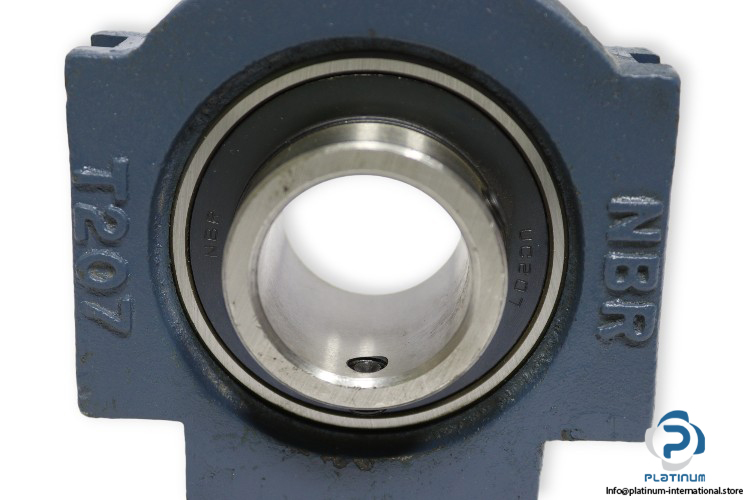

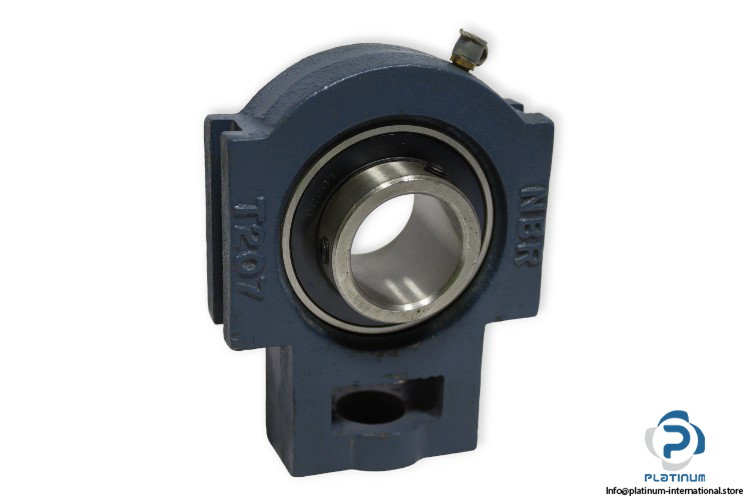

NBR UCT207 Take UP Ball Bearing Unit

Manufacturer: NBR
Type: take up ball bearing unit
Model: UCT207
Housing No.: T207
Bearing No.: UC207

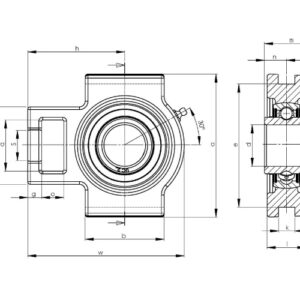

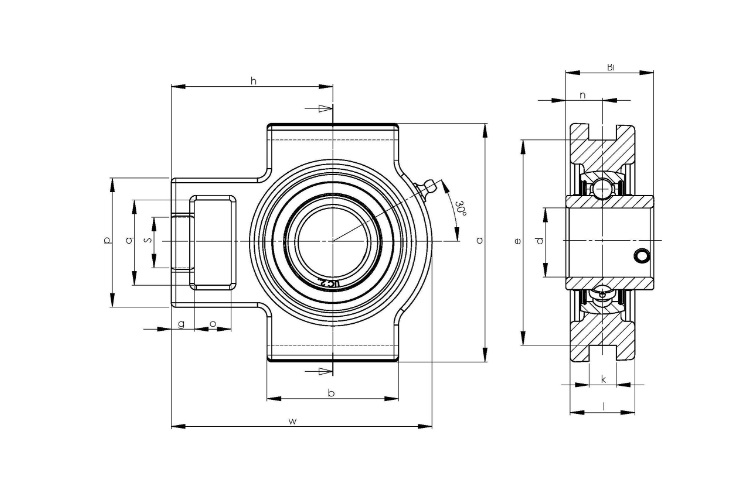

Shaft diameter d: 35 mm
Distance between bottoms of piloting grooves e: 89 mm
Width of inner ring Bi: 42.9 mm
Distance from attachment end face to centre line of spherical seat diameter h: 78 mm
Width of piloting groove k: 12 mm
Length of piloting groove b: 64 mm
Overall height a: 102 mm
Height of attachment end p: 64 mm
Overall length w: 129 mm
Diameter of attachment bolt hole s: 22 mm
Length of attachment slot o: 16 mm
Height of attachment slot q: 37 mm
Basic Load Rating:
Dynamic: 25.7 kN
Static: 15.3 kN
Housing type: Take-up
