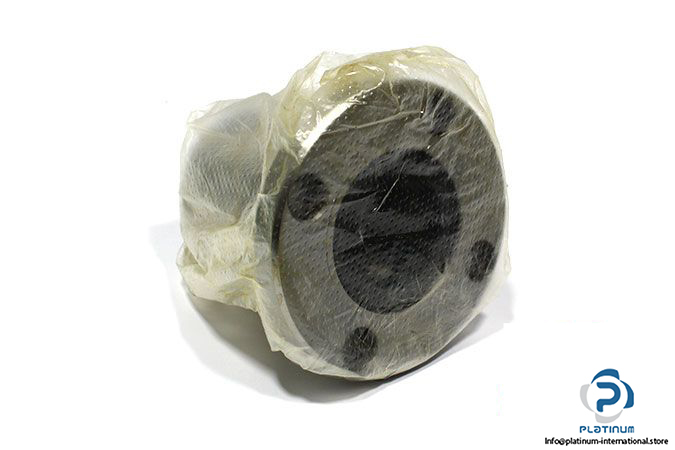

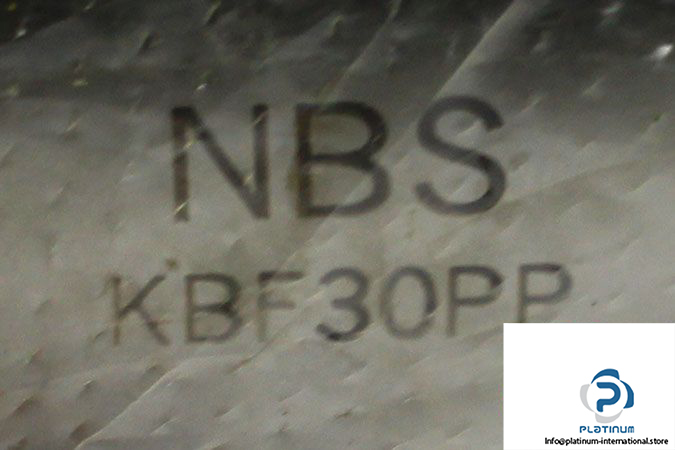

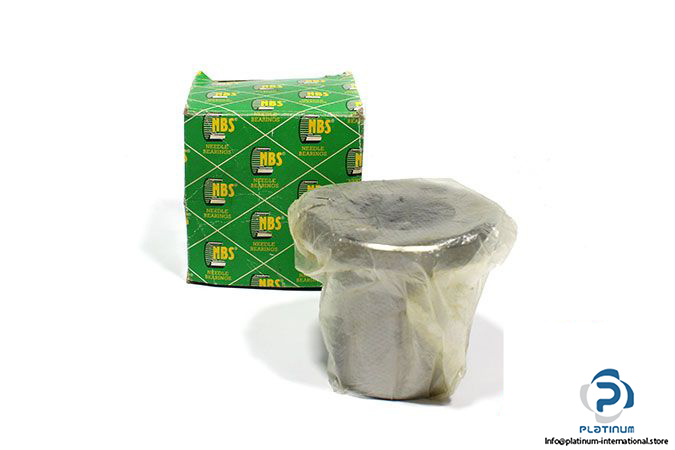

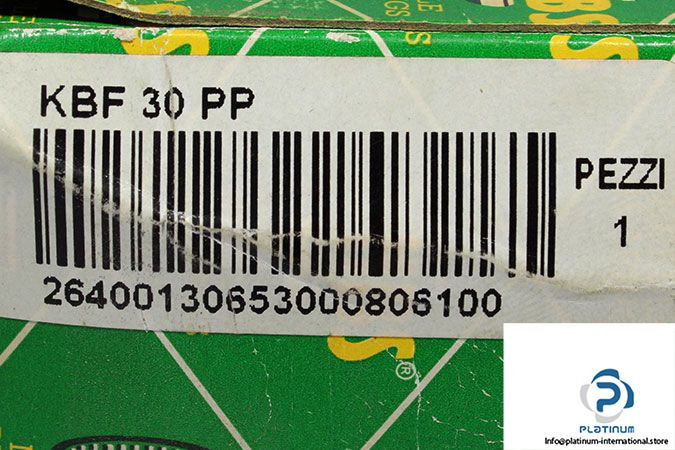

NBS KBF30PP Flange Linear Ball Bushing

Manufacturer: NBS

Type: Flange Linear Ball Bushing

Model: KBF 30 PP

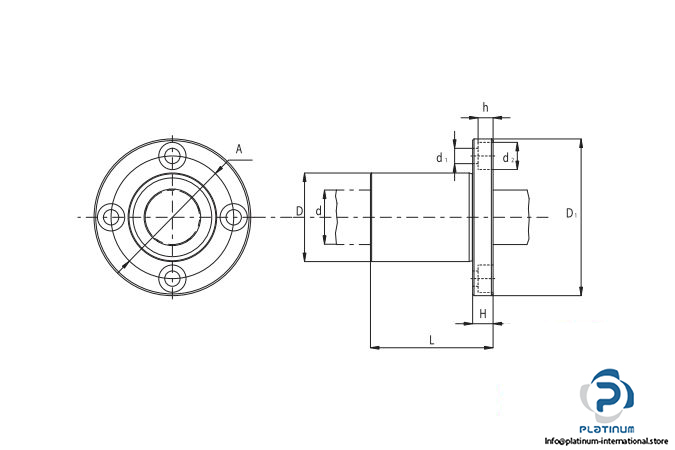

Dimensions:

Inner diameter d: 30 mm

Outer diameter D: 47 mm

Length L: 68 mm

Flange diameter D₁: 76 mm

Design type: Flange, Closed

Rows of Balls: 6

Dynamic load rating C: 1600 N

Static load rating: 2800 N

Cage material: polyamide cage

Seals: PP, seals on both sides

Weight: 0.53 kg
