NEC NL10276BC16-01 LCD Screen Display Module

In stock1 unitReady to ship

199,99$

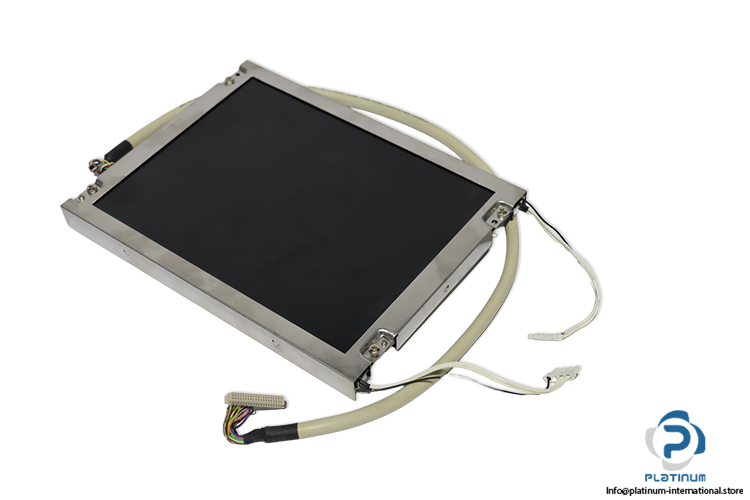

LCD Screen Display Module The NEC NL10276BC16-01 is an 8.4-inch XGA LCD display module with LVDS interface, 3.3 V supply, and CCFL backlighting for industrial applications.

Manufacturer
NEC
SKU
1104028
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

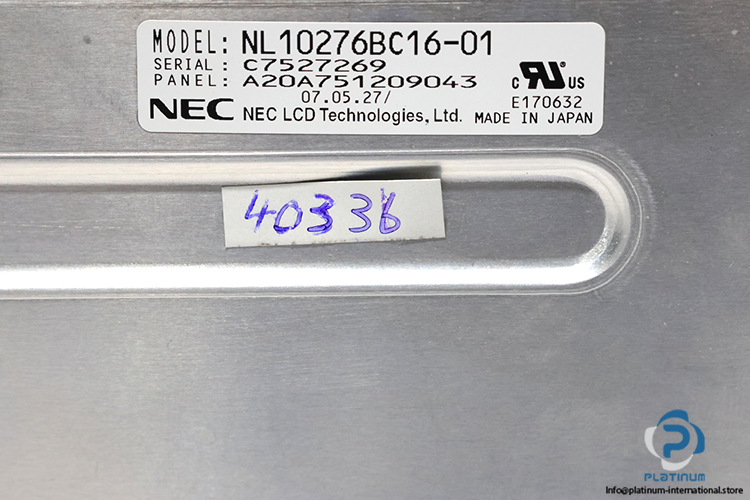

Serial No.C7527269
Panel No.A20A751209043
Display Size8.4 inches (21 cm)
Resolution1024 × 768 Pixels (XGA)
Signal InterfaceLVDS (Low-Voltage Differential Signaling)
Supply Voltage3.3 V
Power Consumption9.8 W
Viewing Angle85°

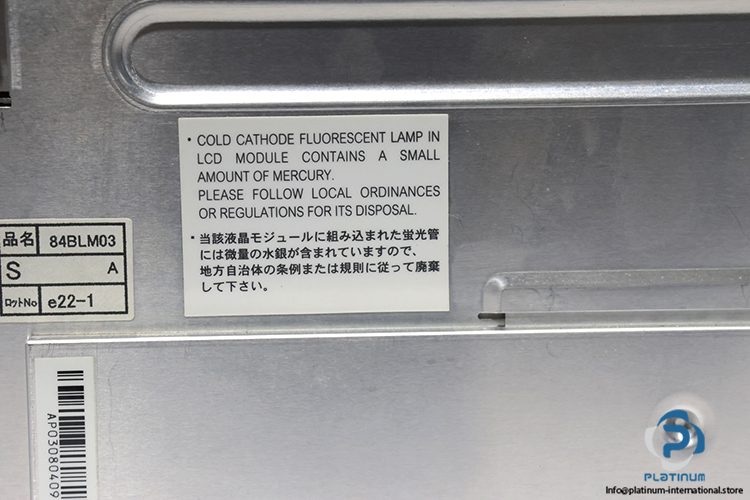

Backlight TypeCCFL (Cold Cathode Fluorescent Lamp)
Backlight4 CCFL
Brightness400 CD/m²
Contrast Ratio400:1
Operating Temperature0 … 55 °C
Dimensions200 x 152 x 16.5 mm
Stock KeyCON003
ConditionUsed
SKU1104028
Weight0,5
