Negele NSK-358.1-M12-EP-SIG Continuous Level Sensor
Negele NSK358.1M12EPSIG Continuous Level Sensor “ Precisely monitors levels in metallic vessels up to 3 m, supports highly adhesive media, and features a 4“20 mA output. Engineered for reliable, real-time measurement under demanding process conditions.
Negele Continuous Level Sensor NSK358.1M12EPSIG
Manufacturer: Negele
Type: Continuous Level Sensor
Model: NSK358.1M12EPSIG
The Negele Continuous Level Sensor NSK358.1M12EPSIG is designed for precise and reliable level monitoring in metallic vessels up to 3 m in height. It is particularly suitable for highly adhesive and pasty media, ensuring accurate readings even under demanding conditions. This sensor requires a minimum conductivity of 1 µS/cm (e.g., distilled water) and is best used for media with homogeneous conductivity.
Application:
- Continuous level monitoring in metallic vessels up to 3 m in height
- Ideal for highly adhesive and pasty media
- Min. conductivity 1 µS/cm (e.g. distilled water)
- Suitable for media with homogeneous conductivity
Technical Specifications:
- Process Pressure: max. 10 bar
- Power Supply: 18 to 36 V DC

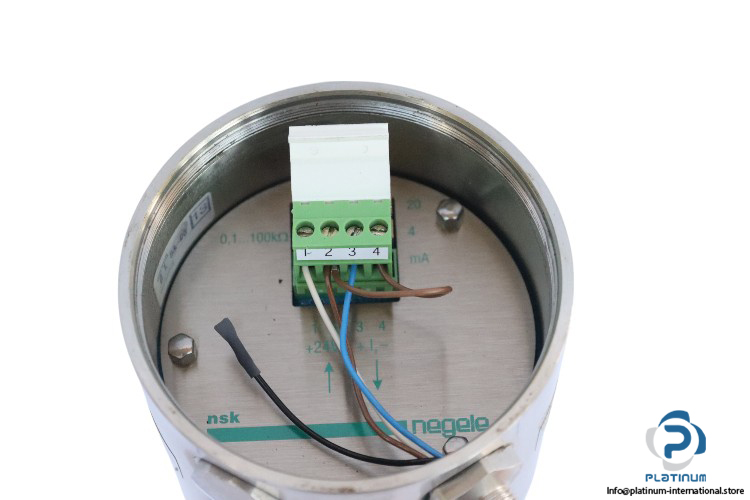

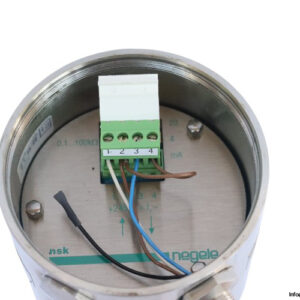

- Electrical Connection: M12 plug, 4-pin
- Output Signal: Analog 4 to 20 mA, 2-wire loop
- Response Time: < 50 ms
- Protection Degree: IP69K
- Working Temperature Range: 0 to 150 °C
- Ambient Temperature Range: 0 to 50 °C

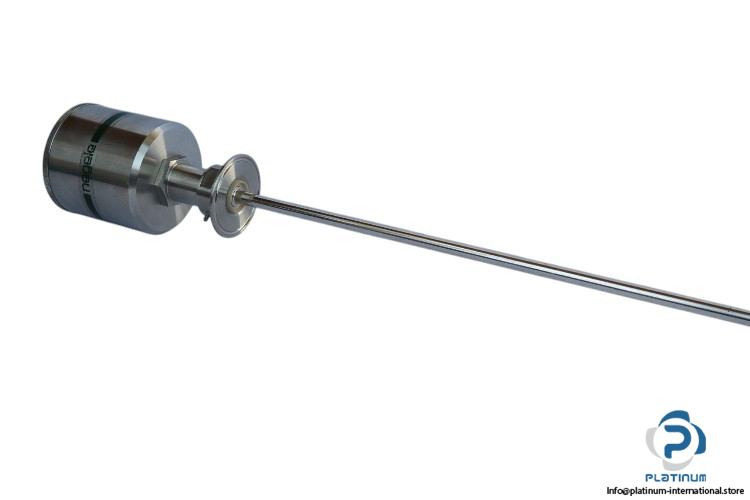

- Rod Length: 800 mm
- Rod Diameter: 10 mm
This robust sensor delivers reliable performance across a wide range of temperatures and pressures. The analog 4 to 20 mA output and fast response time (< 50 ms) make it ideal for real-time level monitoring in applications with demanding process requirements.
