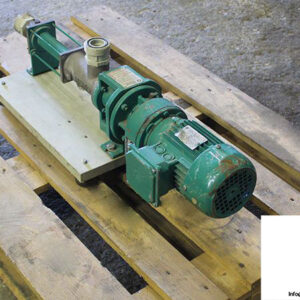

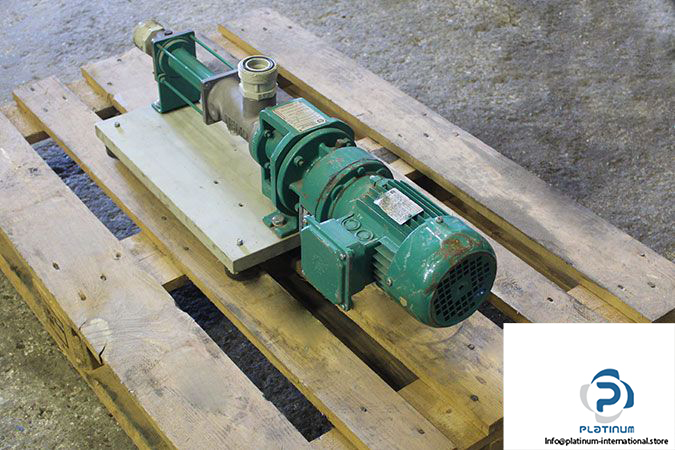

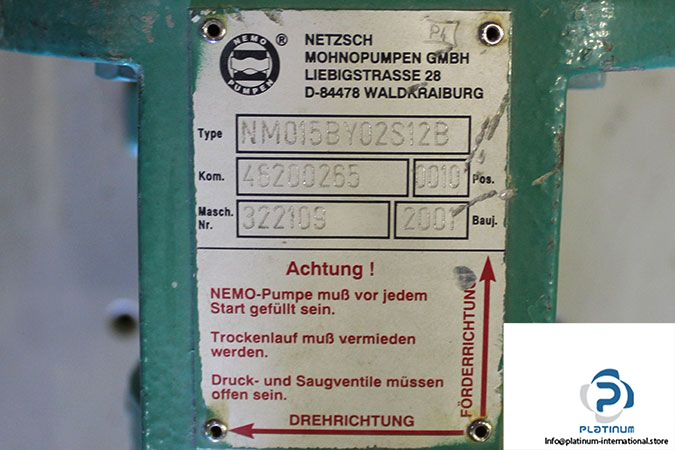

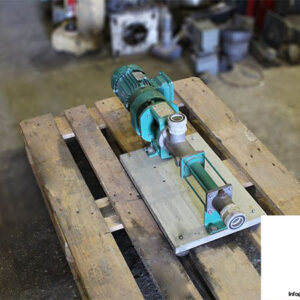

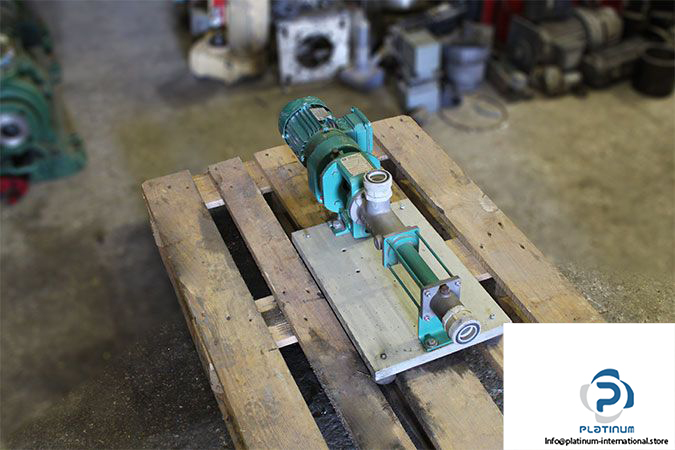

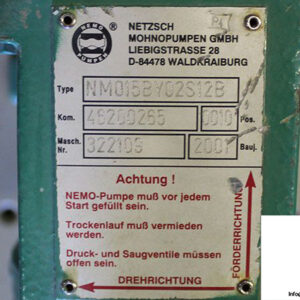

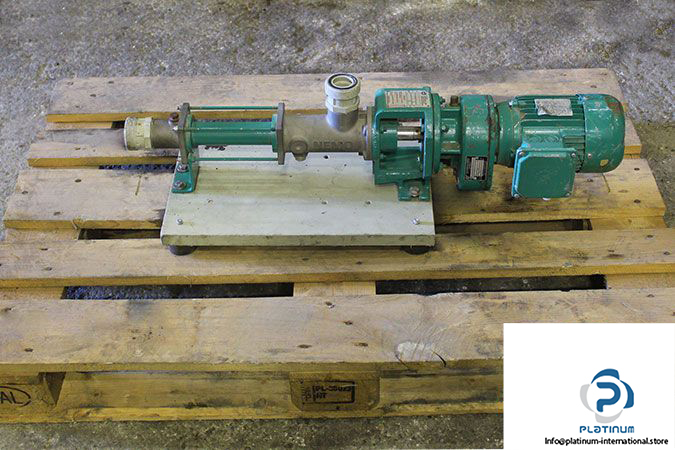

Netzsch NM015BY02S12B Progressing Cavity Pump

Manufacturer: Netzsch Pumps

Type: Progressing Cavity Pump

Model: NM015BY02S12B

External Diameter: 28 mm

Oil Per Joint: 1.5 cm³

Rated Torque: 300 Nm

Rated Force: 550 N

Pump Size: 15

Nominal Diameter: 32 DN

No. Stages: 2

Max. Permissible Pressure Difference Anti–Clockwise: 12 bars

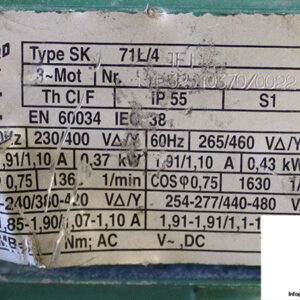

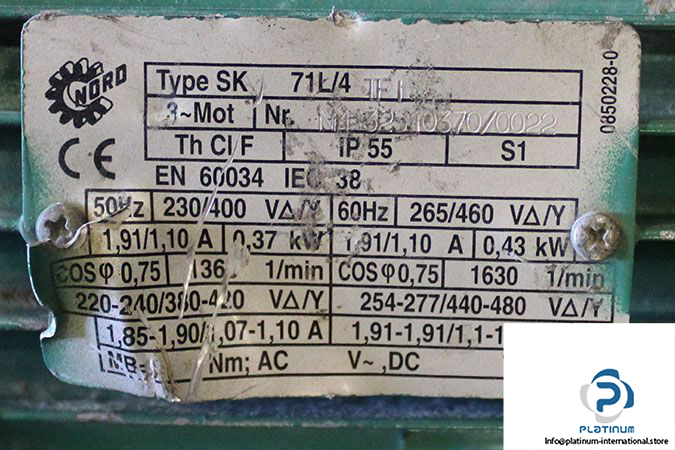

Attachment: NORD 71L/4 TFI 3 PHASE ELECTRIC MOTOR

Manufacturer: NORD

Type: 3 Phase Electric Motor

Model: 71L/4 TFI

At 50 Hz

Star connection

• Rated Voltage: 400 V
• Rated Current: 1 A
• Permissible Voltage Range: 380…420 V
• Permissible Current Range: 07…1.1 A

Delta Connection

• Rated Voltage: 230 V
• Rated Current: 91 A
• Permissible Voltage Range: 220…240 V
• Permissible Current Range: 85…1.9 A

Rated Power: 0.37 kW

Rated Speed: 1360 min^-1

Power Factor: 0.75

At 60 Hz

Star connection

• Rated Voltage: 460 V
• Rated Current: 1 A
• Permissible Voltage Range: 440…480 V
• Permissible Current Range: 1…1.1 A

Delta Connection

• Rated Voltage: 265 V
• Rated Current: 91 A
• Permissible Voltage Range: 254…277 V
• Permissible Current Range: 91…1.91 A

Rated Power: 0.43 kW

Rated Speed: 1630 min^-1

Power Factor: 0.75

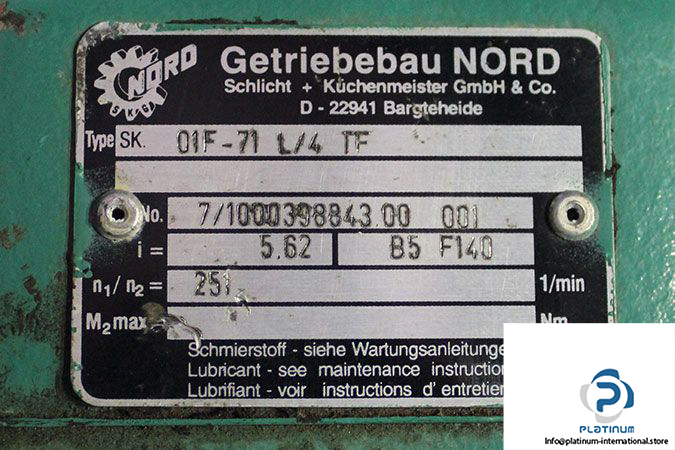

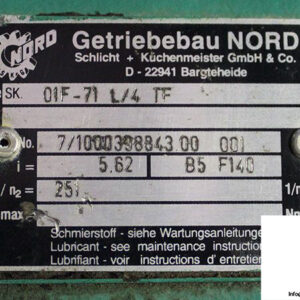

Attachment: NORD 01F-71L/4 TF GEARED MOTOR

Manufacturer: NORD

Type: HELICAL GEARED MOTOR

Model: 01F-71L/4 TF

Transmission Ratio: 5.62

Mounting Position: B5

Protection Class: IP55

Duty: S1

Thermal Class: F

Gross Weight: 25.5 kg
