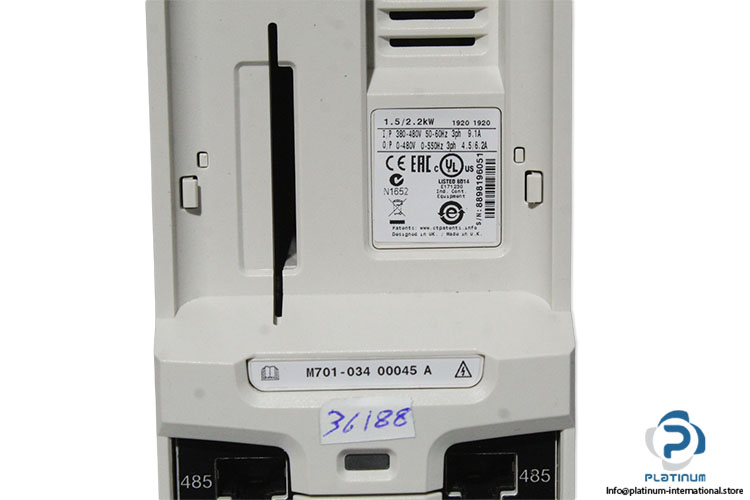

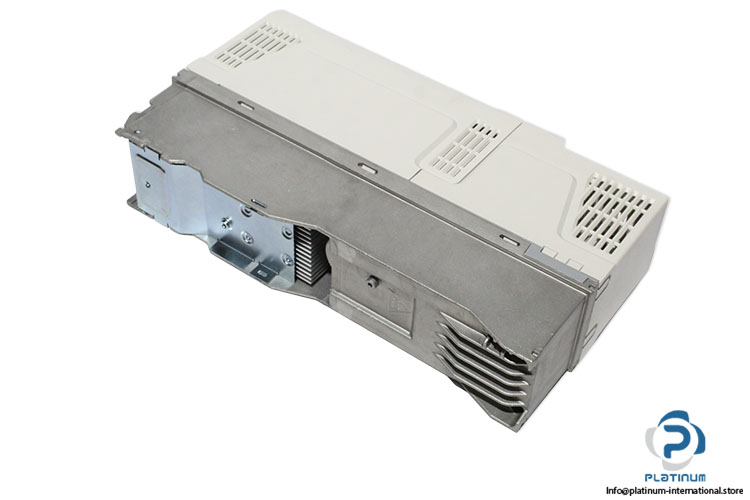

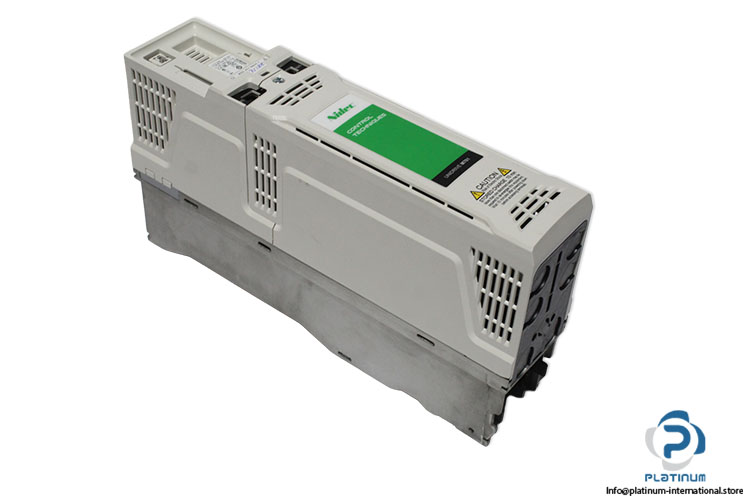

Nidec M701-034 00045 A Servo Motor Drive
New
In stock1 unitReady to ship
1 299,99$
AC Drive Nidec Control Techniques Unidrive M701 AC drive for induction and permanent magnet motors, 380–480 V input, 0–550 Hz output, ideal for industrial automation applications.
380480ACAutomationControlDriveinductionIndustrialM701MagnetmotorNidecPermanentSpeedSystemTechniquestoUnidriveVVariableVFD
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

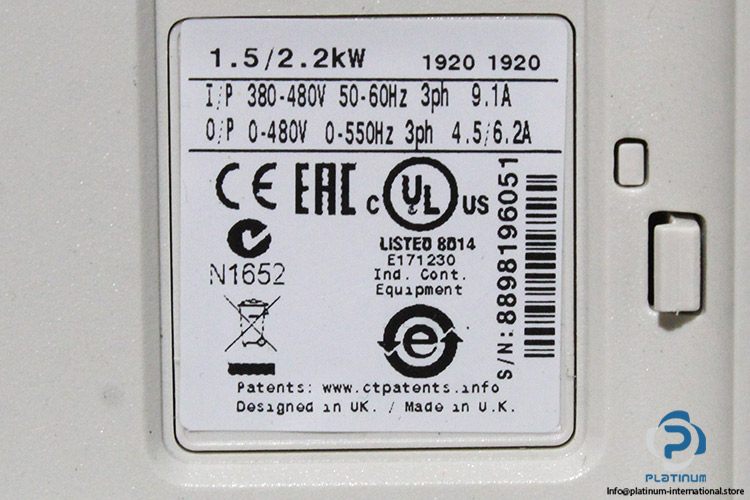

| Brand | Control Techniques |
| Serial No. | 8898196051 |
| Series | Unidrive M701 |
| Ref. No. | 1920 |
| Typical Application | Fans, Pumps, Conveyors, Compressors, Extruders, Winders, Hoists, Packaging, Printing, Cutting |
| Input Supply Voltage | 380 to 480 V AC-3-phase |
| Input Frequency | 50/60 Hz |
| Derivative Product Line Voltage | 485 V |
| Input Current Rating | 9.1 A |
| Power (Constant Torque) | 1.5/2.2 kW |
| Power Format | AC in AC out (with internal choke) |
| Output voltage Rating | 0 to 480 V AC-3-phase |
| Output Frequency | 0/550 Hz |
| Output Current Rating | 4.5/6.2 A |
| Standard | CE, EAC, cULus |
| Feedback Option Cards | SI-ENCODER, SI-UNI-ENCODER |
| Feedback Type | Absolute Encoder, Incremental Encoder, Resolver |
| Encoder Connection | Standard |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1097280 |
| Weight | 3,48 |
