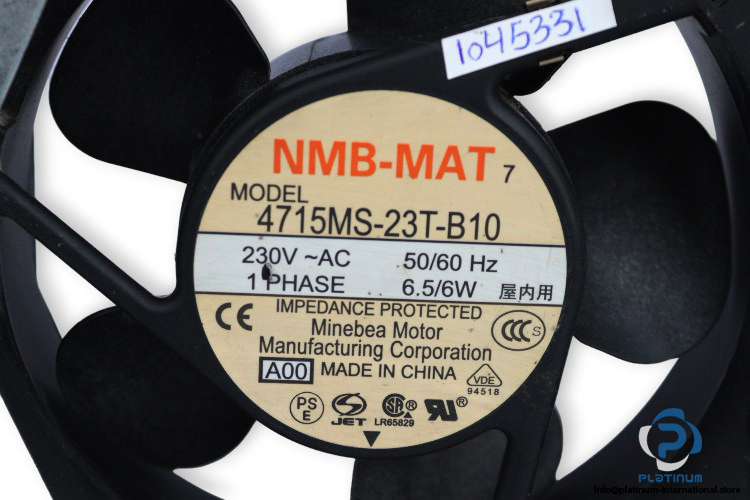

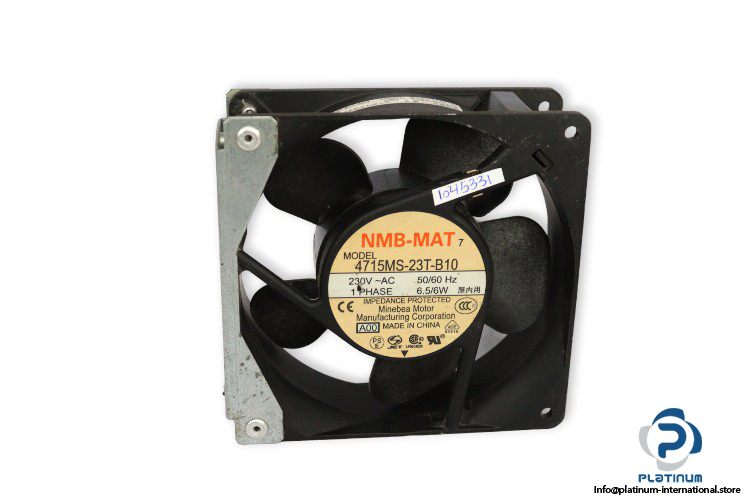

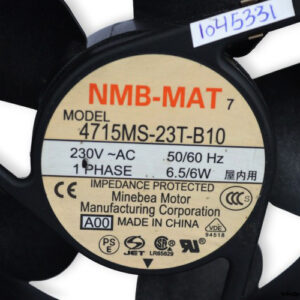

NMB 4715MS-23T-B10 Axial FAN

Name: NMB 4715MS-23T-B10 AXIAL FAN
SKU: 1045331
Availability: LimitedAvailability

Used

In stock1 unitReady to ship

Manufacturer: NMB Type: Axial Fan Model: 4715MS23TB10 Part. No: 4715MS-23T-B10-A00

Manufacturer

NMB

SKU

1045331

Category

Axial Fans & Fan Filter Units

Condition

Used

Axial Ebmpapst Fans Industrial

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: NMB
Type: Axial Fan
Model: 4715MS23TB10
Part. No: 4715MS-23T-B10-A00

Frame Shape: Square Frame
No. of Blades: 5

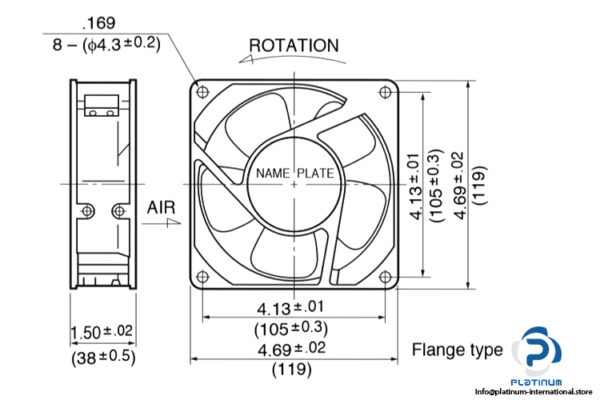

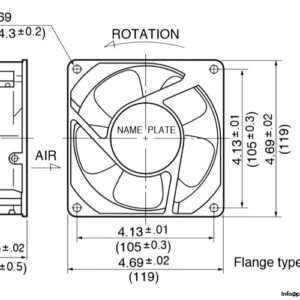

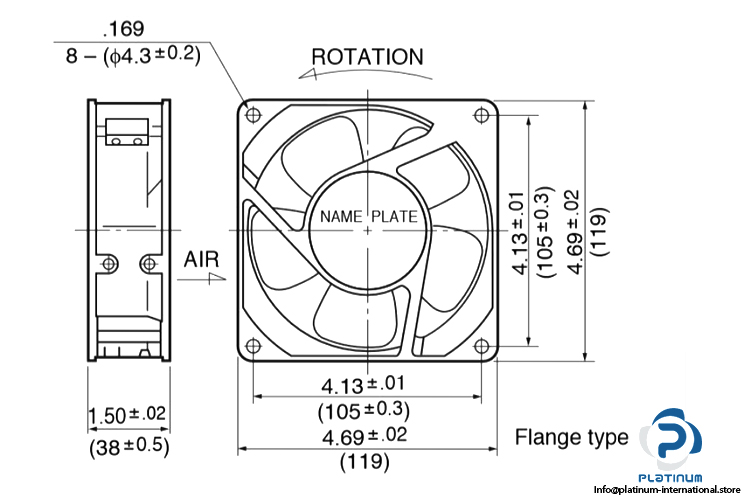

Dimensions (mm): 119x119x38
Direction: Push
Voltages (V AC): 230
Bearing: Ball Bearing
Power Rating (W): 6-6.5
Speed (rpm): 1450
Flow Rate (m3/h): 83.486
Flow Rate (CFM): 49.4
Current (A): 0.05
Frequency (Hz): 50/60
Inverter: without Inverter
Number of Wires: 2
Blade material / Fan housing material: Plastic / Metal

Specification	Value
Weight	0,6 kg
Condition	Used
Manufacturer	NMB
No. of Wires	2
Type of Product	Axial Fan
Frame Shape	Square Frame
No. of Blades	5
Inverter	Without Inverter
Blade Material	Plastic
Fan Housing Material	Metal
Dimensions [mm]	119x119x38
Direction	Push
Voltage Type	AC
Frequency [Hz]	50/60
Bearing	Ball Bearing
Voltage [V]	230
Current [A]	0.05
Shelf No.	240428
Power [kW]	0.006-0.0065
Part No.	4715MS-23T-B10-A00
Speed [RPM]	1450
Flow Rate [m3/h]	83.486
Flow Rate CFM	49.4
