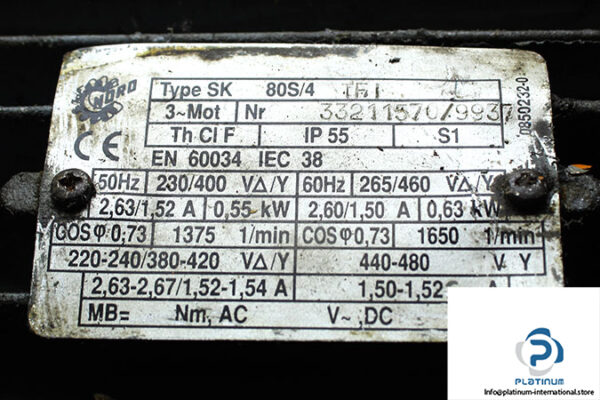

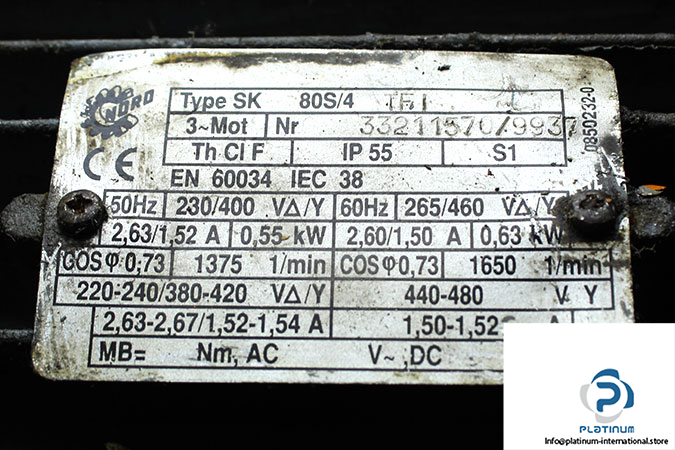

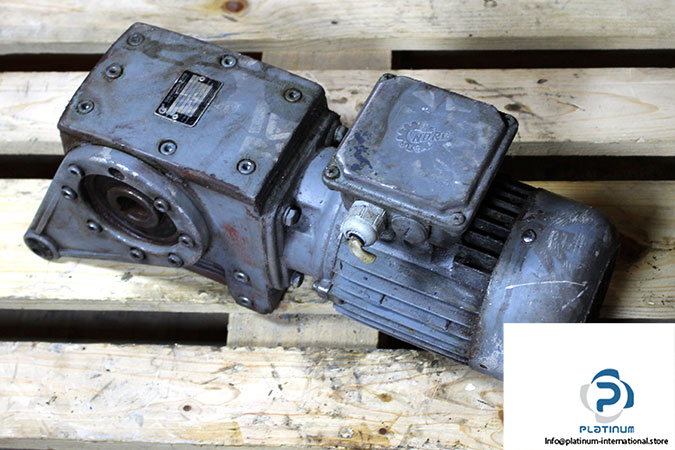

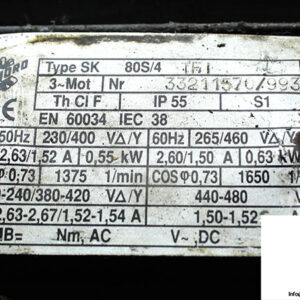

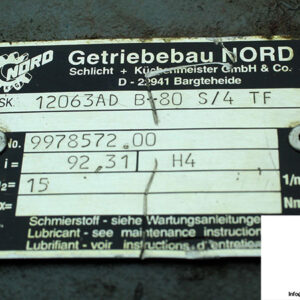

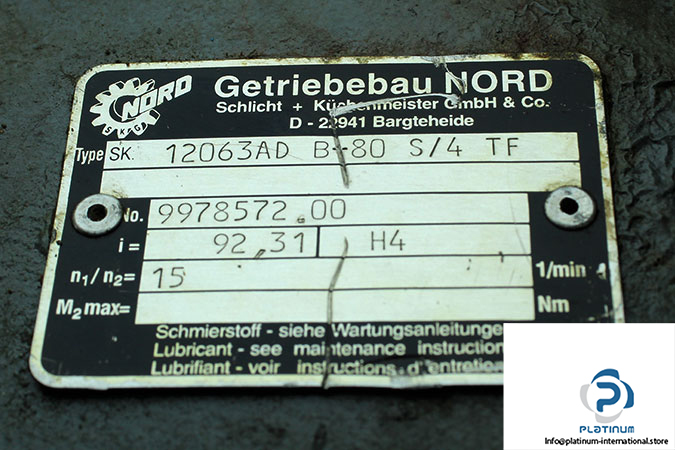

Nord SK 12063AD B-80 S/4 TF Gearmotor

Manufacturer: Nord
Type: Gear Motors
Model: SK12063ADB-80S/4TF
Model Motor: SK80S/4

Speed [r/min]: 1375/1650
Ratio [i]: 92.31
Rated Power [kW]: 0.55/0.63
Frequency [Hz]: 50/60
Rated Voltage at 50Hz [V]: 220-240/380-420 Delta/Star
Rated Voltage at 60Hz [V]: 440-480 Star
Rated Current at 50Hz [A]: 2.63-2.67/1.52-1.54
Rated Current at 60Hz [A]: 1.5-1.52
Cos Phi: 0,73-0.73
Duty: S1
Thermal Class: F
Enclosure [IP]: 55
Weight [kg]: 26,8
