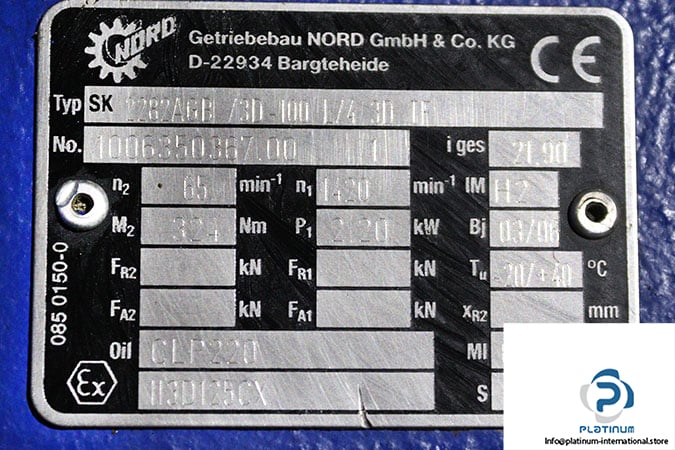

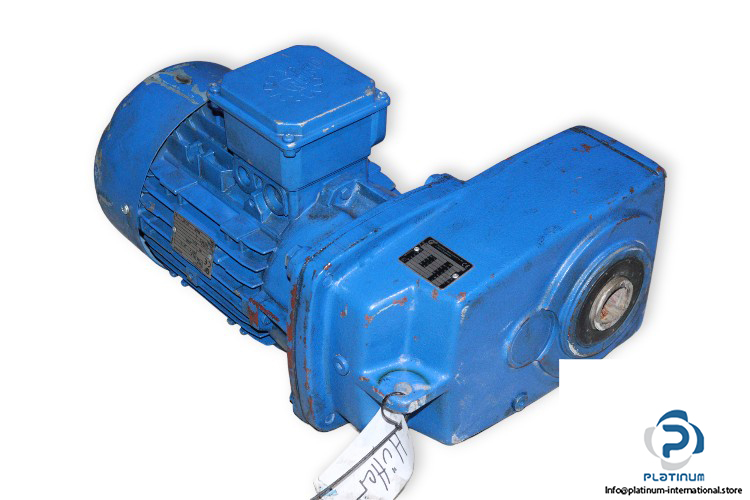

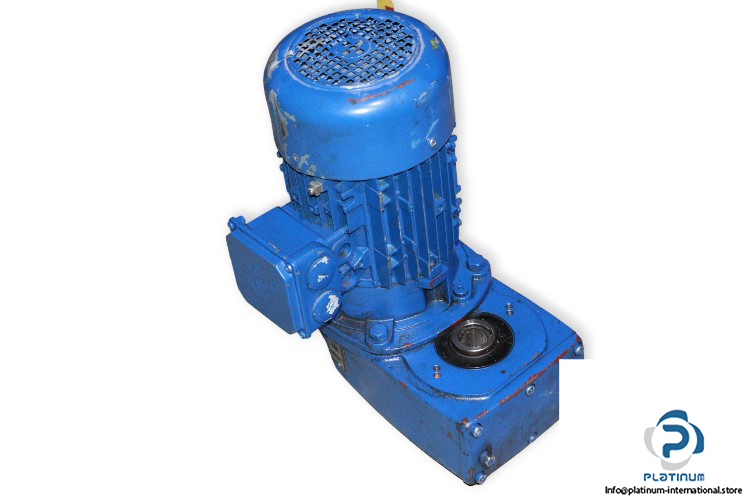

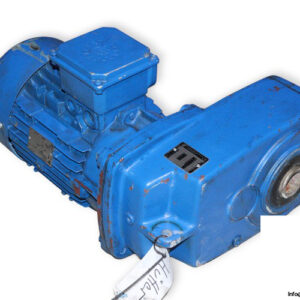

Nord SK-2282AGB/3D-100 L/4 3D TF Gear Motor

Manufacturer: Nord
Type: Gear Motors
Model: SK2282AGB/3D-100L/43DTF

Ratio [i]: 21.9
Output Speed [rpm]: 65
Rated Power [kW]: 2.2
Rated Torque [Nm]: 324
Mounting Position [IM]: H2
Duty: S1
Oil: CLP 220
Motor Protection: II3D125CX [Ex]

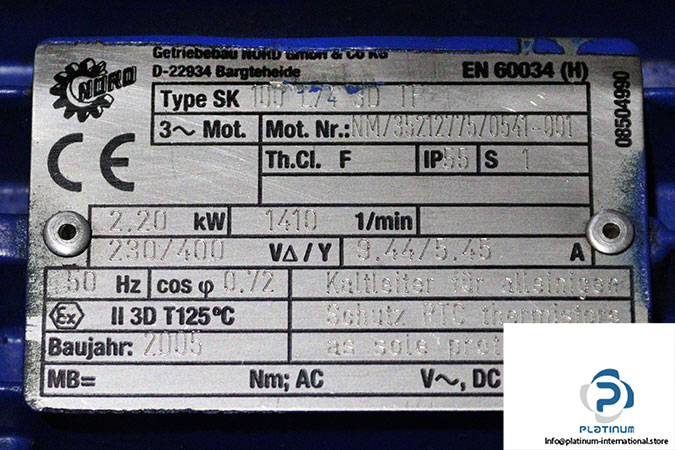

Attachment: Nord SK100L/4 3D TF 3 Phase Electric Motor
Manufacturer: Nord
Type: 3 Phase Electric Motor
Model: SK100L/43DTF
Rated Voltage [V]: 230/400 Delta/Star
Rated Power [kW]: 2.2
Rated Current [A]: 9.44/5.45
Rated Speed [rpm]: 1410
Power Factor: 0.72
Frequency [Hz]: 50
Protection Class [IP]: 55
Duty: S1
Insulation Class: F
Motor Protection: II3DT125C° [Ex]
