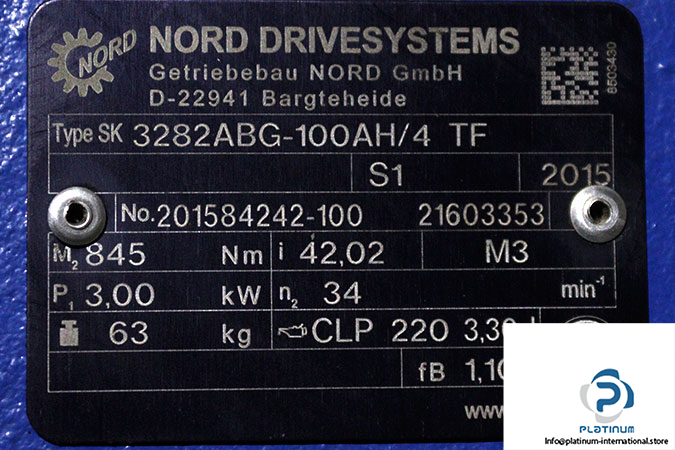

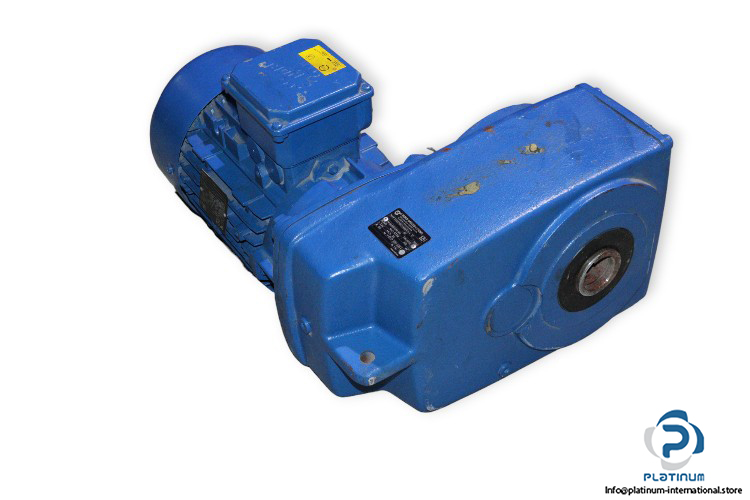

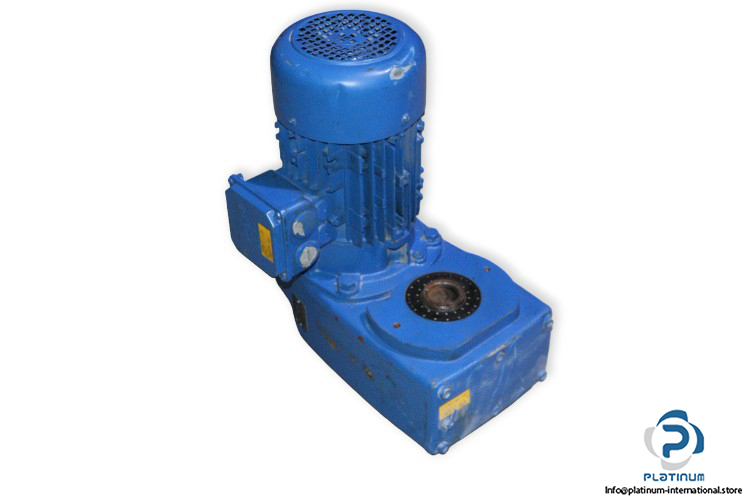

Nord SK 3282ABG-100AH/4 TF Gear Motor

Manufacturer: Nord
Type: Gear Motors
Model: SK3282ABG-100AH/4TF

Ratio [i]: 40.02
Output Speed [rpm]: 34
Rated Power [kW]: 3.0
Rated Torque [Nm]: 845
Mounting Position [IM]: M3
Duty: S1
Oil: CLP 220
Quantity [L]: 3.3

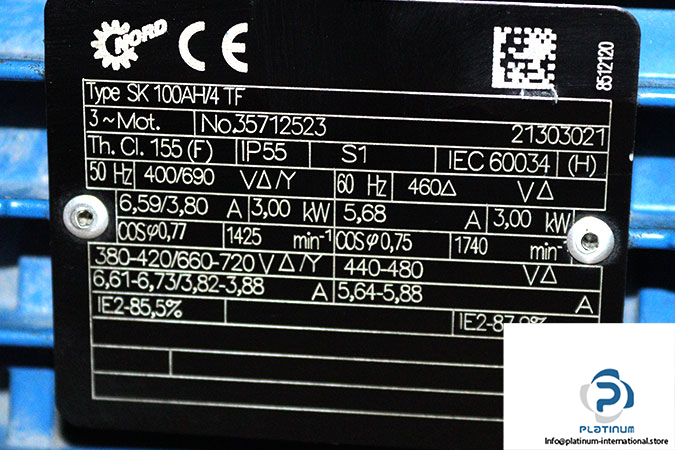

Attachment: Nord SK 100AH/4 TF 3 Phase Electric Motor
Manufacturer: Nord
Type: 3 Phase Electric Motor
Model: SK100AH/4TF
Rated Voltage [V]: 400-690/460 Delta-Star
Rated Power [kW]: 3.0
Rated Current [A]: 6.59-3.8/5.68
Rated Speed [rpm]: 1425-1740
Power Factor: 0.77/0.75
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Duty: S1
Insulation Class: F
