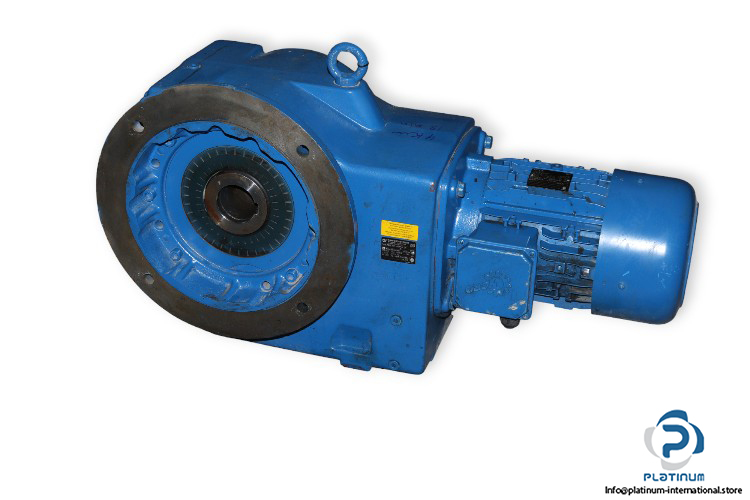

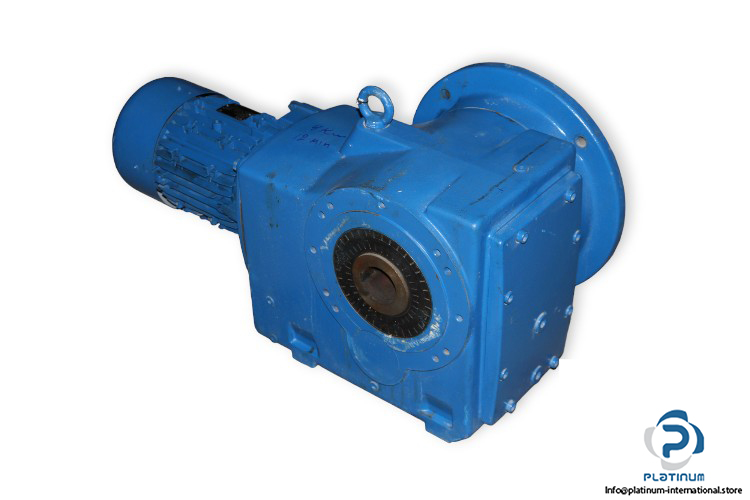

Nord SK 9052.1AF-132SP/4 TF Gear Motor

Manufacturer: Nord
Type: Gear Motors

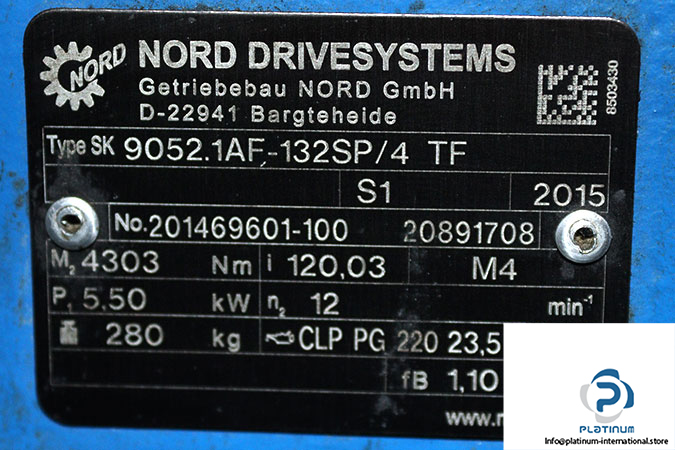

Model: SK9052.1AF-132SP/4TF

Ratio [i]: 120.03
Output Speed [rpm]: 12
Rated Power [kW]: 5.5
Rated Torque [Nm]: 4303
Mounting Position [IM]: M4
Duty: S1
Oil: CLP 220
Quantity [L]: 23.5
Attachment: Nord SK112MH/4 TF 3 Phase Electric Motor
Manufacturer: Nord
Type: 3 Phase Electric Motor

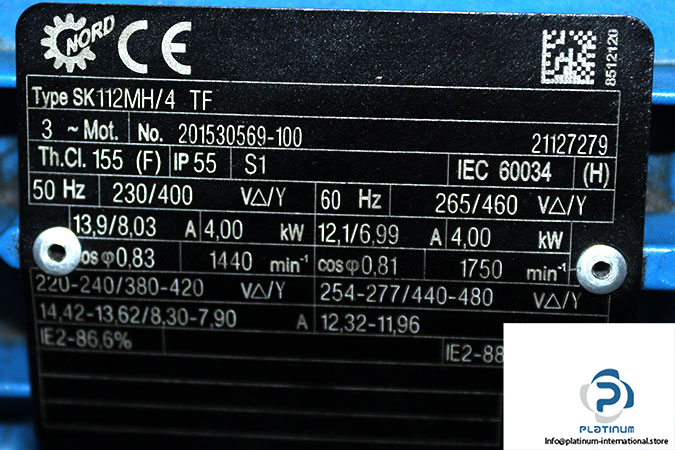

Model: SK 112MH/4TF
Rated Voltage [V]: 230-400/265-460 Delta-Star
Rated Power [kW]: 4.0/4.0
Rated Current [A]: 13.9-8.03/12.1-6.99
Rated Speed [rpm]: 1440/1750
Power Factor: 0.83/0.81
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Duty: S1
Insulation Class: F
