Norgren F74G-4GN-AP3 General Purpose Filter
New
In stock1 unitReady to ship
General Purpose Filter

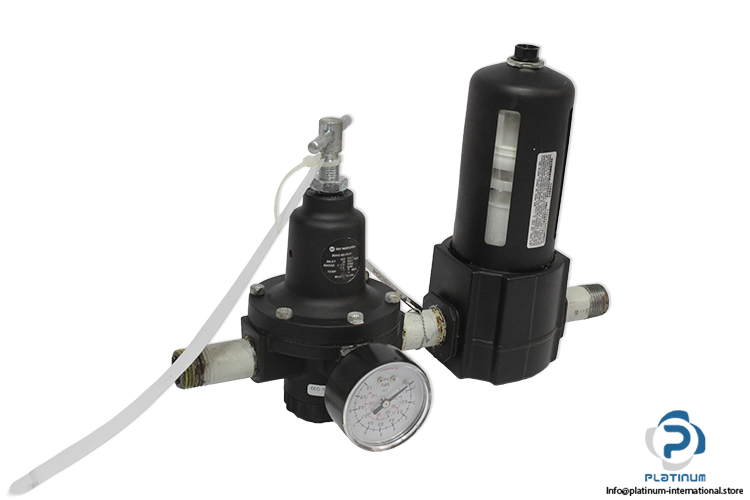

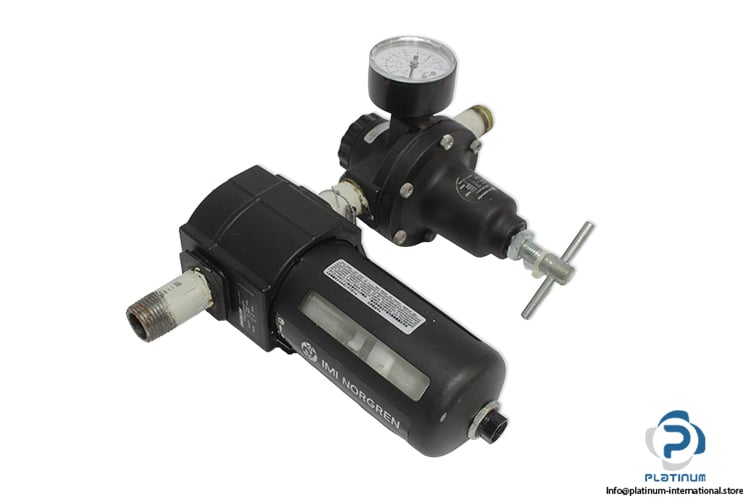

IMI Norgren Excelon general purpose filter with automatic drain and 40 μm filtration, supplied with a high flow pressure regulator for industrial compressed air systems.AirCompressedExcelonF74G4GNAP3filterflowGeneralHighIMIIndustrialNorgrenPneumaticPreparationPressurePurposeregulatorUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

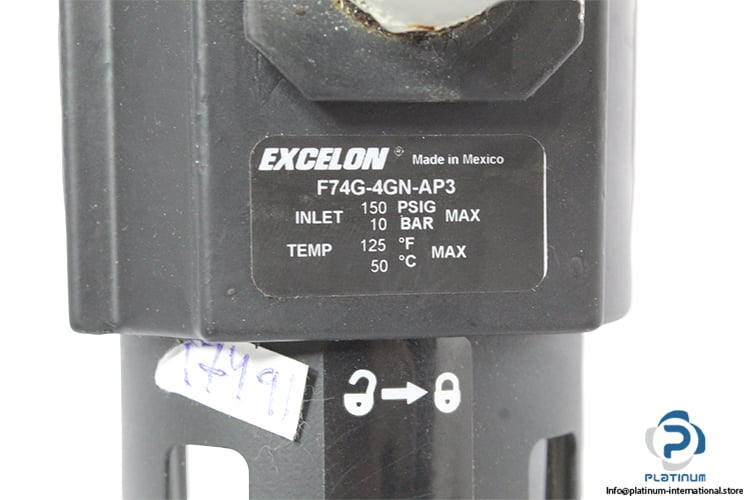

IMI Norgren F74G4GNAP3 General Purpose Filter
A high-quality general purpose pneumatic filter manufactured by IMI Norgren, part of the Excelon series, designed to remove solid particles and condensate from compressed air systems. This filter ensures clean air supply, protects downstream components, and supports stable operation in industrial pneumatic applications.
Manufacturer: IMI Norgren
Type: General Purpose Filter
Model: F74G4GNAP3
Series: Excelon
Materials
Dimensions
Materials “ Pressure Regulator
Dimensions “ Pressure Regulator
| Medium | Compressed Air |
| Operating Temperature | -34 to 50 °C |
| Port Size | G 1/2 |
| Drain Type | Automatic |
| Filter Element | 40 μm |
| Maximum Inlet Pressure | 10 bar |

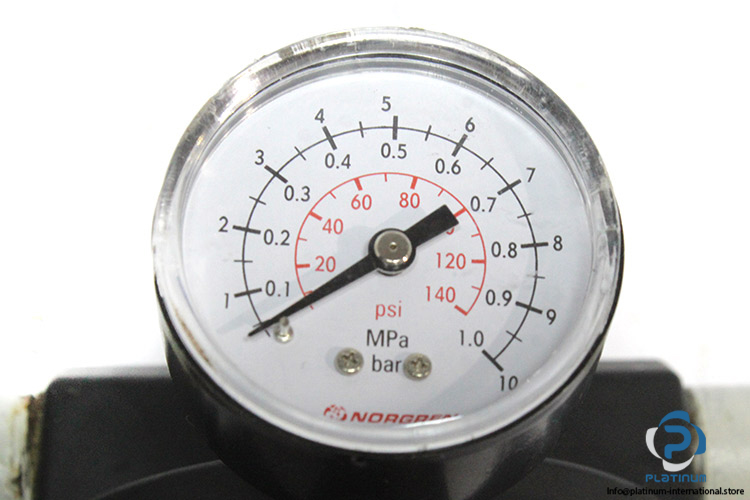

| Pressure Gauge Range | 0 to 10 bar |
| Body | Aluminum Alloy |
| Bowl | Polycarbonate |
| Elastomers | Nitrile Rubber (NBR), Chloroprene Rubber (CR) |
| Filter Element | Polypropylene |
| Height | 74 mm |
| Length | 186 mm |
| Width | 80 mm |

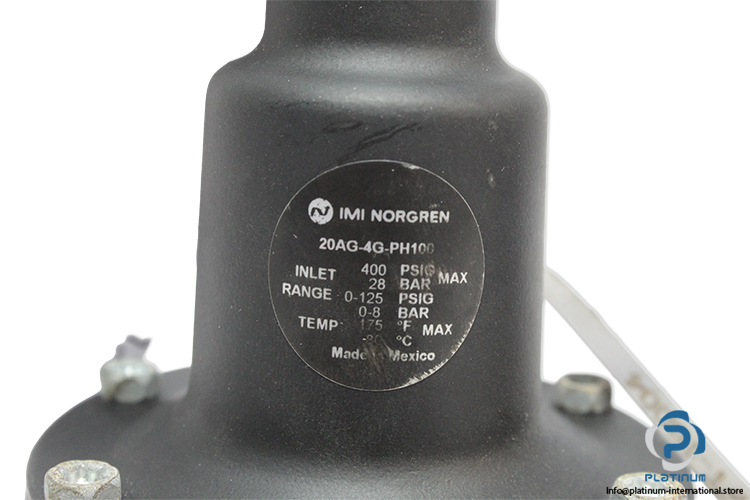

| Attachment “ NORGREN 20AG-4G-PH100 HIGH FLOW PRESSURE REGULATOR Manufacturer | IMI Norgren |
| Medium | Compressed Air |
| Operating Temperature | -20 to 80 °C |
| Port Size | G 1/2 |
| Adjustment | T-Bar |
| Maximum Inlet Pressure | 28 bar |
| Outlet Pressure Adjustment | 0 to 8 bar |
| Relieving / Non-Relieving | Non-Relieving |
| Flow Rate | 60 dm³/sec, 127 scfm |
| Adjusting Knob | Zinc Plated Steel |
| Body | Zinc Alloy |
| Bonnet | Aluminum Alloy |
| Elastomers | Synthetic Rubber |
| Height | 162 mm |
| Length | 83 mm |
| Width | 86 mm |
