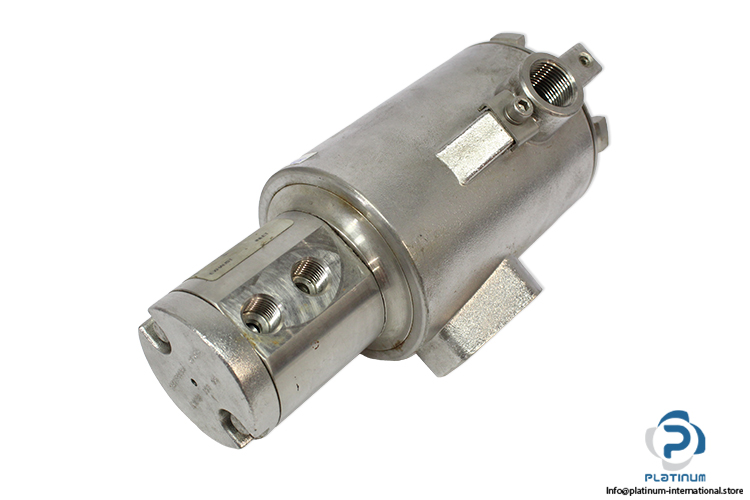

Norgren Maxseal ICO4S Y123AA1H1BS Direct Acting Solenoid Valve
New
In stock1 unitReady to ship
655,55$
Direct Acting Solenoid Valve The Norgren / Thompson Valves Maxseal ICO4S is a stainless steel 3/2-way direct acting solenoid valve engineered for industrial process control and hazardous environments. It features a 110 V coil, 1/4 NPT ports, IP66/IP68 protection, and ATEX, IECEx, and FM approvals.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | Y123AA1H1JS |
| Serial No. | 49712/X7 |
| Series | ICO |
| Range | MAXSEAL ICO4S |
| Function | 3/2 Way |
| Actuation | Electrically |
| Inlet Pressure Range | 0 … 20 bar (290 psi) |
| Operating Pressure | 12 bar, 174 psi |
| Supply Voltage | 110 V |
| Power Consumption | 6.5 W |
| Frequency | 50/60 Hz |
| Nominal Diameter | 6 mm |
| Port Size | 1/4 NPT |
| Material | Stainless Steel |
| Protection Class | IP66 / IP68, Type 4X |
| Operating Temperature | -50 ... 90 °C |
| Dimensions | 82 x 210 x 82 mm |
| Hazardous Area Approval | ATEX, IECEx, FM Approved |
| Explosion Protection | Ex db IIC T6 Gb, Ex db IIC T4 Gb, Ex tb IIIC T130°C Db |
| Condition | New |
| SKU | 1102604 |
| Weight | 4,77 |
