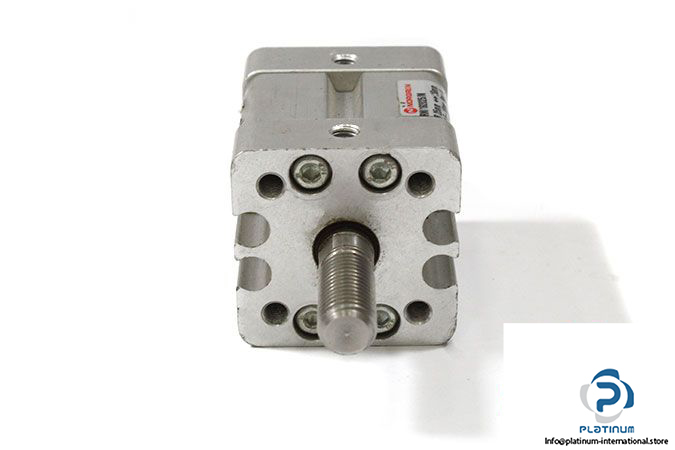

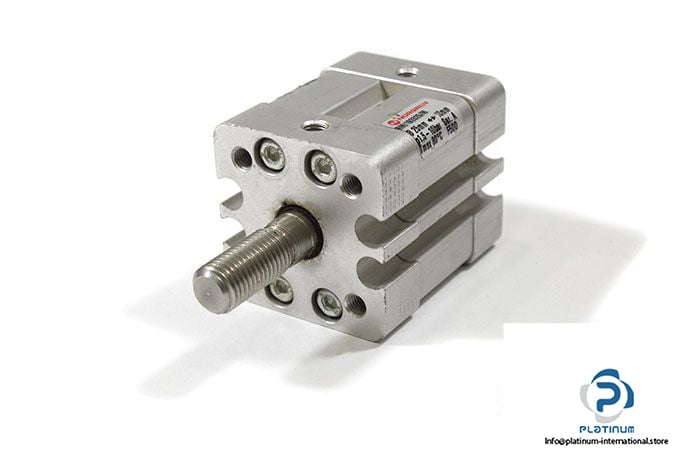

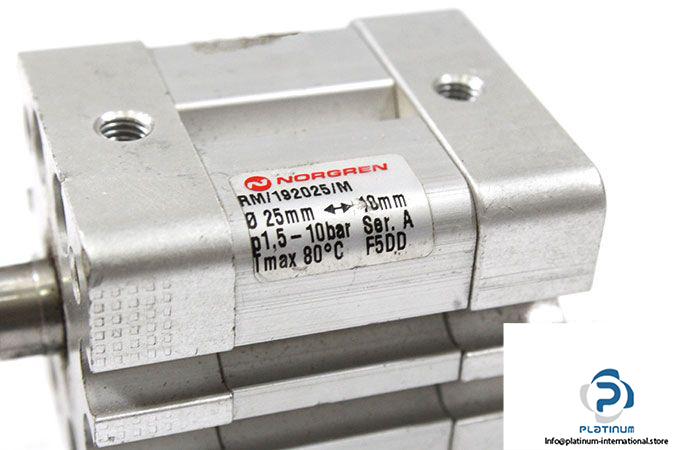

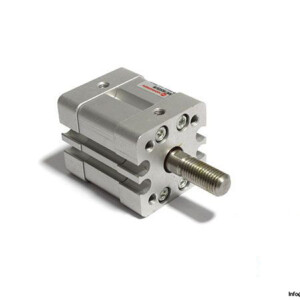

Norgren RM/192025/M Compact Cylinder

Manufacturer: IMI-Precision Norgren

Type: Double Acting Compact Cylinder

Model: RM/192025/M

Materials

    Barrel material: Anodised aluminium

    Material piston rod: Stainless steel

Stroke Length: 10 mm

Bore diameter: 25 mm

Port Size: M5

Piston Rod Thread: M8 x 1.25

Operating Pressure: 1.5 … 10 bar

Max. Energy:  0,3 j

Theoretical thrusts at 6 bar out stroke: 188 N

Theoretical thrusts at 6 bar in stroke: 141 N

Variants: standard

Mode Of Operation: Double Acting

Temperature: -5 … 80 °C

Weight:  0.16 kg
