Norgren RM/8020/M/125 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
Norgren RM8020M125 is a compact double-acting pneumatic cylinder with a 20 mm piston and 125 mm stroke. Built with stainless steel components and a G1/8 port, it’s ideal for both lubricated and non-lubricated air systems.125ActingActuatorAirAutomationCompressedCylinderDoubleG1/8HighIndustrialISOmmNorgrenPneumaticPrecisionPURRM8020M125SealsstainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

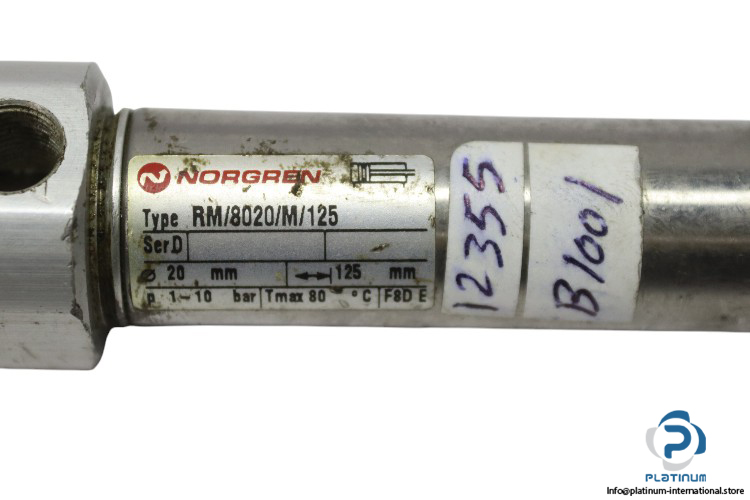

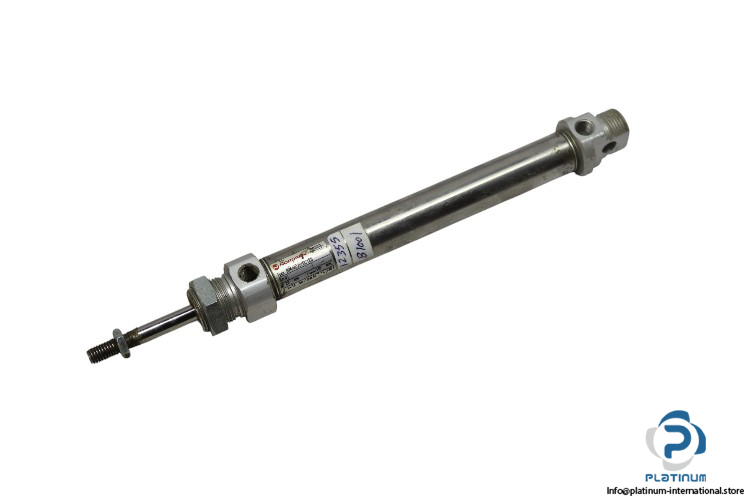

Norgren RM8020M125 ISO Cylinder
The Norgren RM8020M125 is a compact ISO-compliant pneumatic cylinder designed for industrial applications requiring precise, double-acting motion. With a 20 mm piston diameter and a 125 mm stroke, it supports both lubricated and non-lubricated compressed air, ensuring dependable performance across a wide range of conditions.
Manufacturer: Norgren
Type: ISO Cylinder
Model: RM8020M125
| Media | Compressed Air, Filtered, Lubricated or Non-Lubricated |
| Piston Diameter | 20 mm |
| Stroke | 125 mm |
| Pneumatic Connection | G1/8 |
| Operation Mode | Double Acting |
| Piston Rod Thread | Male |
| Shape | Circular |
| Operating Pressure | Max. 10 bar |
| Operating Temperature | -10 to 80 °C |
| Material “ Barrel | Stainless Steel |
| Material “ End Covers | Clear Anodized Aluminum Alloy |
| Material “ Piston Rod | Stainless Steel |
| Material “ Buffer | PUR |
| Material “ Wiper | PUR |
| Material “ Seals | NBR |
