Norgren RM/925/250 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
NORGREN ISO Cylinder RM/925/250 is designed for pneumatic applications, featuring a 63.5 mm bore diameter, 250 mm stroke, and double operation mode. It comes with a G 3/8 pneumatic connection and operates at pressures ranging from 2 to 10 bar.2503/863.5AirboreCompressedconnectionCylinderdiameterDoubleEndGIndustrialISOmalemmModeNorgrenOperationPistonPneumaticRM/925/250RODShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

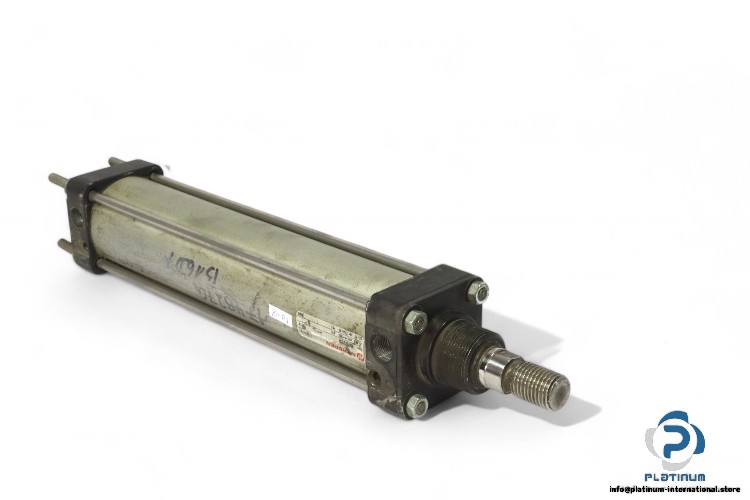

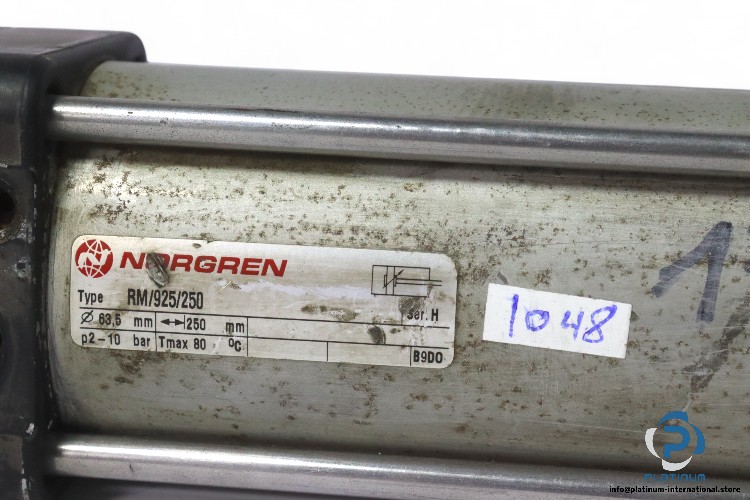

NORGREN ISO Cylinder RM/925/250
The NORGREN ISO Cylinder RM/925/250 is designed for high-performance pneumatic applications. Built to withstand high pressures and provide reliable operation, it features a square shape with male piston rod end and is suitable for a variety of industrial systems using compressed air.
Manufacturer: NORGREN
Model: RM925250
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63.5 mm
- Stroke: 250 mm
- Bore x Stroke: 63.5 x 250 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 385 mm
- Pneumatic Connection: G 3/8
- Pressure: 2 / 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
