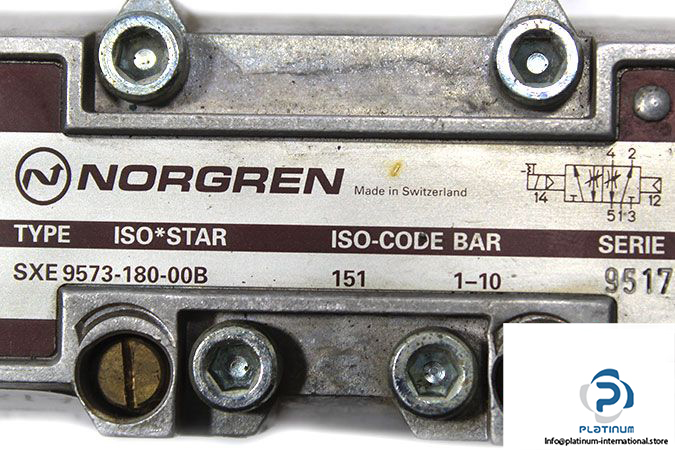

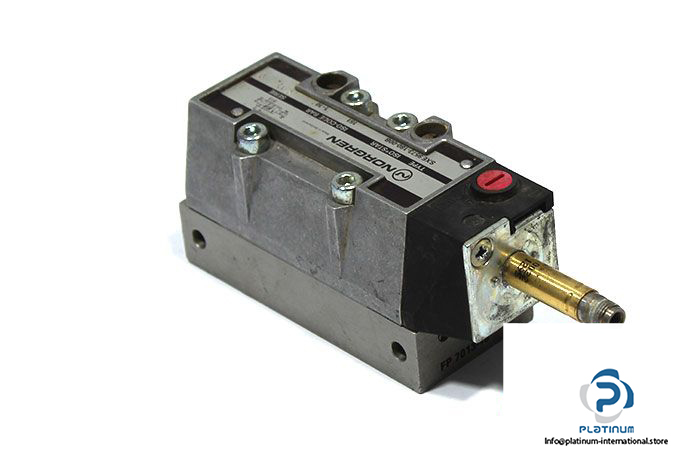

Norgren SXE 9573-180-00B Single Solenoid Valve

Manufacturer: IMI-PRECISION NORGREN

Type: Single Solenoid Valve

Model: SXE9573-180-00B

Type of Actuation: Electrically

Operating Pressure: 1…10 bar

Fluid: Air

Plug Diameter: 9 mm

Flow Rate: 1230 l/min

Ambient Temperature: -15…50 °C

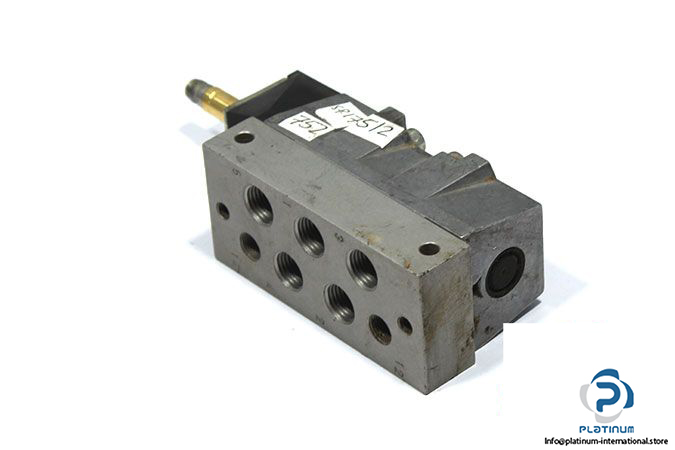

Pneumatic Connection: Sub-Based

Single Station Sub-Base Side Ported with Pilot Ports

• 1-2-3-4-5: G1/4
• 12-14: G1/8

Protection Class: IP65

Material: Die-Cast Aluminum

Station Sub-Based Code: FP 7013-18

Weight: 0.4 kg
