Novotechnik TLH 100 Position Transducers Potentiometric

In stock1 unitReady to ship

333,33$

Position Transducer

The NOVOtechnik TLH100 is a potentiometric position transducer with a 102mm electrical stroke, anodized aluminum housing, and excellent repeatability and linearity. Suitable for industrial applications with a wide operating temperature range.

Manufacturer
NOVOTECHNIK
SKU
1039954
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

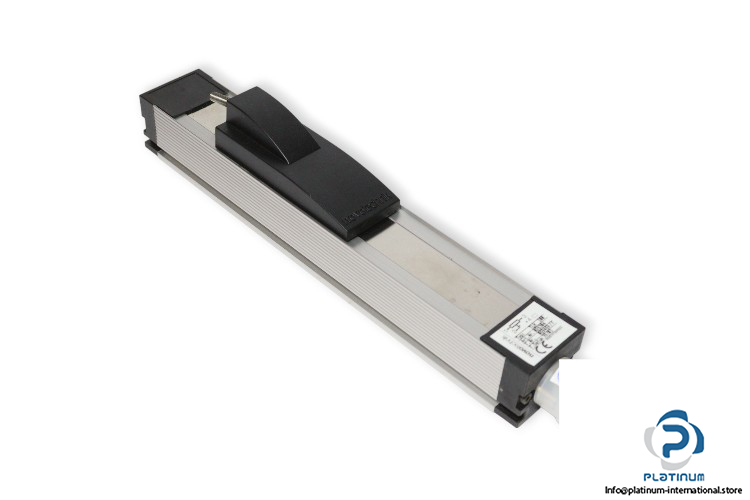

NOVOtechnik TLH100 Position Transducer Potentiometric

The NOVOtechnik TLH100 is a high-precision potentiometric position transducer designed for industrial applications. Featuring a robust anodized aluminum housing and a 102 mm electrical stroke, this transducer offers excellent linearity, repeatability, and a wide operational temperature range, ensuring reliable performance in demanding conditions.

Manufacturer: NOVOtechnik

Type: Position Transducers Potentiometric

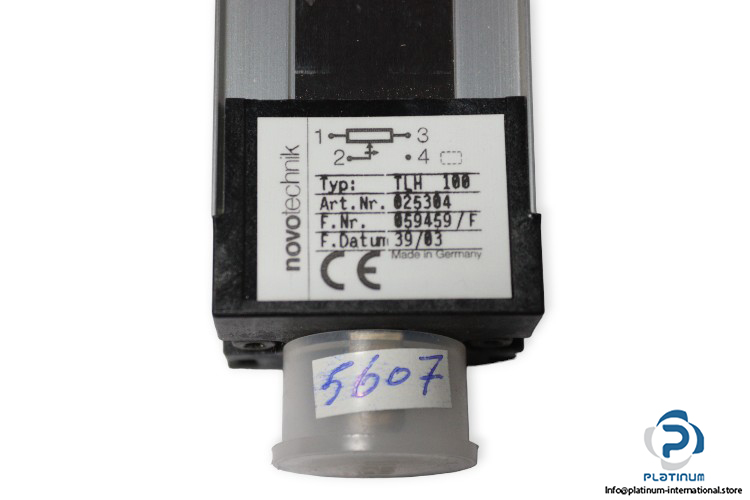

Model: TLH100

Part No.: 025304

F.No.: 059459/F

39/03

Technical Data:

  • Housing Material: Aluminium, Anodized
  • Operating Supply Voltage: 42 V
  • Resistance: 3 Kohm
  • Electrical Stroke: 102 mm
  • Resistance Tolerance: 20 ±%
  • Independent Linearity: 0.1 ±%
  • Repeatability: 0.01 mm
  • Maximum Wiper Current: 10 mA
  • Operating Temperature: -30 to 100 °C
