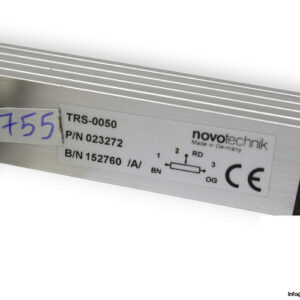

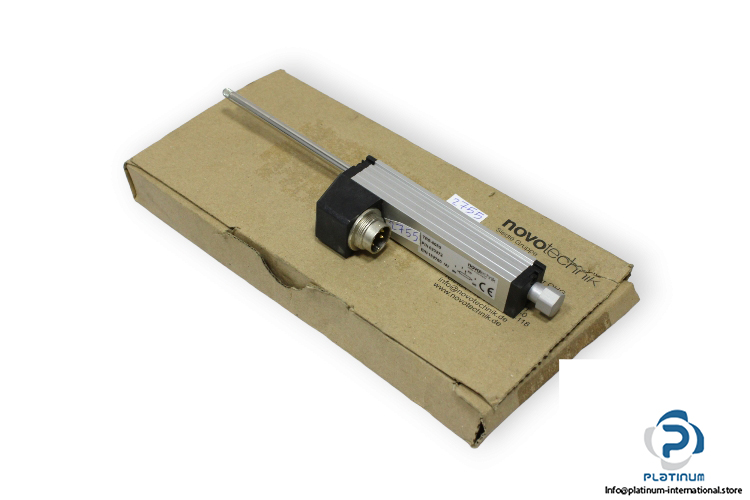

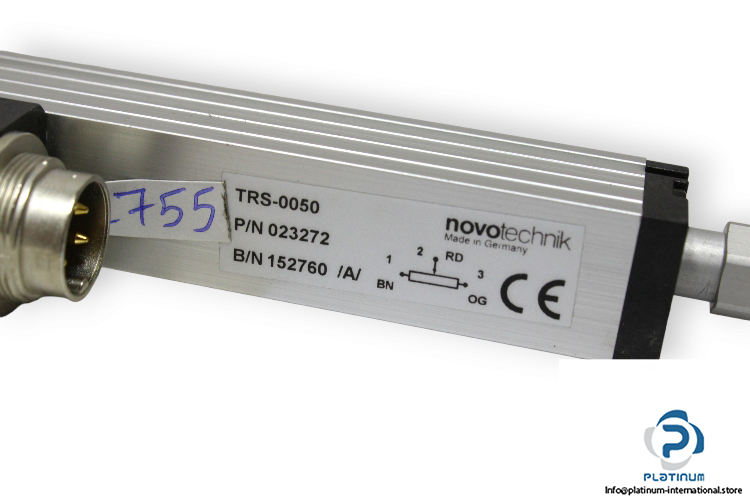

Novotechnik TRS-0050 Short Stroke Transducer Potentiometric

Novotechnik TRS0050 Short Stroke Transducer Potentiometric

The Novotechnik TRS0050 is a high-performance short stroke transducer designed for precise linear position measurement in industrial applications. With a 50 mm electrical stroke length and a nominal resistance of 5 kΩ, it offers excellent linearity and a wide operating temperature range, ensuring reliability in demanding environments.

Manufacturer: Novotechnik

Type: Short Stroke Transducer Potentiometric

Model: TRS0050

Part No.: 023272

Ref No.: 152760

Technical Data:

• Operating Voltage Max.: 42 V
• Linear Position Sensor Output: Voltage Divider
• Termination Type: Connector, 5-Pin
• Stroke Length “ Electrical: 50 mm
• Stroke Length “ Mechanical: 55 mm
• Nominal Resistance: 5 kΩ
• Displacement Speed: 10 m/s
• Mounting: Clamp Mount
• Linearity (±): 0.15 %
• Operating Temperature: -30 / +100°C
• Protection Rating: IP40
