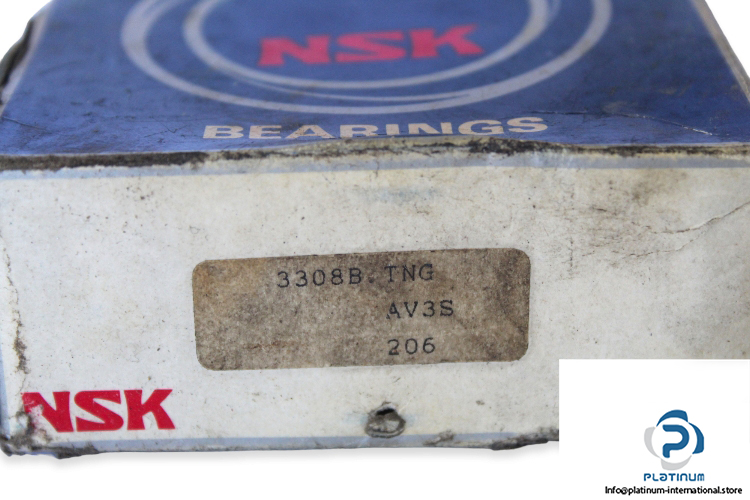

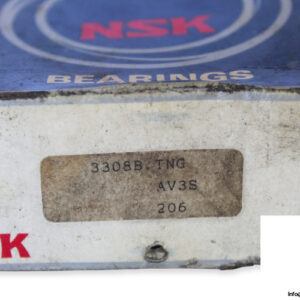

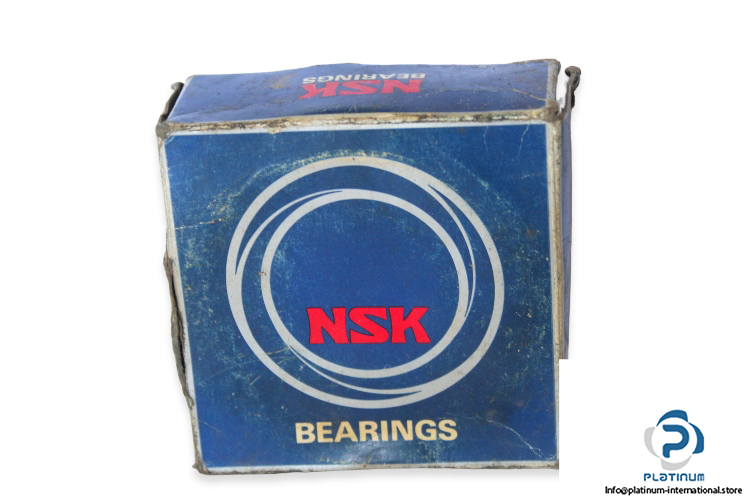

NSK 3308B.TNG Double ROW Angular Contact Ball Bearing
Manufacturer: NSK
Type: Double Row Angular Contact Ball Bearing
Model: 3308 B.TNG

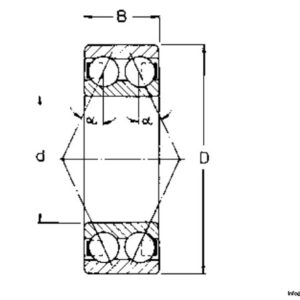

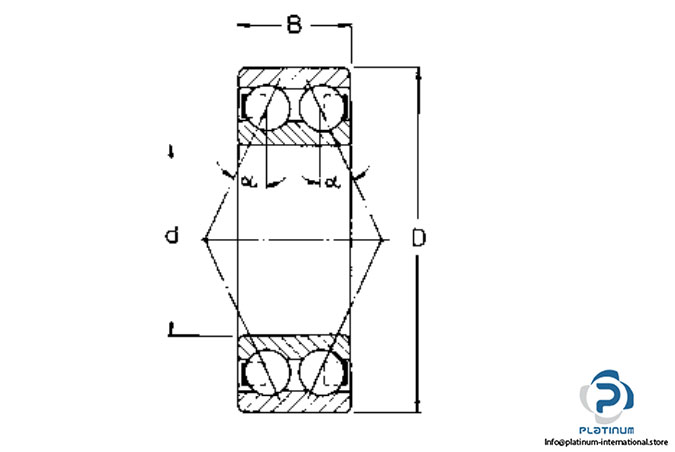

Dimensions
Bore Diameter d: 40 mm
Outer diameter D: 90 mm
Width B: 36.5 mm
Contact angle: 25 °
Basic load ratings, radial:
Dynamic Cr: 62000 N
Static C0r: 45000 N
Limiting speed:
Lubrication with Grease: 5000 rpm
Lubrication with Oil: 6700 rpm
